2000 Saturn SW2 AutomaticFACTORY OEM SERVICE PROCEDURE

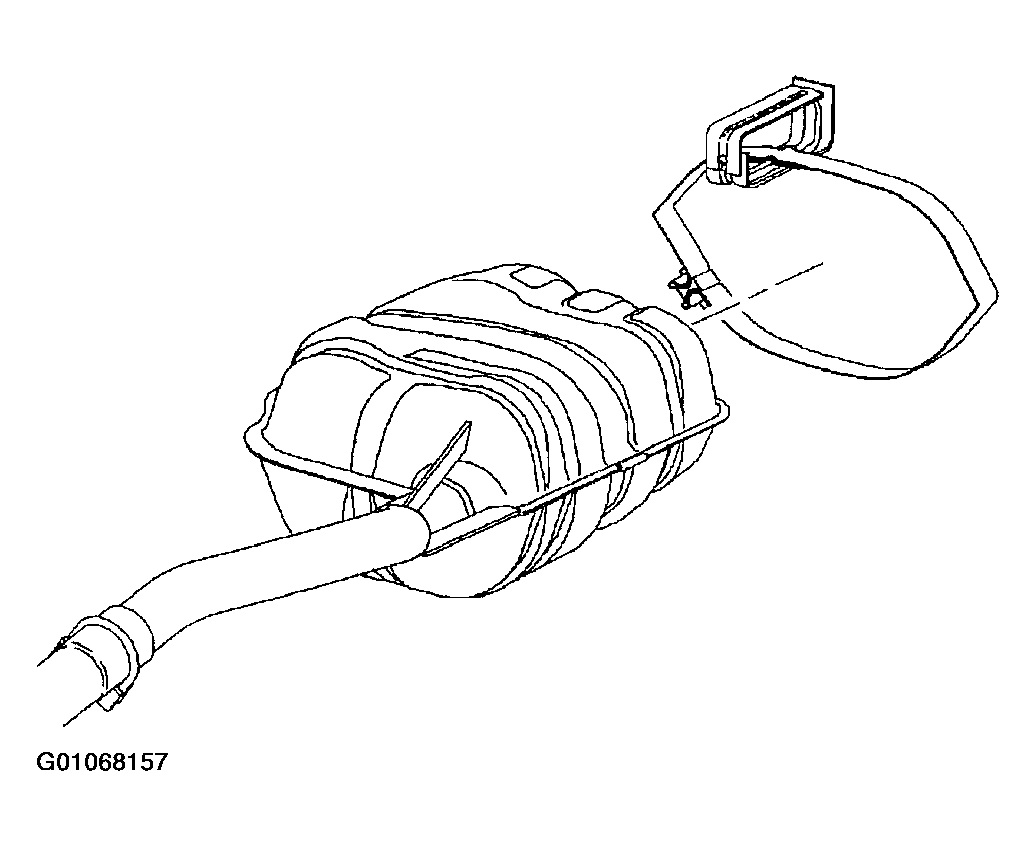

Muffler (Service Replacement): Installation
- Loosely install muffler clamp over service replacement muffler inlet.
- Load replacement muffler to vehicle, sliding muffler inlet pipe over cut section of intermediate pipe.
- Hold muffler in location to muffler strap and tighten clamp. Locate muffler strap between stamped channel in the muffler.
Torque:
Muffler Strap around Muffler: 22 N.m (16 ft-lbs)
