2000 Saturn SLFACTORY OEM SERVICE PROCEDURE

On The Ground

  1. Remove air cleaner inlet tubing from throttle body.
    CAUTION: FUEL SUPPLY LINES WILL REMAIN PRESSURIZED FOR LONG PERIODS OF TIME AFTER THE ENGINE IS SHUT DOWN. THIS PRESSURE MUST BE RELIEVED BEFORE SERVICING THE FUEL SYSTEM.
  2. Relieve pressure in fuel pressure at fuel pressure test port. Refer to RELIEVING FUEL PRESSUREΒ .

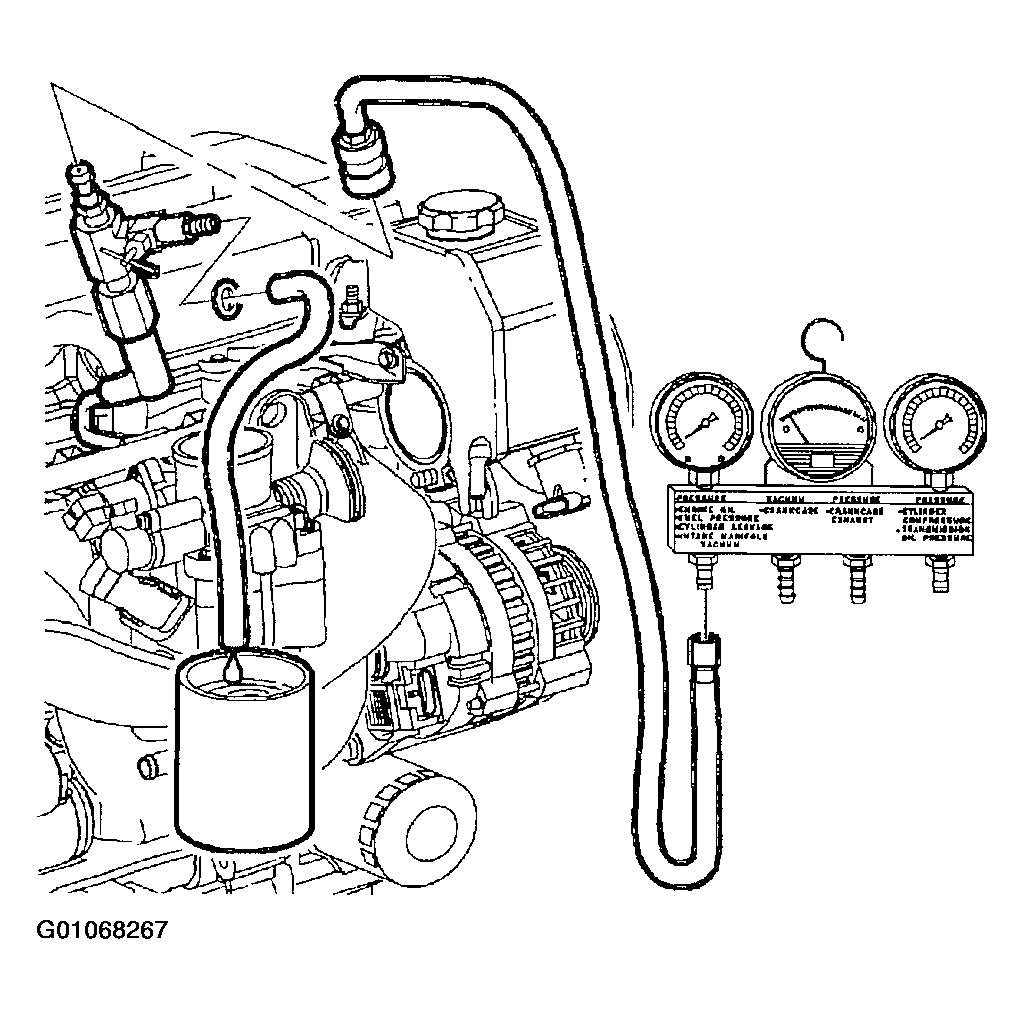

    Fig 1: Relieving Fuel Pressure
    G01068267Courtesy of GENERAL MOTORS CORP.
  3. Disconnect fuel feed line at fuel rail and install Gauge Bar Set SA9127E into fuel line.

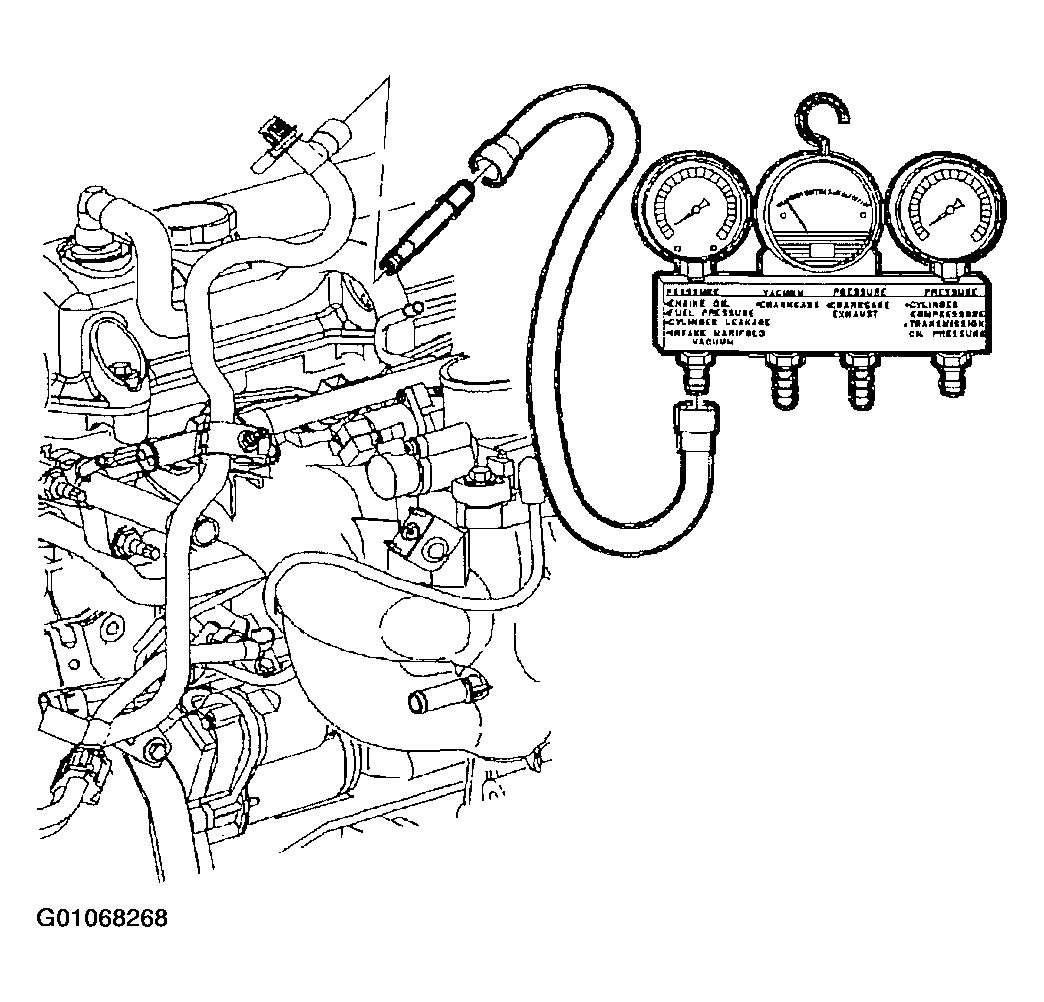

    Fig 2: Installing Gauge Bar Set (SA9127E)
    G01068268Courtesy of GENERAL MOTORS CORP.
