Input Shaft Assembly

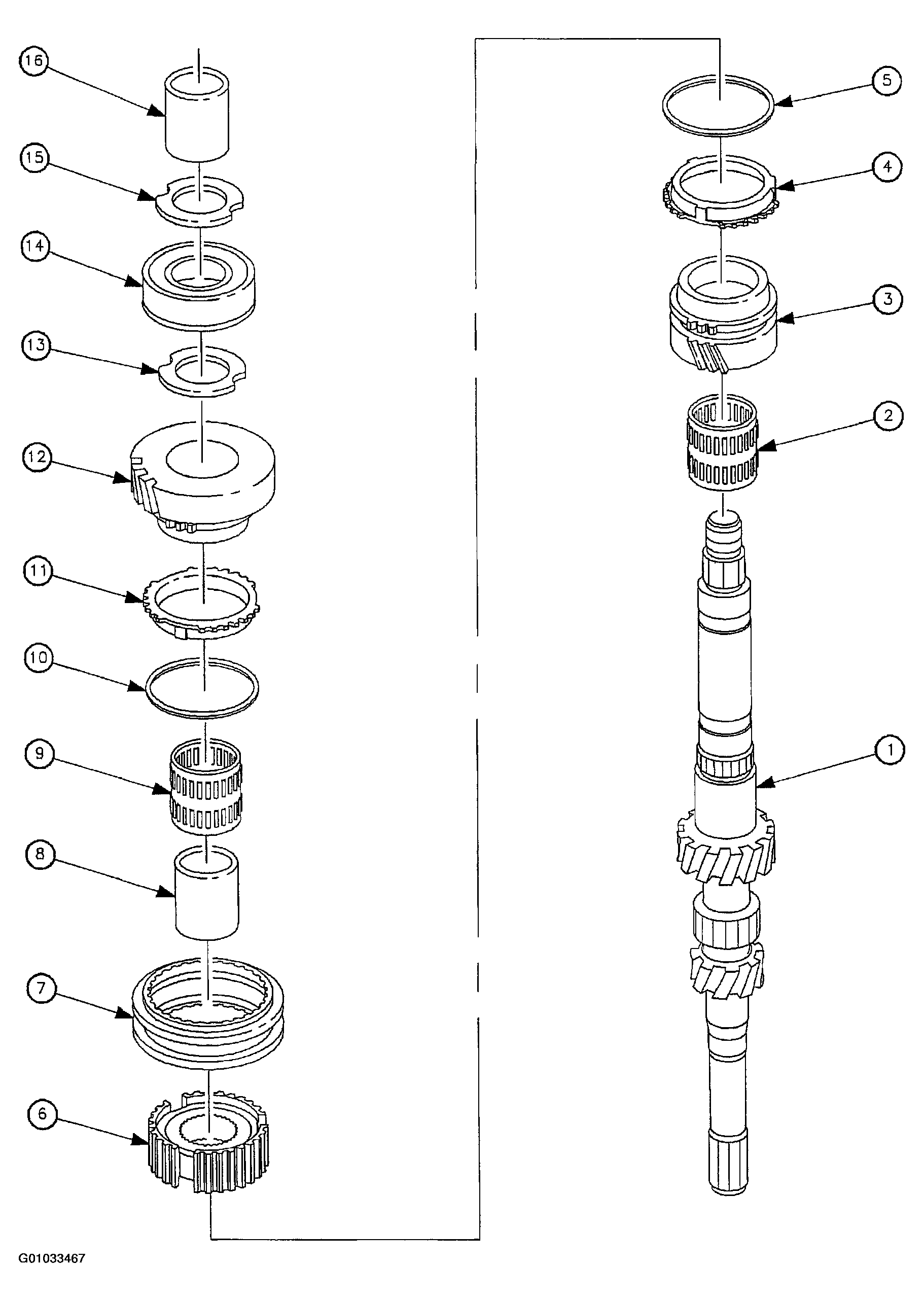

- Lubricate all rotating parts and bearings with Saturn Transaxle Fluid during assembly.
IMPORTANT: Soak new blocker rings in Saturn Transaxle Fluid for 15 minutes prior to installation.
- Install 3rd drive gear bearing (2).
- Install 3rd drive gear (3).
- Install 3rd gear synchronizer blocker ring (4).
- Install 3rd gear synchronizer spring (5) on 3rd blocker ring (4).

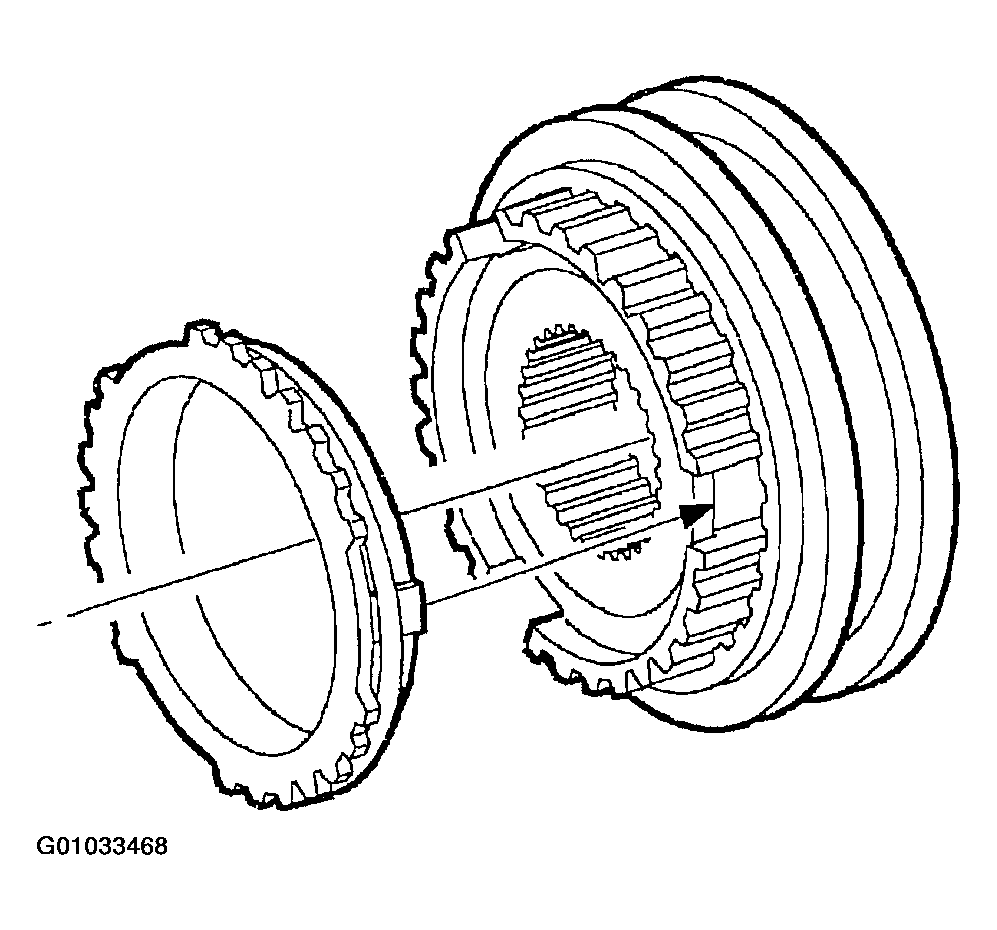

IMPORTANT: Be sure tabs on blocker ring (4) are aligned with slots on hub (6).
- Press on 3rd/4th gear synchronizer hub (6).
- Install 3rd/4th gear synchronizer sleeve (7).

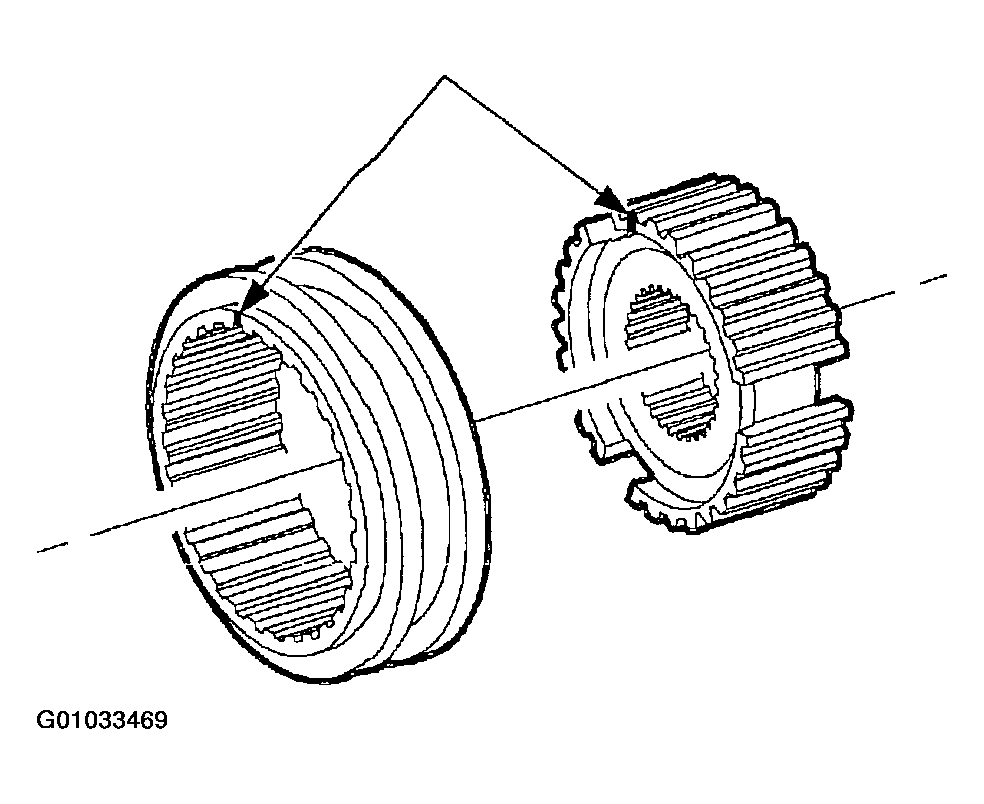

IMPORTANT: Be sure to align the mark on the sleeve (7) to the mark on the hub (6) as indicated by the arrows. Make sure alignment marks are facing up.
- Install the 3rd/4th input gear bearing race (8). To ease installation, warm bearing race with your hands or heat gun before installing.
- Install 4th drive gear bearing (9).
- Install the 4th gear synchronizer spring (10) on the 4th gear synchronizer blocker ring (11) and install assembly.
- Install 4th drive gear (12), hub side down.
- Install 4th input gear thrust washer (13).
- Press input shaft (ball) bearing (14) onto shaft with the snap ring groove down (toward 4th gear).
- Install 5th gear bearing inner-race (16) and thrust washer (15). Warm bearing race with your hands or heat gun before installing.
