All Models

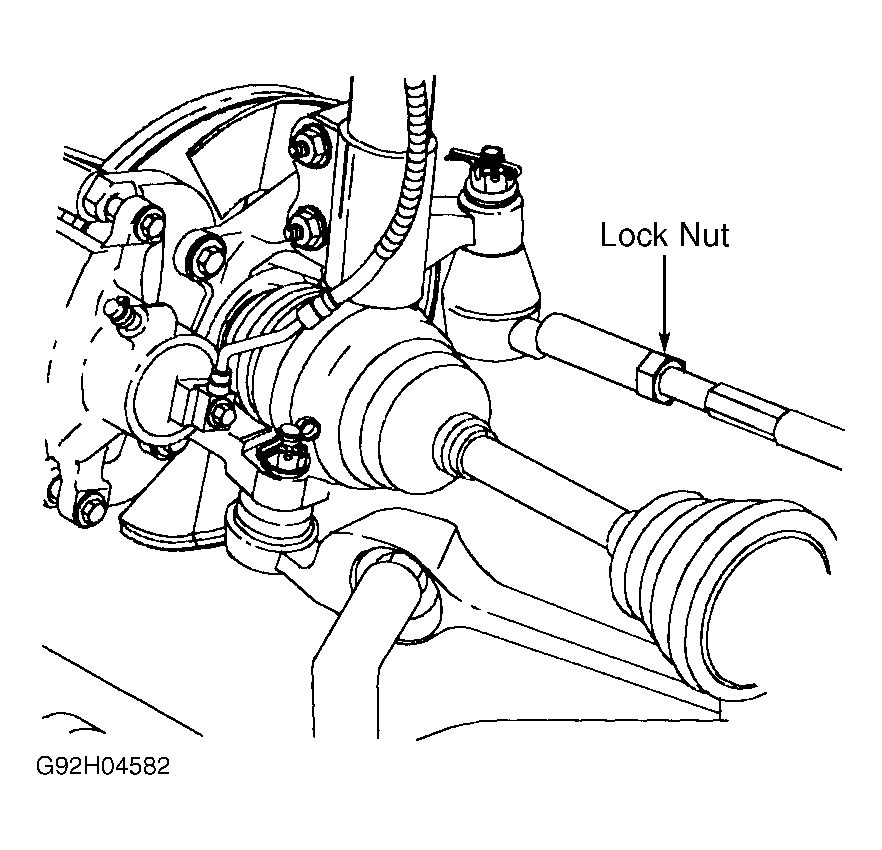

Lock steering wheel in straight-ahead position. Loosen tie rod end lock nut. See Fig 1 . Loosen steering gear dust boot clamp(s) at tie rod end. Turn tie rod end to obtain correct toe-in. Tighten lock nut to specification. See TORQUE SPECIFICATIONS . Ensure steering gear dust boot is straight after adjustment. Tighten dust boot clamp.
