2000 Saturn SLFACTORY OEM SERVICE PROCEDURE
Fuel Pump Module: Installation
NOTE:
If a new fuel pump module is being installed, make sure that fuel level sender is installed on module BEFORE installing into fuel tank.
- Inspect fuel tank and clean the fuel tank seal groove of any foreign debris and install a new seal.NOTE: The correct seal is green in color. Do not use the older black seal.

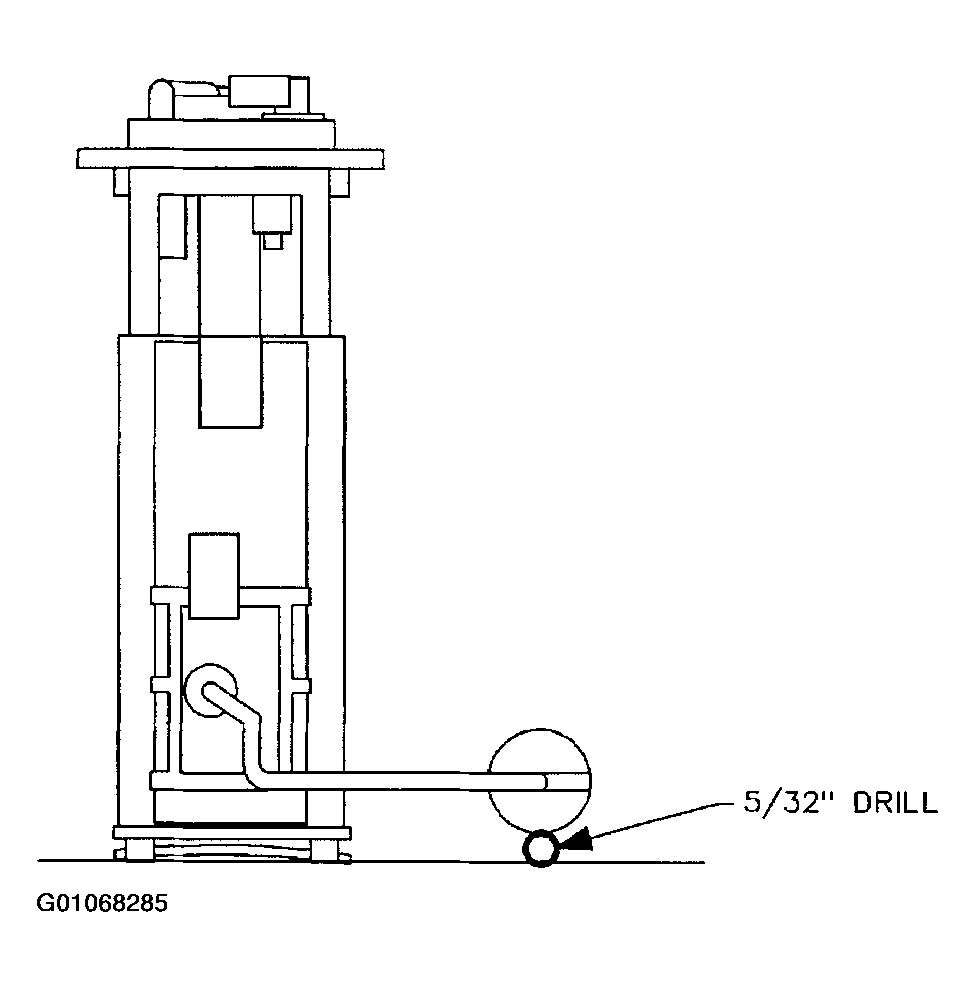

- Verify that the float arm on the fuel level sender has not been bent by standing the fuel pump module on a flat, horizontal surface and measuring the distance from this surface and the bottom of the float. A 5/32 in. diameter drill can be used as a gage. The gage must freely pass between the float and the horizontal surface with no more than 1/16 in. clearance.
