EVAP Emission Canister: Removal
The EVAP emissions canister is located in a molded cavity on the top of the vehicle fuel tank.
- Remove fuel filler pipe and fuel tank from vehicle. Refer to FUEL TANK .
- Disconnect the 5/8" 90° fuel tank vapor inlet hose fitting from the canister.
- Remove the EVAP canister retainer clip at the upper end of the canister.

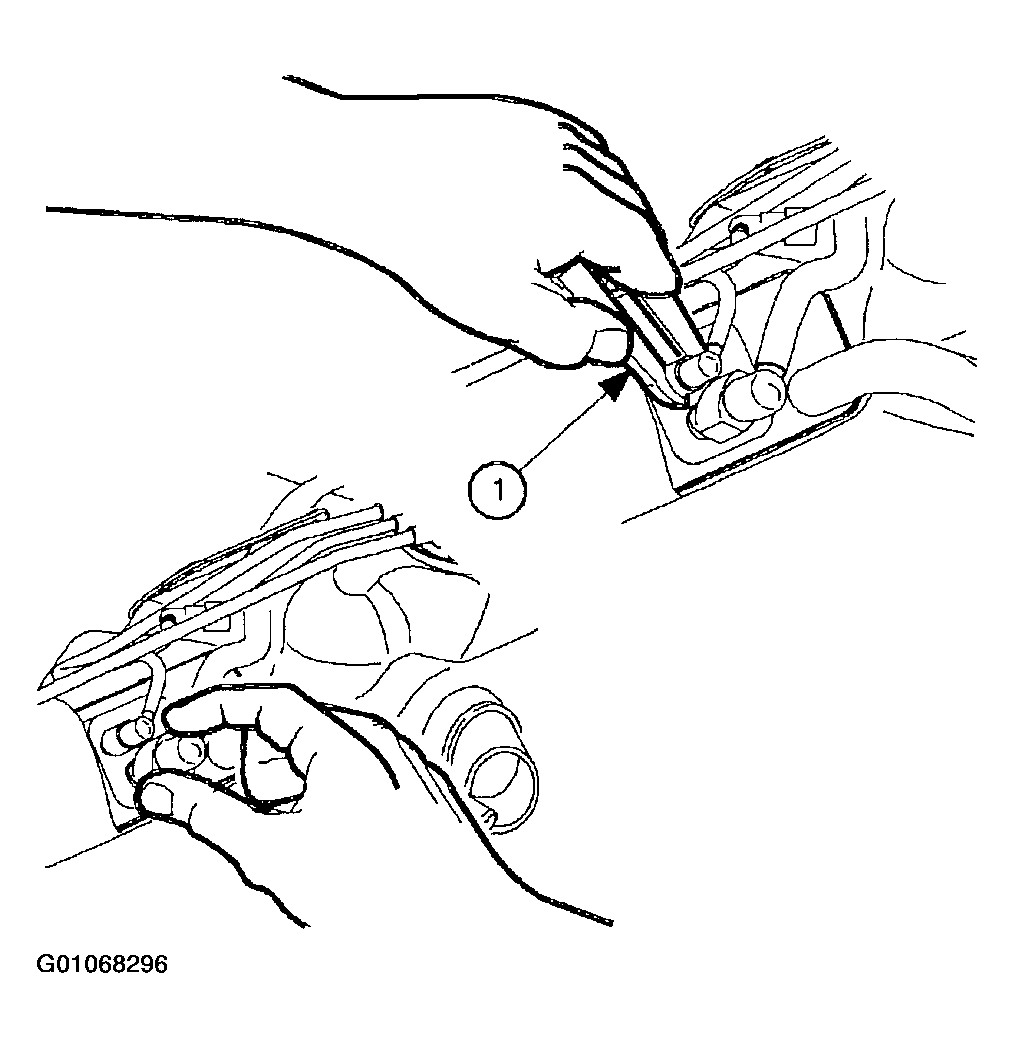

- Disconnect the 5/16" 90° fuel vapor/canister purge fitting from the canister (use Canister Purge Line Disconnect Tool SA9805E).
- Remove the canister from the fuel tank.
