2000 Saturn SC2 Automatic, MP6

Compression Check

2000 Saturn SC2 Automatic, MP6SECTION Compression Check

TOOLS REQUIRED: SA9127E Gauge Bar Set

If there is lack of power, excessive oil consumption, or poor fuel economy, etc., measure the compression pressure.

CAUTION: COMPRESSION CHECKS MUST BE PERFORMED WITH THE VEHICLE IN PARK OR NEUTRAL AND PARKING BRAKE APPLIED.

Start the engine and allow it to reach normal operating temperature.
Shut engine off and disconnect the ignition module connector.

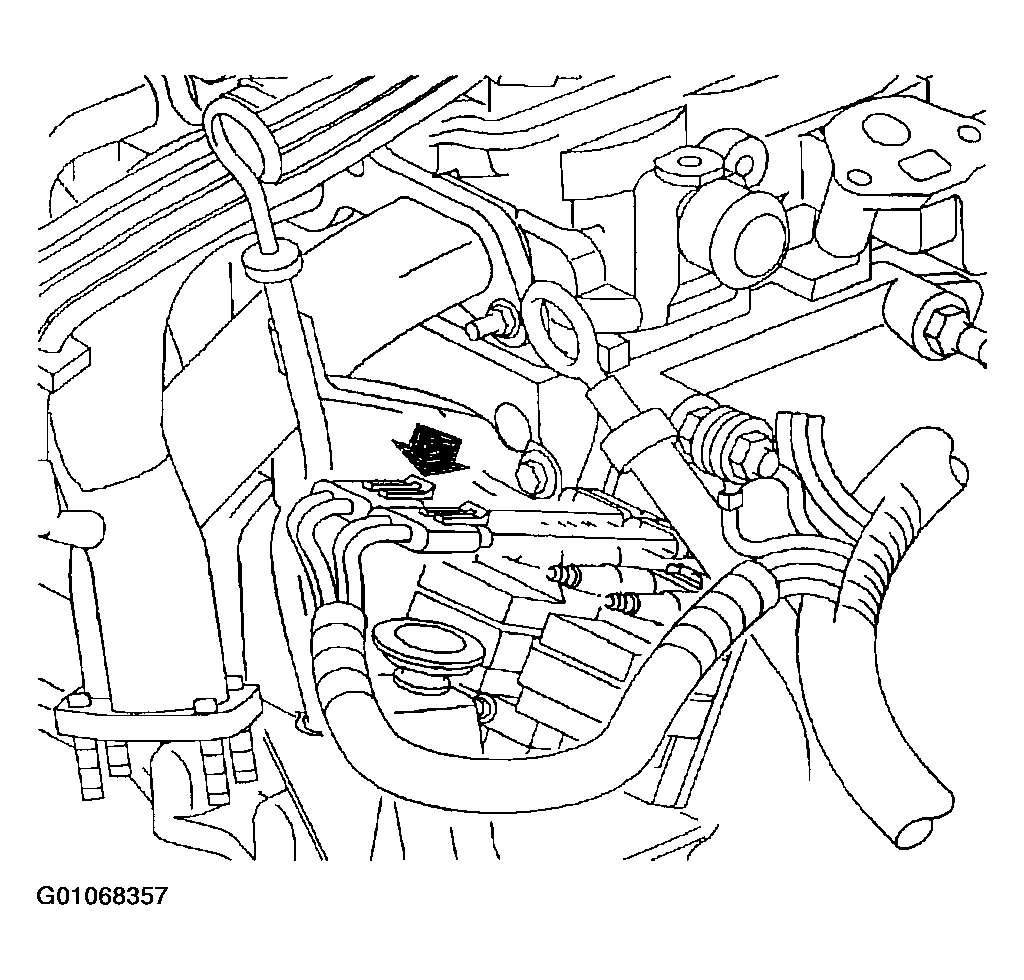

Fig 1: Ignition Module Connector
Courtesy of GENERAL MOTORS CORP.
Disconnect spark plug wires and remove all four spark plugs.
Insert a compression Gauge Bar Set SA9127E into the spark plug hole.
Fully open throttle.

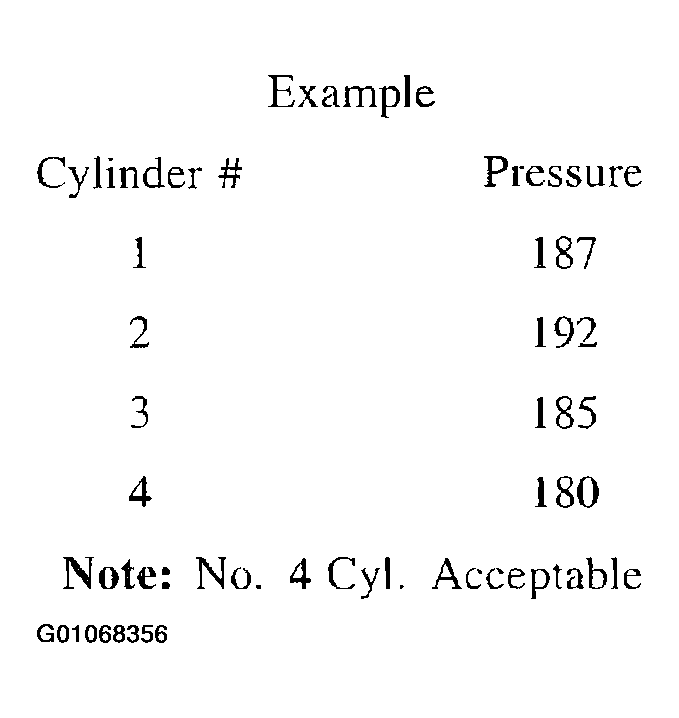

Fig 2: Cylinder Pressure Specifications
Courtesy of GENERAL MOTORS CORP.
