Sensing And Diagnostic Module (SDM) Connector Does Not Mate With Replacement SDM (Replace Terminal Retainer And Reprogram Body Control Module (BCM)) (01-T-20)
Reference number: 01-T-20
SENSING AND DIAGNOSTIC MODULE (SDM) CONNECTOR DOES NOT MATE WITH REPLACEMENT SDM (REPLACE TERMINAL RETAINER AND REPROGRAM BODY CONTROL MODULE (BCM))

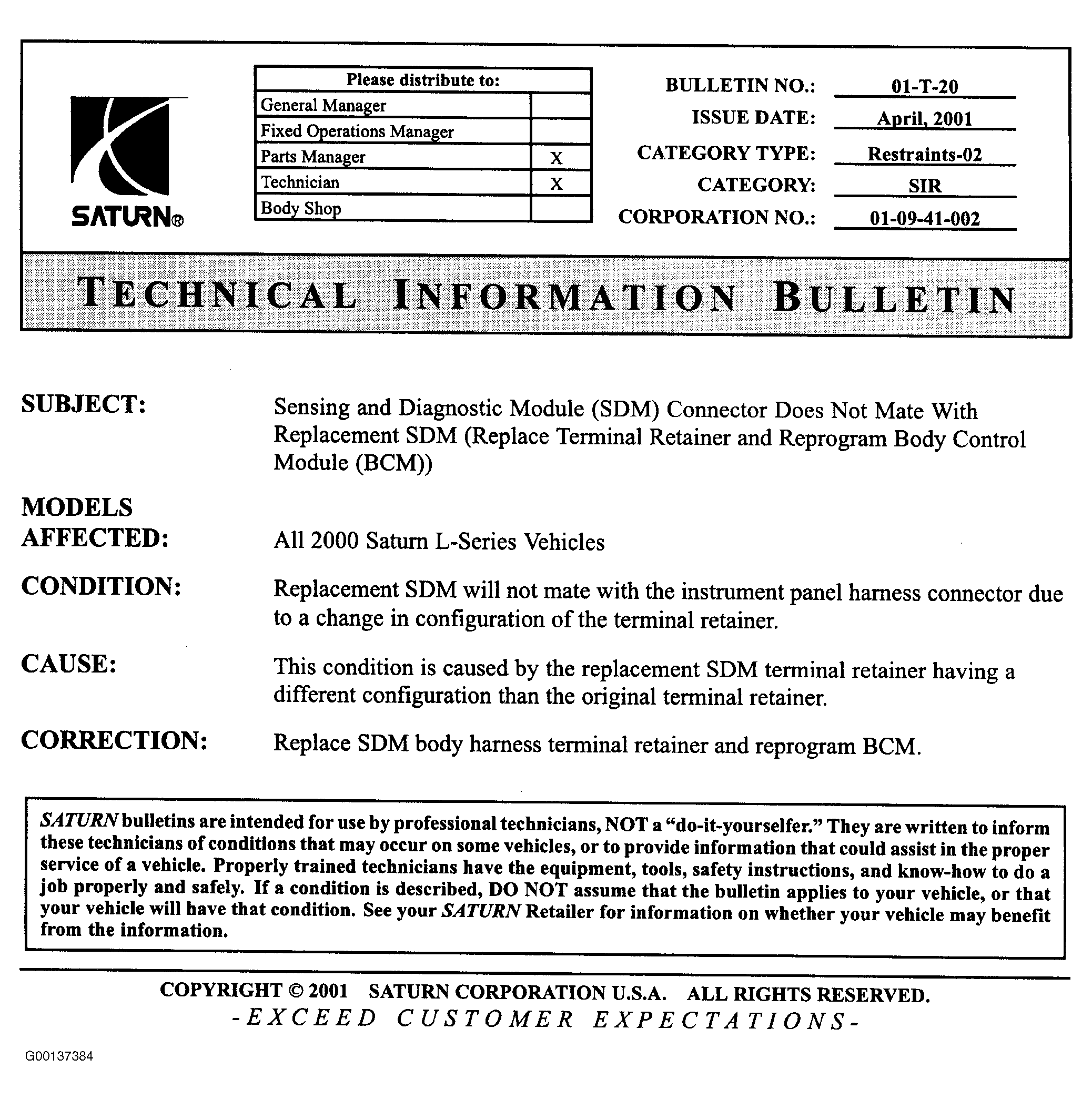

TECHNICAL SERVICE BULLETIN
| SATURN: | All 2000 L-Series Vehicles |
| SECTION: | 02-Restraints |
DESCRIPTION
Sensing And Diagnostic Module (SDM) Connector Does Not Mate With Replacement SDM (Replace Terminal Retainer And Reprogram Body Control Module (BCM))
Replacement SDM will not mate with the instrument panel harness connector due to a change in configuration of the terminal retainer.
BULLETIN CONTENT
