Component Locations
WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| Door Control Module (DCM) | Front Bottom Of Respective Door | ||

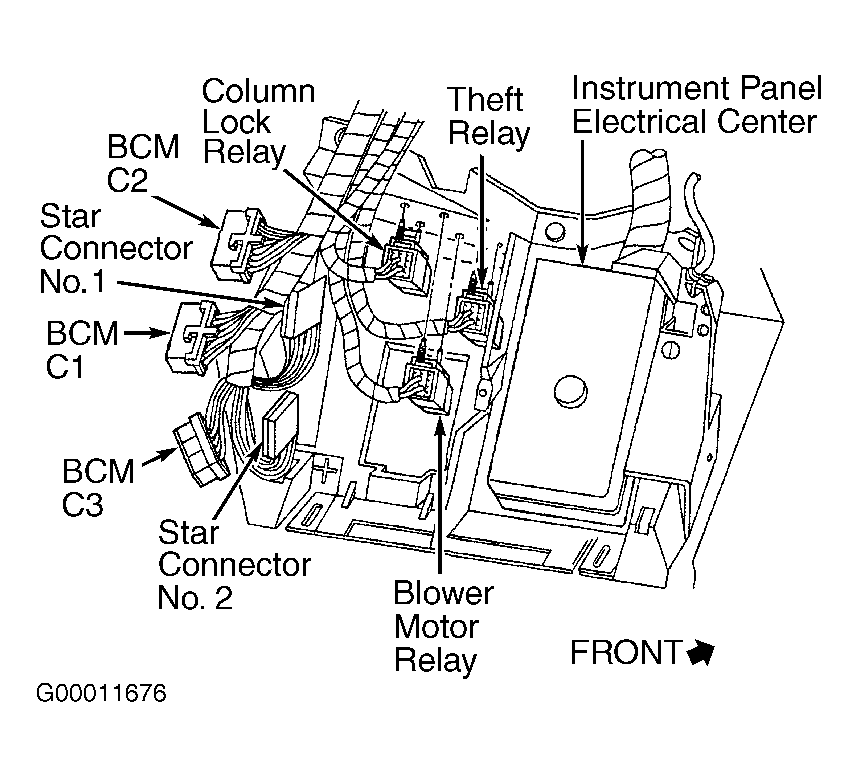

| Instrument Panel Electrical Center | (1) Top of Passenger Footwell, Behind Carpet | ||
| Seat Lower & Upper Motors | Part Of Adjuster Assembly, Under Respective Front Seat | ||
| Seat Control Module (SCM) | Under Driver's Seat | ||
| Seat Relay Center | Under Respective Front Seat | ||
| Telescoping Steering Column Motor | Lower Right Of Steering Column | ||
|
|||
