2000 Saturn LS1 L4-2.2L VIN FFACTORY OEM SERVICE PROCEDURE
Gearshift

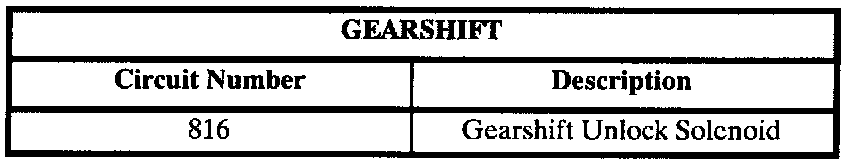

Circuit Chart:
CIRCUIT CHART
Circuit assignments for the Body Control Module (BCM) relating to gearshift:
GEARSHIFT UNLOCK
The gearshift unlock solenoid is energized by the BCM switching circuit 816 to ground. When energized, the gearshift unlock solenoid will allow shifting from PARK. A condition for shifting from PARK is that the foot brake must be applied. The BCM receives this information over the serial data link from the engine controller.
The BCM also monitors ignition 1 circuit 339 and ignition 2 circuit 743 to determine if the ignition switch is in the RUN or ACC position.
