2000 Saturn LS1 L4-2.2L VIN FFACTORY OEM SERVICE PROCEDURE
Splice Packs
IMPORTANT: Cavity references for slice packs on schematics may be different than the harness due to manufacturing constraints of the wire harness.

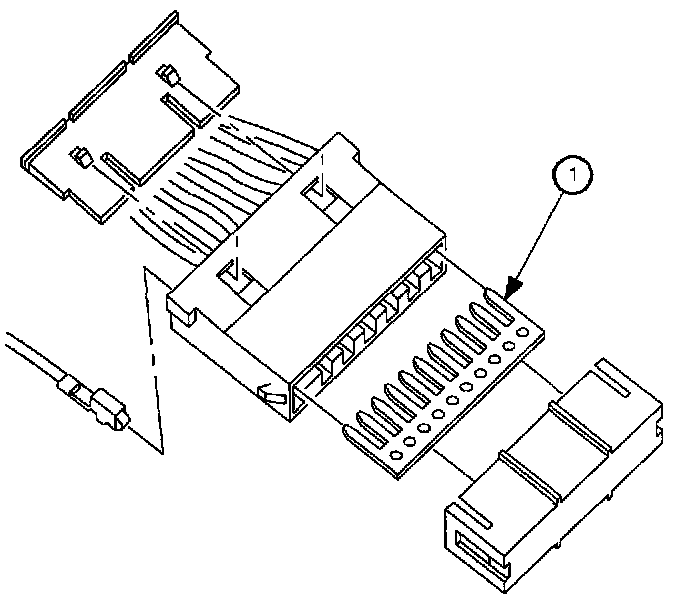

Splice packs are used to replace conventional soldering and clipped splices. The splice pack consists of a buss bar (1) with male blades that plug into a standard female crimp on terminal. A plastic cover is placed over the buss bar to insulate it from surrounding wires and the environment. This feature improves the reliability of splices.
Some of the grounding splice packs have an integral ring terminal as part of the buss bar. This way the splice pack can be directly connected to the vehicle body instead of using a wire to go from the splice pack to a ring terminal.
