2000 Saturn LS1 L4-2.2L VIN FFACTORY OEM SERVICE PROCEDURE

RKE Customer Programmable Content Theft Programming

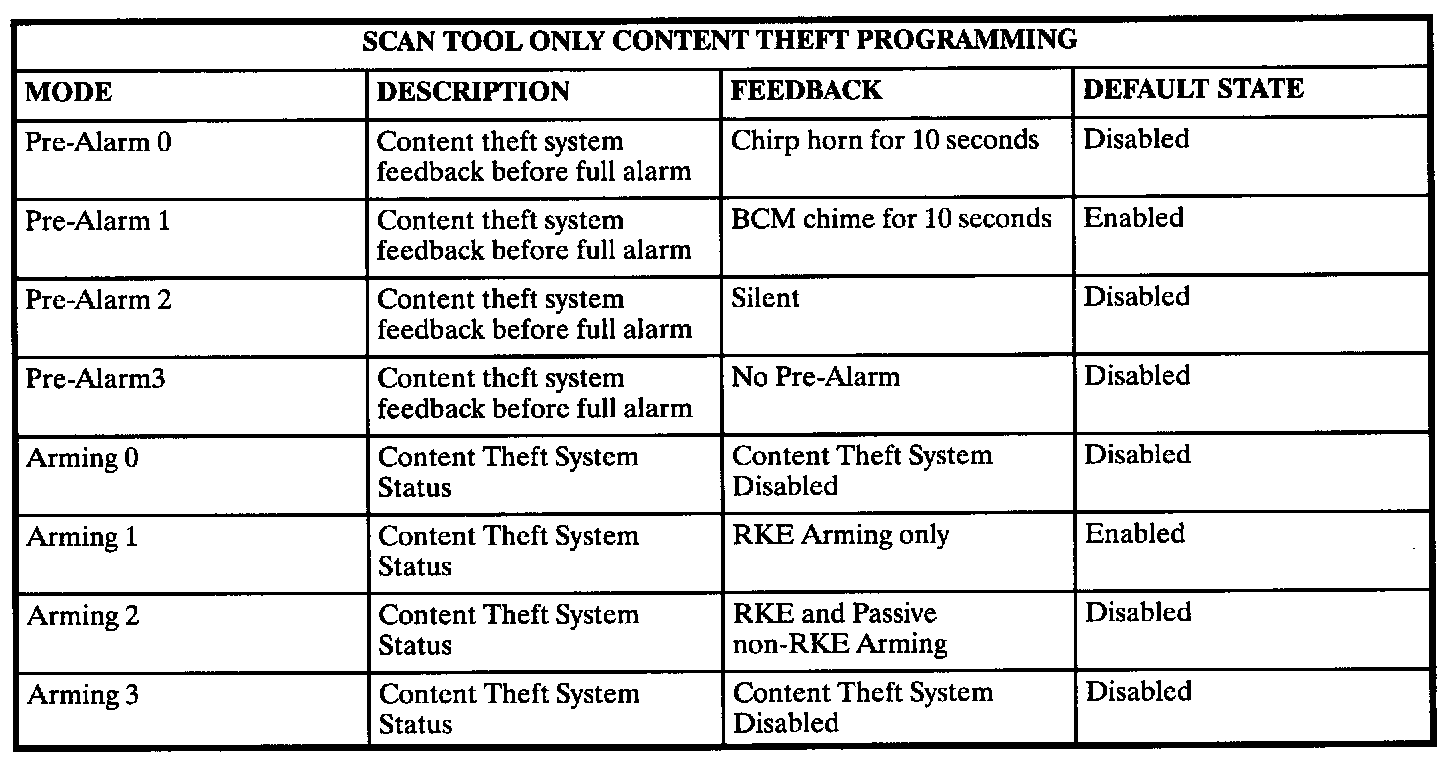

Factory service manual diagram

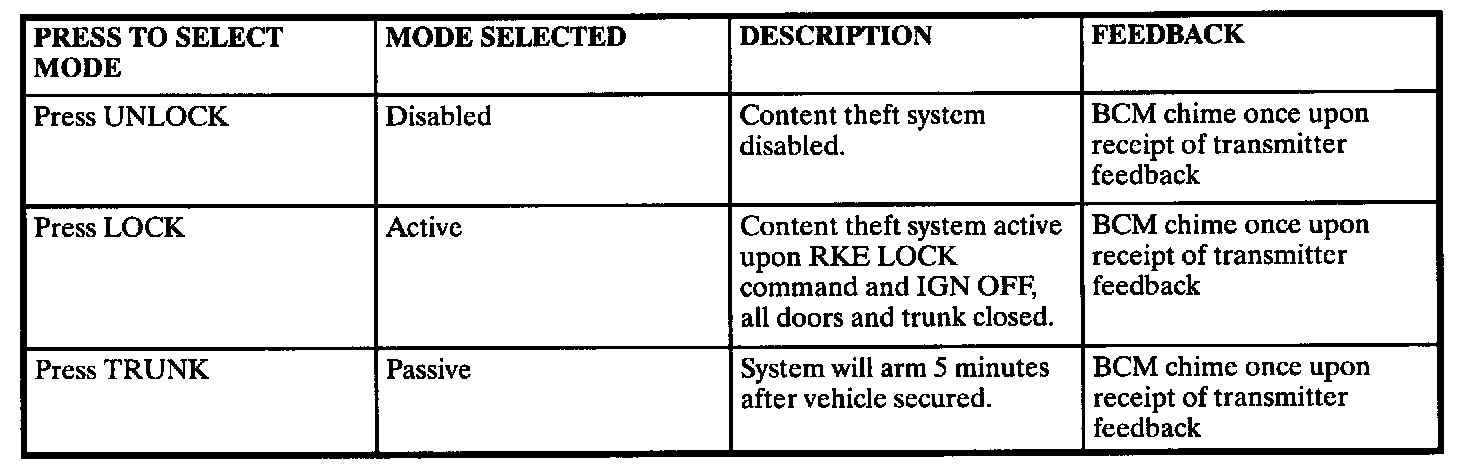

Factory service manual diagram



To enter programming mode:

Press PANIC button on transmitter four times in 5 Seconds with ignition On. BCM will chime notifying user they have entered the programming mode.

Then within 3 Seconds select mode by pressing LOCK, UNLOCK, OR TRUNK button.

Active - Content theft system will only be armed by using the transmitter to lock the doors.

Passive - Content theft system will arm 5 minutes after ignition is Off, all doors and trunk are closed. Any door open will reset 5 minute timer.

Disabled - No content theft system activated.
