2000 MODEL COVERAGE

MODEL

BODY CODE

ENGINE ⁽¹⁾

ENGINE ID

FUEL SYSTEM

IGNITION SYSTEM

Alero

2.4L (LD9)

SFI

IDI Magnetic

.....

3.4L (LA1)

SFI

DIS Magnetic

Bonneville

3.8L (L36)

SFI

C³ I Hall Effect

.....

3.8L (L67)

SFI ⁽²⁾

C³ I Hall Effect

Camaro

3.8L (L36)

SFI

C³ I Hall Effect

.....

5.7L (LS1)

SFI

DIS Magnetic

Catera

3.0L (L81)

SFI ⁽³⁾

DIS Magnetic

Cavalier

2.2L (LN2)

SFI

DIS Magnetic

.....

2.4L (LD9)

SFI

IDI Magnetic

Century

3.1L (LG8)

SFI

DIS Magnetic

Corvette

5.7L (LS1)

SFI

DIS Magnetic

DeVille

4.6L (LD8)

SFI

DIS Magnetic

.....

4.6L (L37)

SFI

DIS Magnetic

Eldorado

4.6L (LD8)

SFI

DIS Magnetic

.....

4.6L (L37)

SFI

DIS Magnetic

Firebird

3.8L (L36)

SFI

C³ I Hall Effect

.....

5.7L (LS1)

SFI

DIS Magnetic

Grand Am

2.4L (LD9)

SFI

IDI Magnetic

.....

3.4L (LA1)

SFI

DIS Magnetic

Grand Prix

3.1L (LG8)

SFI

DIS Magnetic

.....

3.8L (L36)

SFI

C³ I Hall Effect

.....

3.8L (L67)

SFI ⁽²⁾

C³ I Hall Effect

Impala

3.4L (LA1)

SFI

DIS Magnetic

.....

3.8L (L36)

SFI

C³ I Hall Effect

Intrigue

3.5L (LX5)

SFI

DIS Magnetic

LeSabre

3.8L (L36)

SFI

C³ I Hall Effect

Lumina

3.1L (LG8)

SFI

DIS Magnetic

Malibu

3.1L (LG8)

SFI

DIS Magnetic

Metro & Firefly (Canadian)

1.0L (LP2)

TBI

Magnetic

.....

1.3L (LY8)

MPI

DIS Magnetic

Monte Carlo

3.4L (LA1)

SFI

DIS Magnetic

.....

3.8L (L36)

SFI

C³ I Hall Effect

Park Avenue

3.8L (L36)

SFI

C³ I Hall Effect

.....

3.8L (L67)

SFI ⁽²⁾

C³ I Hall Effect

Prizm

1.8L (LV6)

SFI

DIS Magnetic

Regal

3.8L (L36)

SFI

C³ I Hall Effect

.....

3.8L (L67)

SFI ⁽²⁾

C³ I Hall Effect

Saturn ("L" Series)

2.2 (L61)

SFI

DIS Magnetic

.....

3.0 (L81)

SFI

DIS Magnetic

Saturn ("S" Series)

1.9L (L24)

SFI

DIS Magnetic

.....

1.9L (LL0)

SFI

DIS Magnetic

Seville

4.6L (LD8)

SFI

DIS Magnetic

.....

4.6L (L37)

SFI

DIS Magnetic

Sunfire

2.2L (LN2)

SFI

DIS Magnetic

.....

2.4L (LD9)

SFI

IDI Magnetic

⁽¹⁾	Engine code is stamped on engine block. See ENGINE CODE LOCATION .

⁽²⁾	Supercharged engine.

⁽³⁾	Variable multi-ram system.

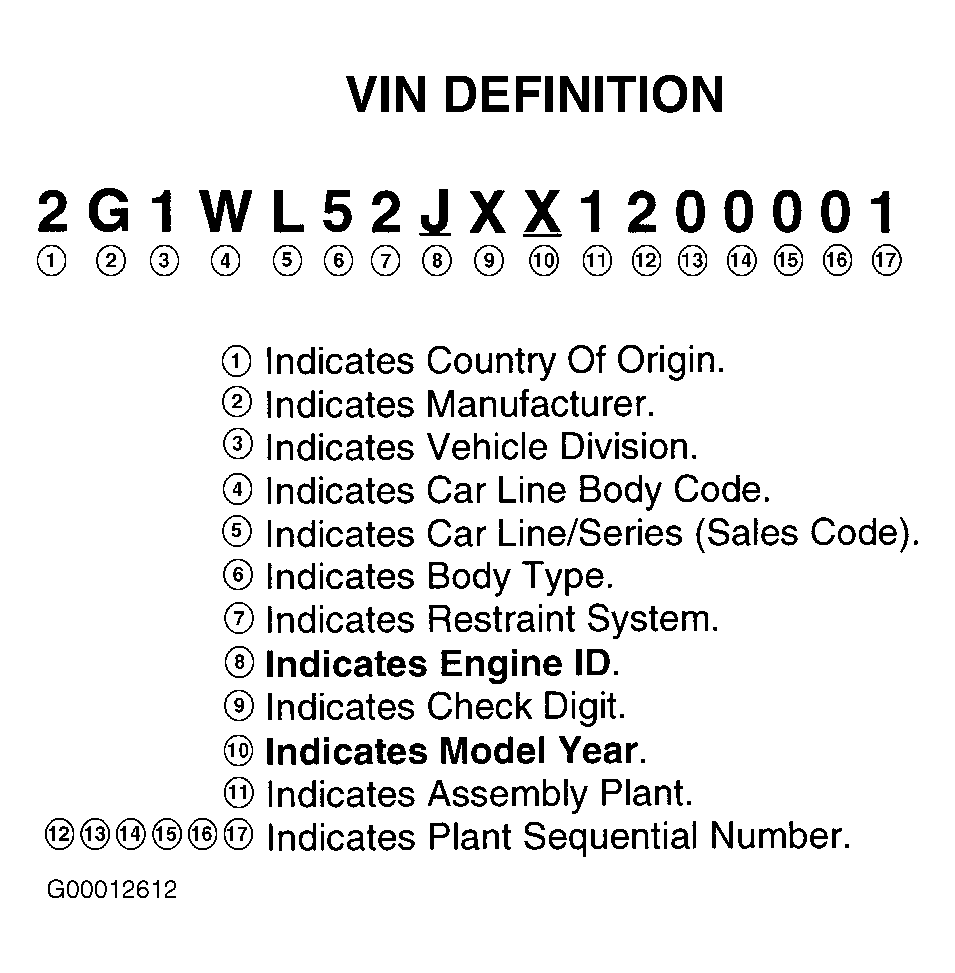

Fig 1: VIN Character Position & Definition

Courtesy of GENERAL MOTORS CORP.
