1999 Saturn SC2 L4-1.9L DOHC VIN 7FACTORY OEM SERVICE PROCEDURE
Removal
Remote Control Door Lock (RKE) Module Removal:

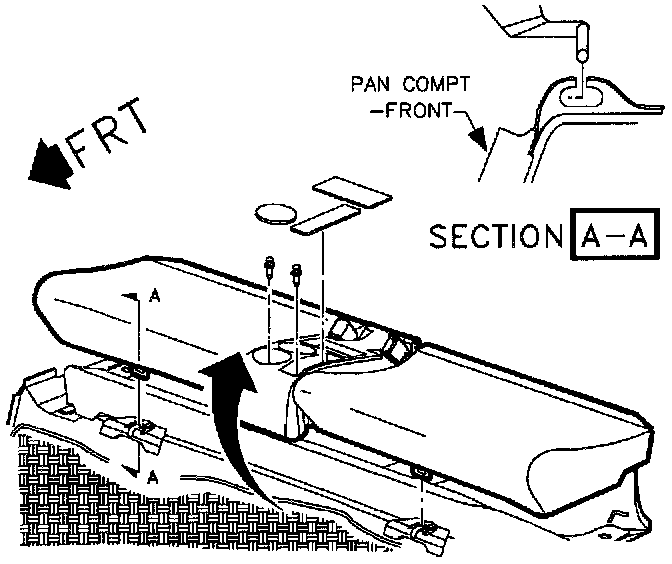

1. Remove rear seat console inserts.
2. Remove rear seat center console fasteners.
3. Disengage seat cushion by pushing rearward, then upward at two front retaining locations to release the rear cushion from the retainers.
4. Slide the cushion from under the seat back guiding the seat belt buckle through the seat cushion and remove the seat cushion.
Remote Control Door Lock (RKE) Module Removal:

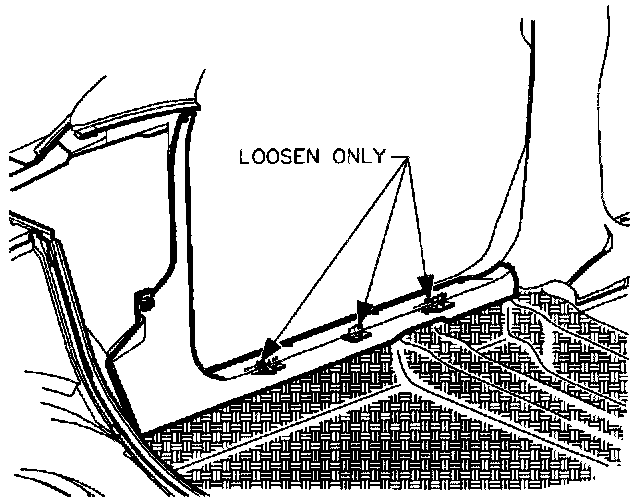

5. Pull firmly on right front lower garnish/sill molding to loosen clips.
Remote Control Door Lock (RKE) Module Removal:

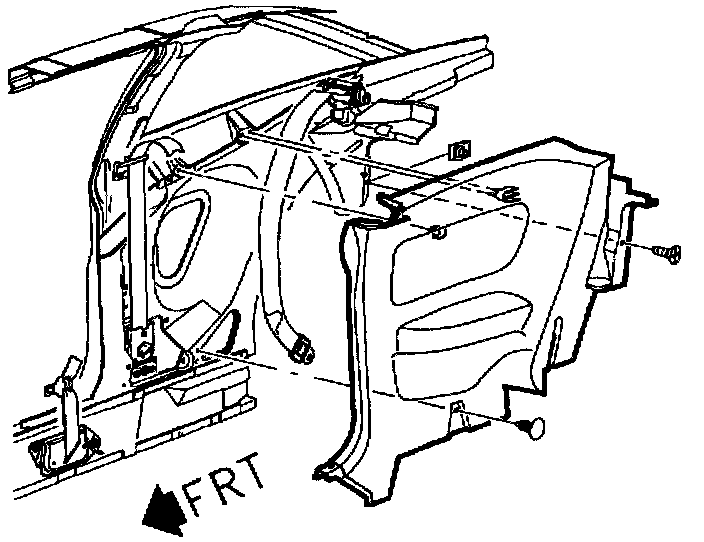

6. Lower rear seat back.
7. Remove right quarter trim panel fasteners.
8. Remove right quarter trim panel
Remote Control Door Lock (RKE) Module Removal/Installation:
9. Disconnect Remote Control Door Lock (RKE) module connector.
10. Pull firmly on remote control door lock (RKE) module from the top to bottom, to disengage double side tape retainer.
11. Remove remote control door lock (RKE) module.
