1999 Saturn SC2 L4-1.9L DOHC VIN 7FACTORY OEM SERVICE PROCEDURE
Installation
Remote Control Door Lock (RKE) Module Removal/Installation:

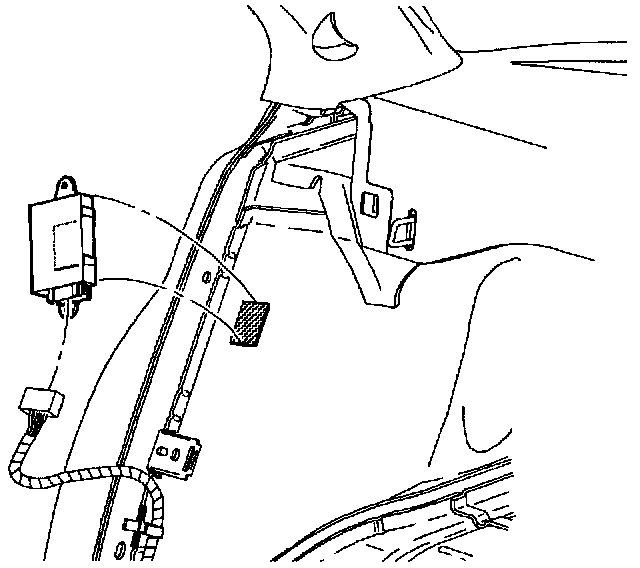

1. Install Remote Control Door Lock (RKE) module.
2. Connect electrical connector.
Remote Control Door Lock (RKE) Module Installation:
3. Install right quarter trim panel.
4. Install right quarter trim panel fasteners.
5. Raise rear seat back.
Remote Control Door Lock (RKE) Module Installation:

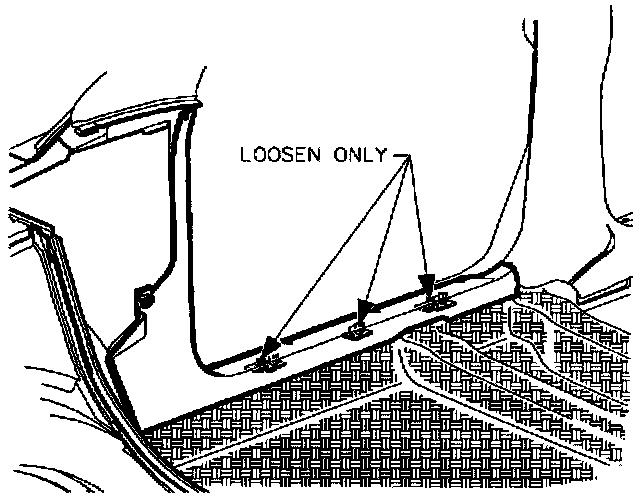

6. Position right front lower garnish/sill molding to vehicle and push at clip locations.
Remote Control Door Lock (RKE) Module Installation:

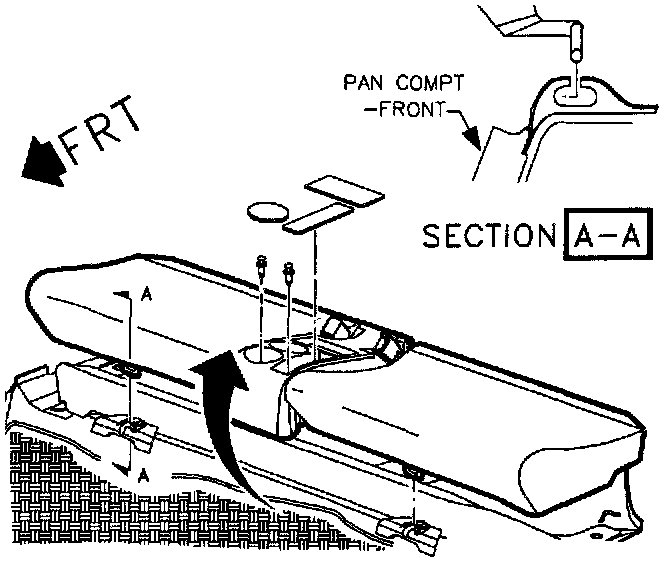

7. Position rear edge of rear seat cushion onto rear compartment ramp. Route seat belt buckles through rear seat cushion opening. Make sure that the seat belts are not twisted or that the buckles are not stuck beneath the rear seat cushion.
8. Align retaining rod of seat frame wire with rear compartment lower retainers.
9. Push rearward and down on the rear seat cushion to secure wire frame assembly.
10. Pull up on cushion to verify that it is securely fastened into place.
11. Install rear seat center console fasteners and inserts.
