1997 Saturn SW1 AutomaticFACTORY OEM SERVICE PROCEDURE
Manifold Absolute Pressure (Map) Sensor

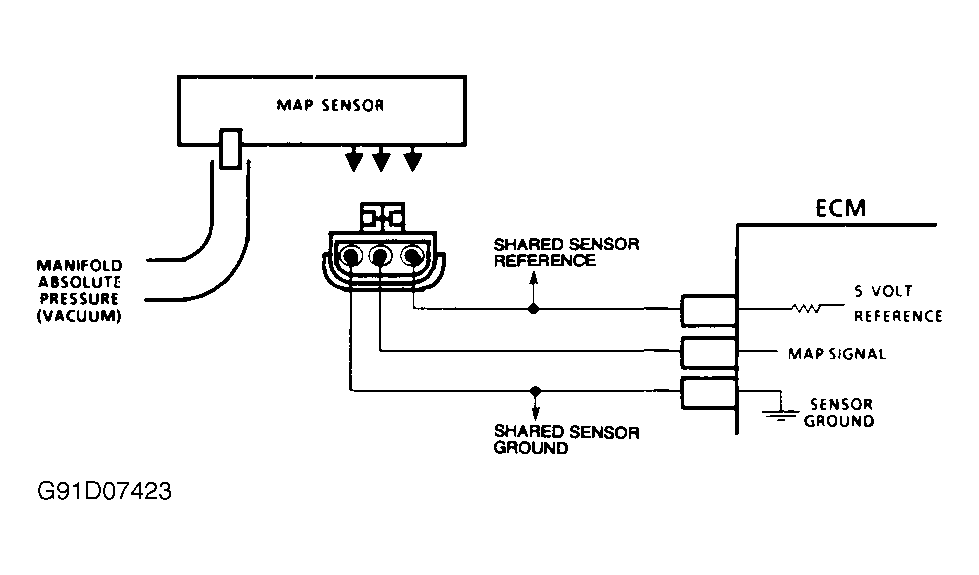

- A malfunction in the MAP sensor circuit should set a related Diagnostic Trouble Code (DTC) in PCM memory. If a DTC is present, see the TESTS W/CODES article. An out-of-calibration sensor may not set DTC. Use following procedure to test sensor calibration. If driveability problems exist, MAP sensor failure is suspected and no MAP code is present, disconnect MAP sensor connector. See Fig 1. If driveability condition improves, replace MAP sensor.
- With ignition on and engine off, check MAP sensor parameter using a scan tool connected to Data Link Connector (DLC). Voltage should be as specified. See MAP SENSOR VOLTAGE RANGE table. If MAP sensor voltage is as specified, go to step 3). If voltage is not as specified, check for 5-volt reference supplied to sensor. Check harness integrity. If no problems are evident, replace MAP sensor.
- Using a hand-held vacuum pump, apply 10 in. Hg to MAP sensor, and note voltage change. Voltage should drop about 1.2-2.3 volts less than as specified in table. If voltage is not as specified or voltage reading does not immediately follow vacuum change, MAP sensor is faulty.
MAP SENSOR VOLTAGE RANGE
| Altitude (Ft.) | Volts |
|---|---|
| Below 1000 | 3.8-5.5 |
| 1000-2000 | 3.6-5.3 |
| 2000-3000 | 3.5-5.1 |
| 3000-4000 | 3.3-5.0 |
| 4000-5000 | 3.2-4.8 |
| 5000-6000 | 3.0-4.6 |
| 6000-7000 | 2.9-4.5 |
| 7000-8000 | 2.8-4.3 |
| 8000-9000 | 2.6-4.2 |
| 9000-10,000 | 2.5-4.0 |
