1996 Saturn SW1 AutomaticFACTORY OEM SERVICE PROCEDURE
Connector Identification
NOTE:
All connectors shown are harness connector views. Selector switch is also known as neutral switch or Park/Neutral Position (PNP) switch.
CONNECTOR IDENTIFICATION DIRECTORY
| Description | Illustration |
|---|---|

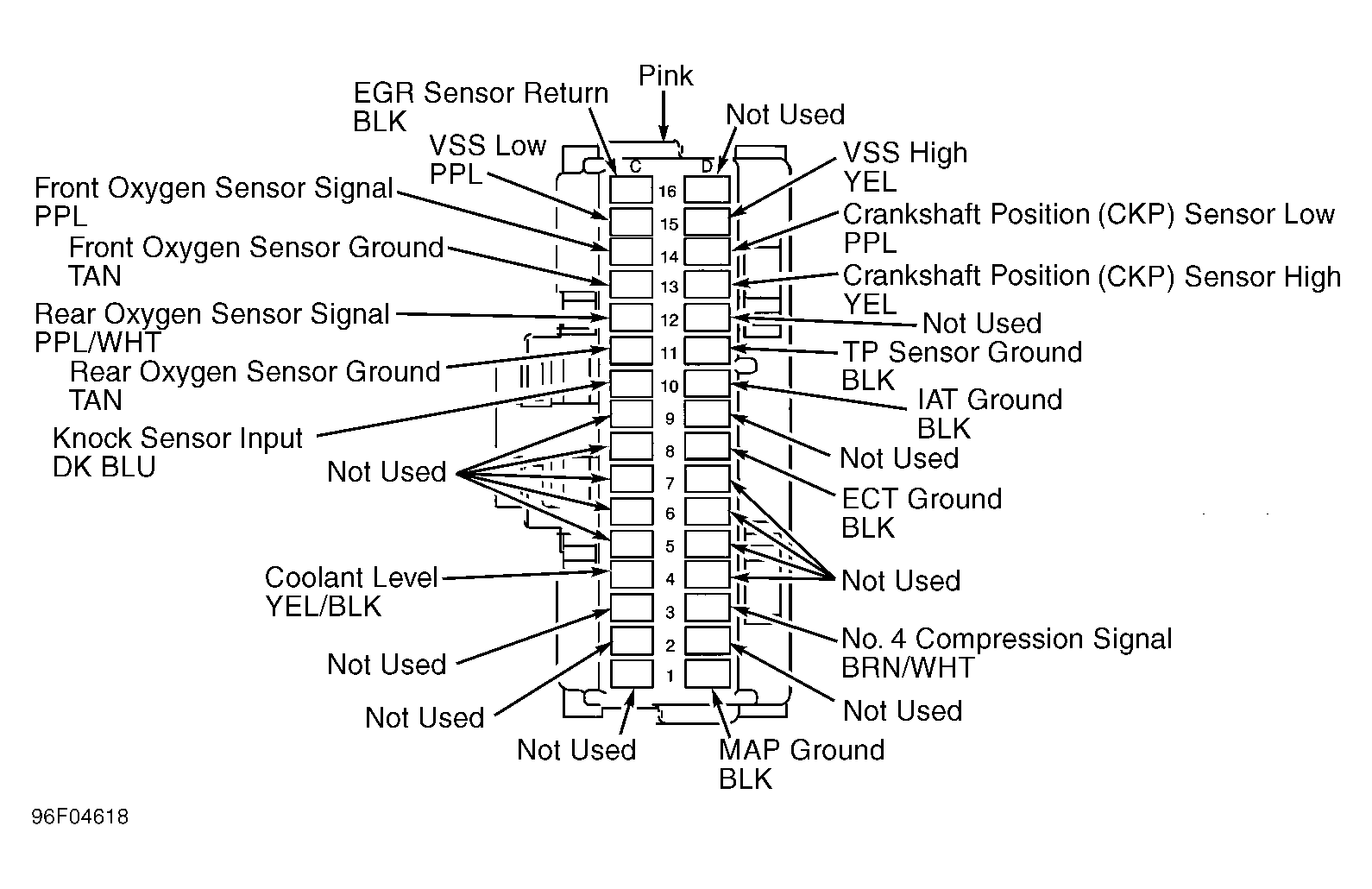

| Powertrain Control Module | See Fig 1 and Fig 2 |
| Park/Neutral Position Switch | See Fig 3 |
| Transaxle Actuators | See Fig 4 |
| Transaxle Temperature Sensor | See Fig 5 |
| Turbine Speed Sensor | See Fig 6 |
| Vehicle Speed Sensor | See Fig 6 |
