1992 Saturn SL2 AutomaticFACTORY OEM SERVICE PROCEDURE
Diagnostic Aids
WARNING:
When replacing motor pack, DO NOT place hands near motor pack modulator gears. Gears may have enough preload tension to cause personal injury.

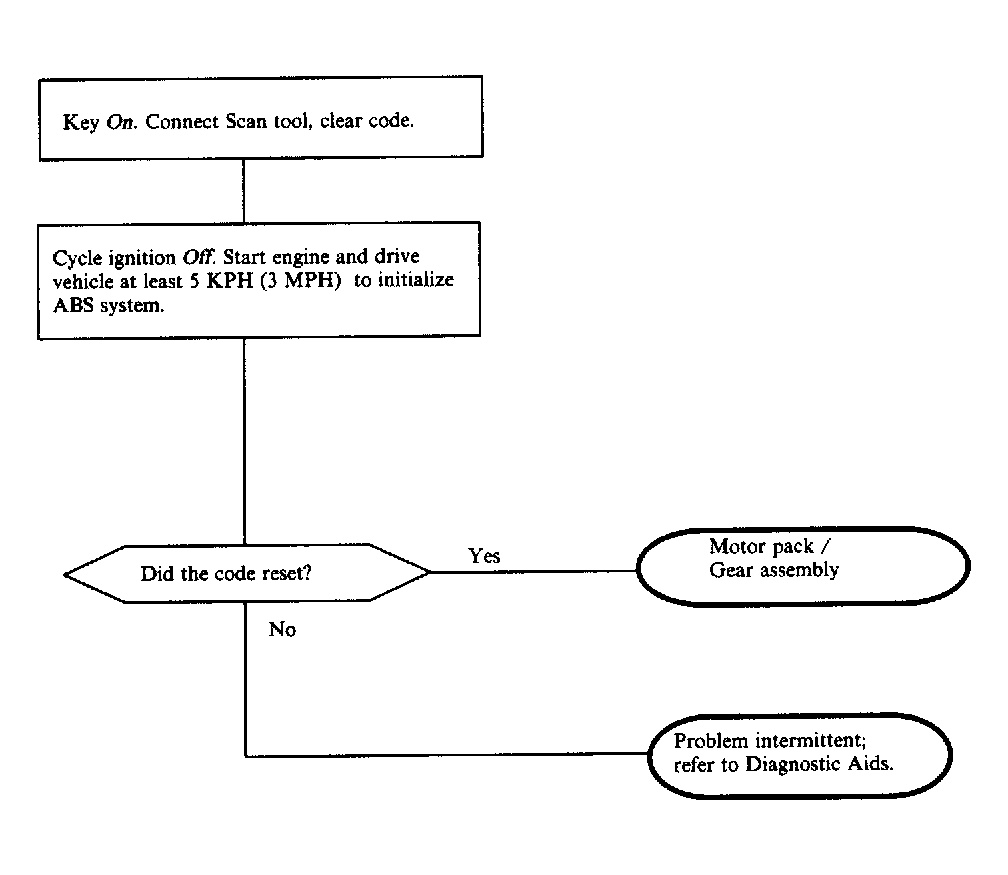

- Connect "Scan" tester. Perform ABS motor tension release special test before removing motor pack.
- ABS will initialize when vehicle is driven at least 3 MPH (5 km/h).NOTE: System initialization alternates between left front/rear and right front/rear with each ignition cycle.
- When diagnosing intermittent problems, select MALF HISTORY from "Scan" tester ABS menu. Supplemental data can be used to duplicate problem.
