1992 Saturn SL2 AutomaticFACTORY OEM SERVICE PROCEDURE
Power Window Motor: Removal

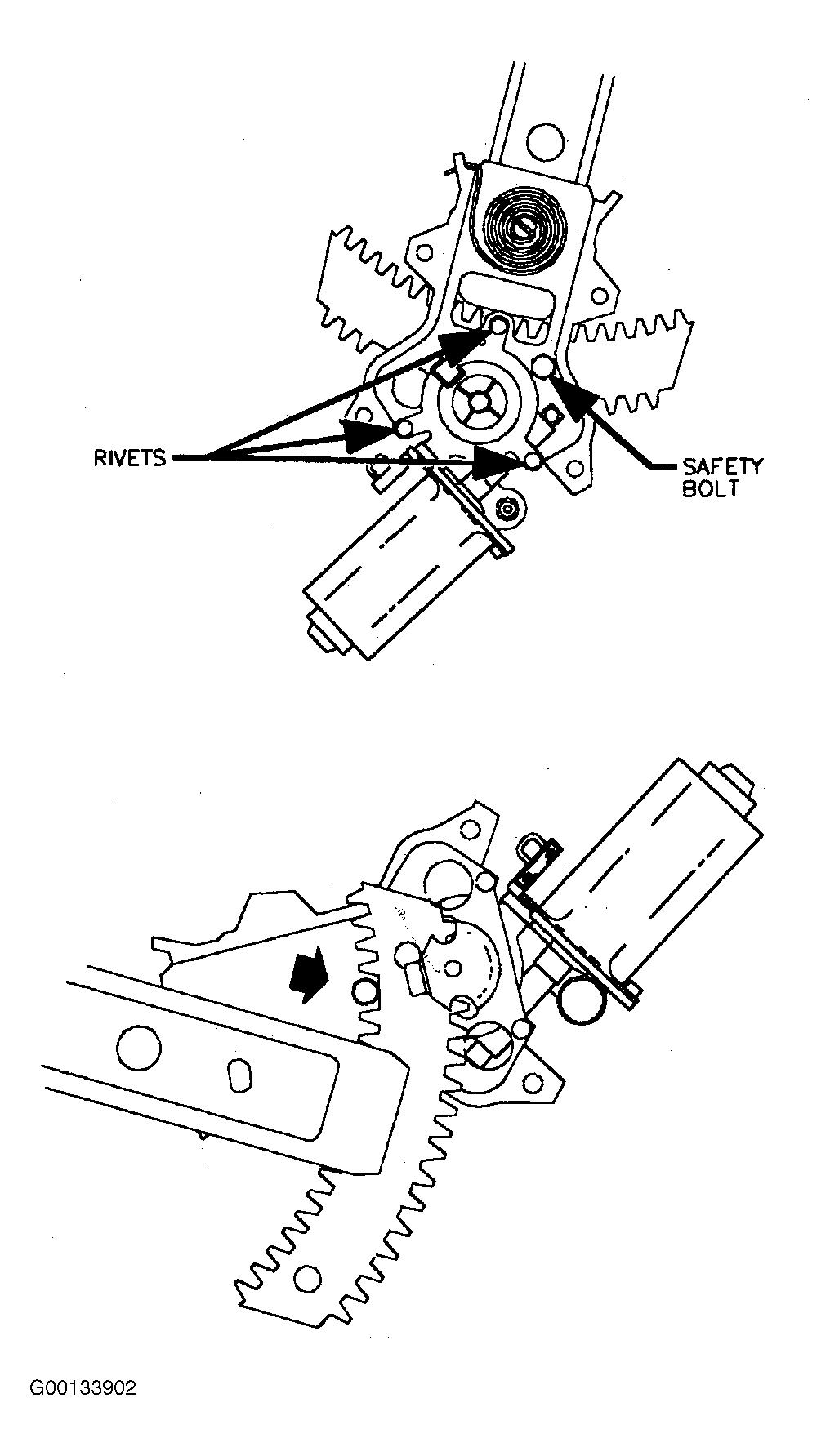

- Remove regulator. See WINDOW REGULATOR .
- Drill a hole through the regulator sector gear and bookplate. Install a bolt and nut to lock sector gear in position. Do not drill the hole closer than 7/16" (11 mm) to the edge of the sector gear.
- Using a 1/4" drill bit, drill out the ends of all 3 motor-to-regulator attaching rivets from the motor side of the assembly.
- Remove motor from regulator and the remaining portions of the rivets.
NOTE:
Do not drill through lift arm attaching portion of sector as this will adversely effect joint integrity.
NOTE:
Depending on the position of the regulator, it may be necessary to remove portions of one remaining rivet later.
