1992 Saturn SL L4-1.9L SOHC VIN 9FACTORY OEM SERVICE PROCEDURE
Scan Tool Testing and Procedures

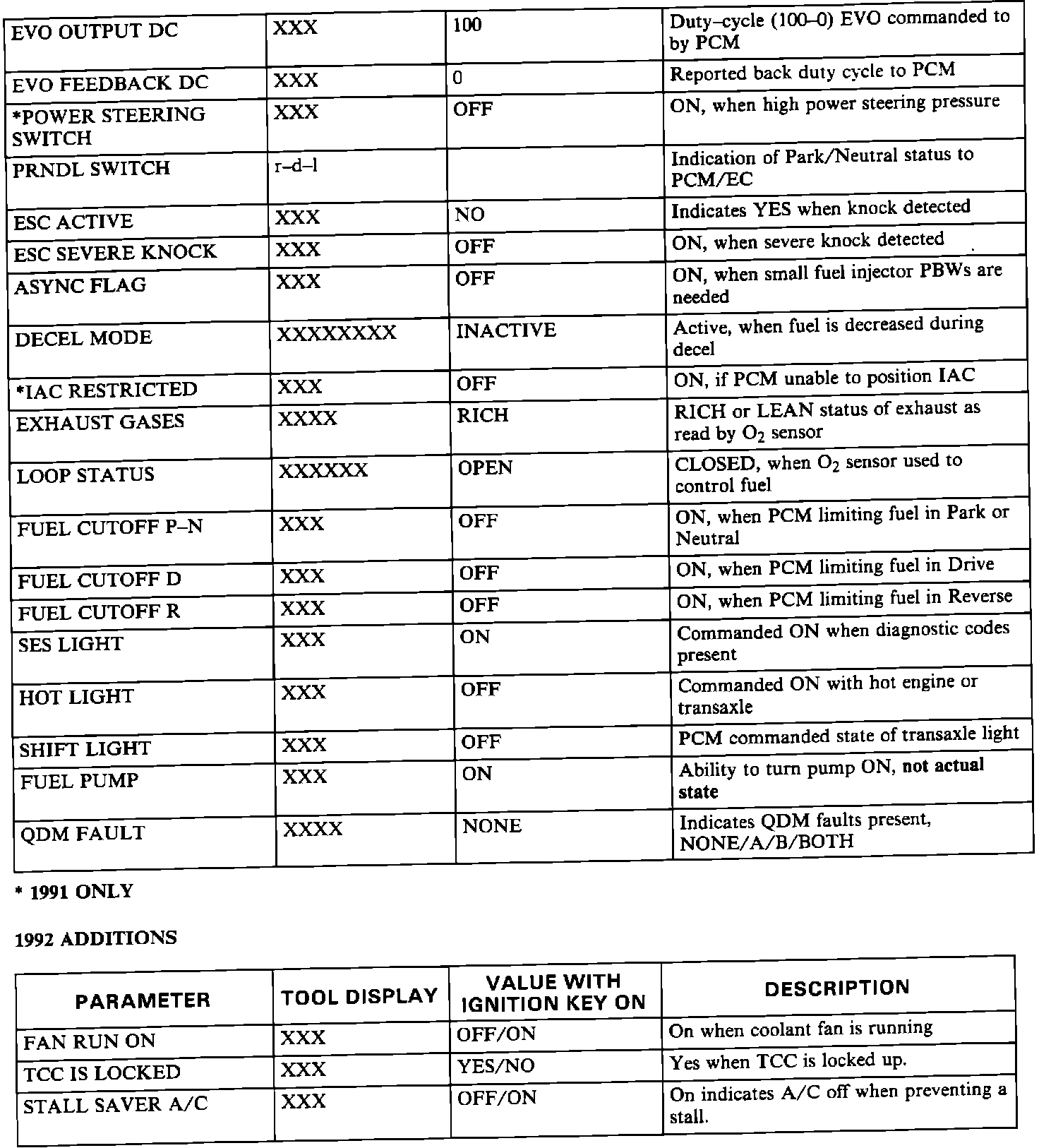

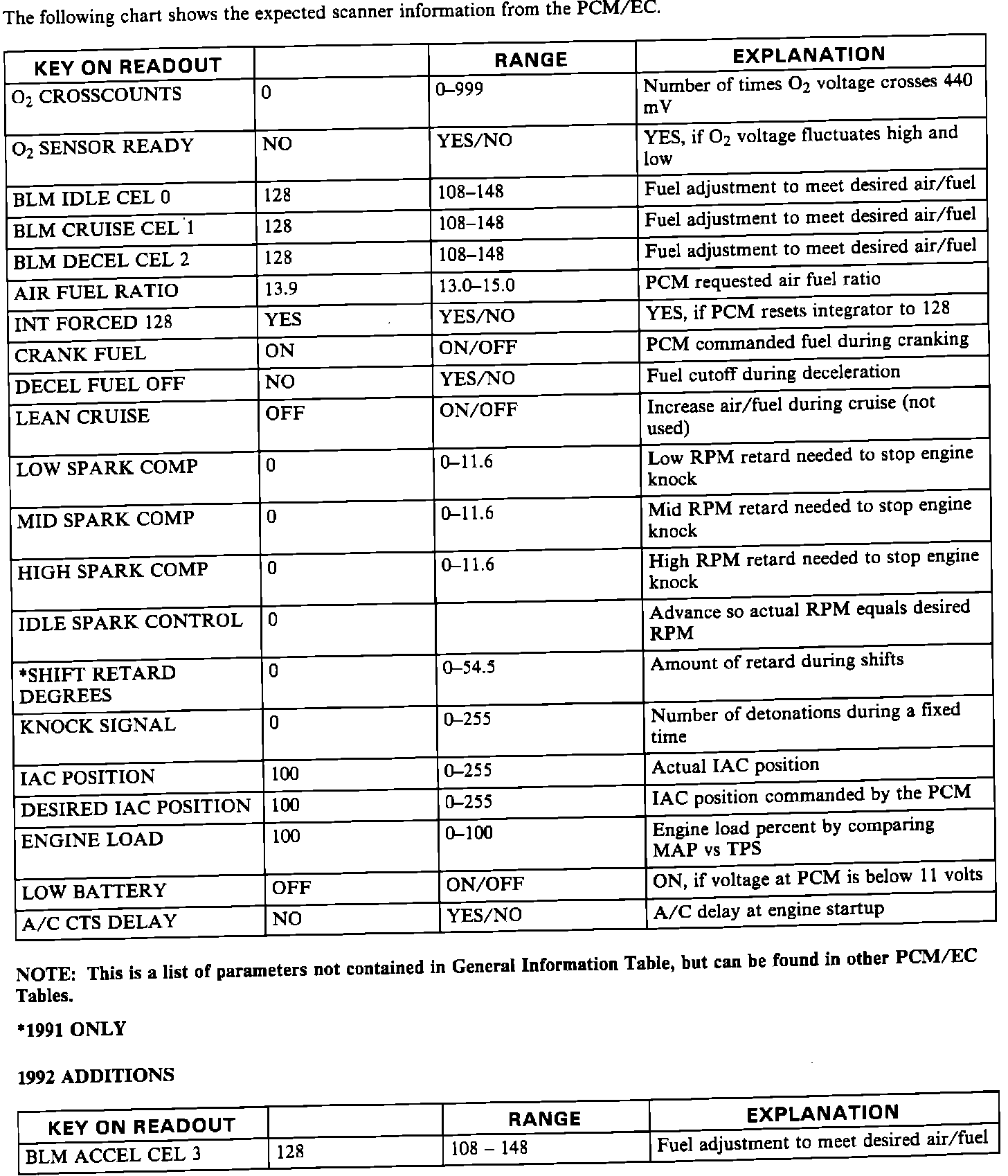

Typical Values With Scan Tools.:
Typical Values With Scan Tools.:
Typical Values With Scan Tools.:

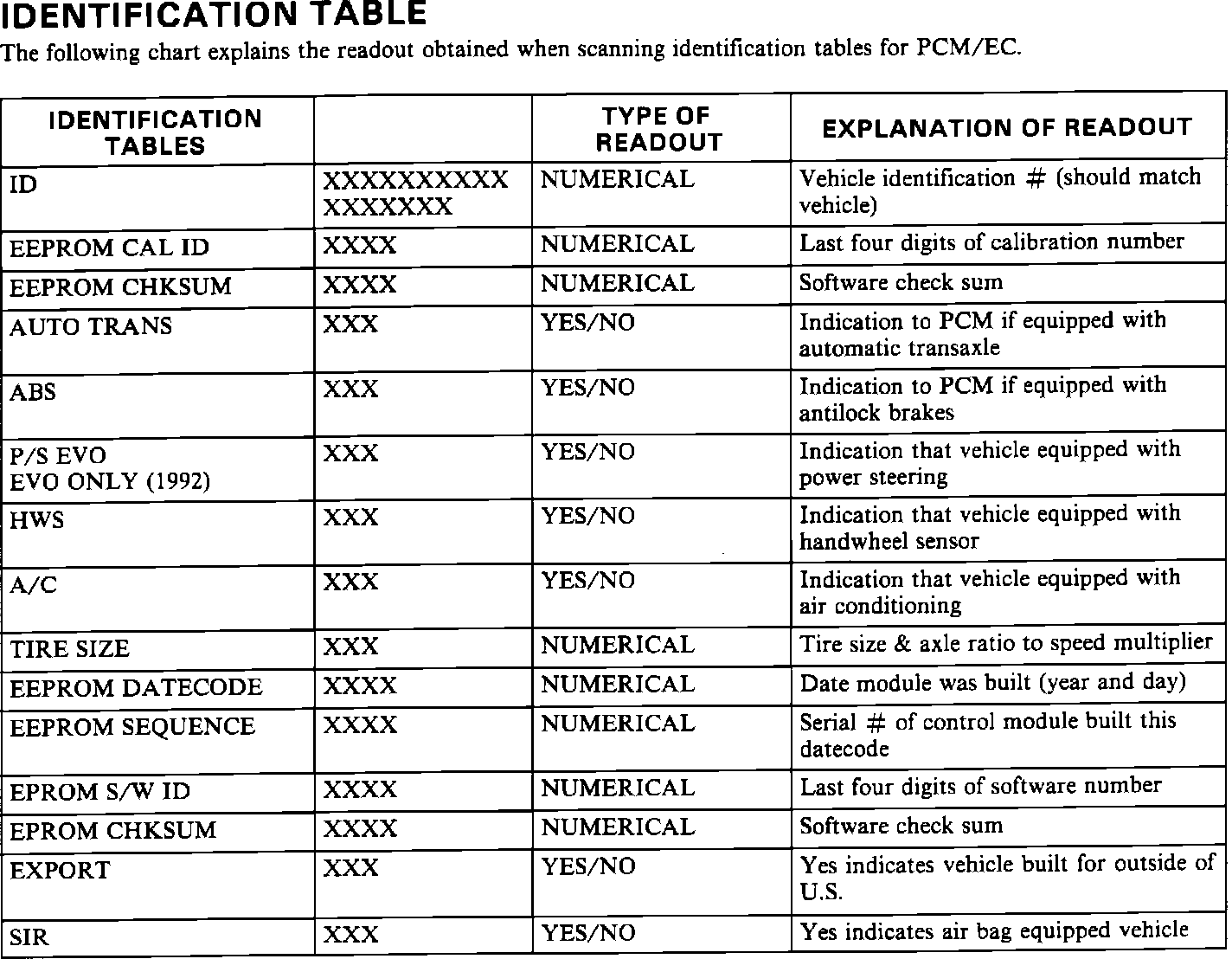

Identification Table.:

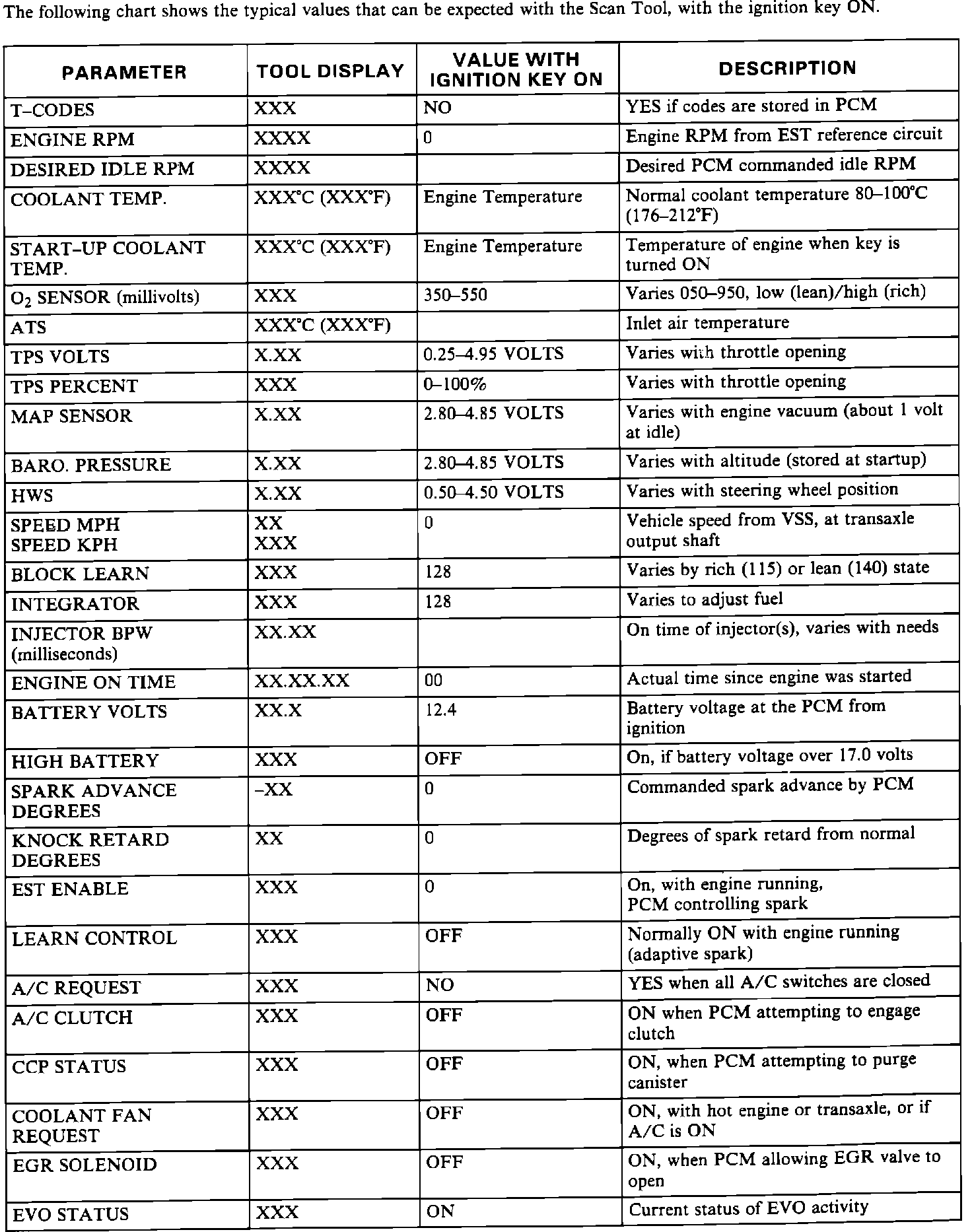

The charts show the typical values that can be expected with a Saturn scan tool, with the ignition key "ON". Some scan tools may not show this information. Check with the scan tool manufacturer for compatibility with the SATURN scan tool.
