1992 Saturn SL AutomaticFACTORY OEM SERVICE PROCEDURE

Component Resistances

  • EGR Solenoid; 28.8-35.2 ohms.
  • Canister Purge Solenoid; 28.8-35.2 ohms.
  • Coolant Fan Relay; 72-88 ohms.
  • A/C Relay; 72-88 ohms.

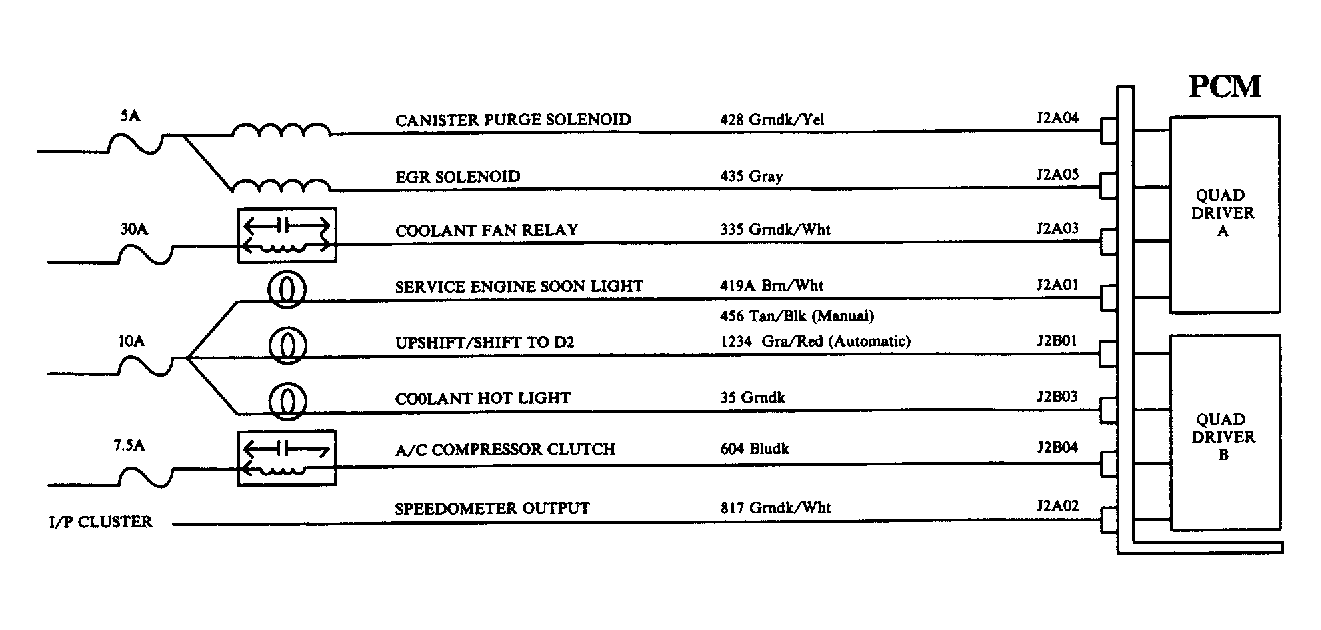

Fig 1: Code 26, Schematic, Quad-Driver Ckt
G92H04638
