2011 Saab 9-3X AutomaticFACTORY OEM SERVICE PROCEDURE

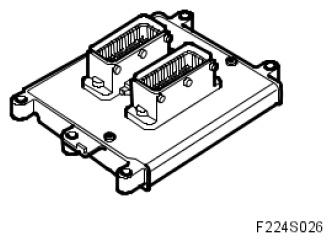

Control module, Trionic T8 (589)
CONTROL MODULE, TRIONIC SPECIFICATION CHART
| No. of pins | A=64 B=64 |
|
| Power supply, (+30 circuit) | Pin no. | 3 (A), 20 (A)0 |
| Power supply (+15 circuit) | Pin no. | 2 (A), 19 (A) |
| Power supply from main relay | Pin no. | 48 (A), 64 (A) |
| Power ground | Pin no. | 47 (A), 57 (A), 60 (A) and 63 (A) |
| P-bus + | Pin no. | 5 (A) |
| P-bus - | Pin no. | 6 (A) |
