2011 Saab 9-3X AutomaticFACTORY OEM SERVICE PROCEDURE

To remove

Move the seat as far back as possible.
Remove the center console front side piece.

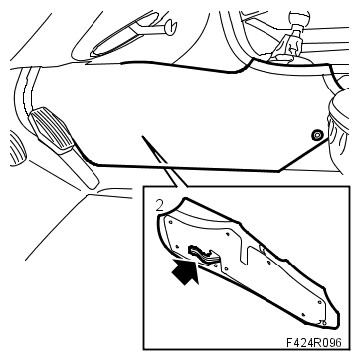

Fig 1: Identifying Centre Console Front Side Piece
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the 2 sound insulating baffle screws from the climate housing and instrument panel.

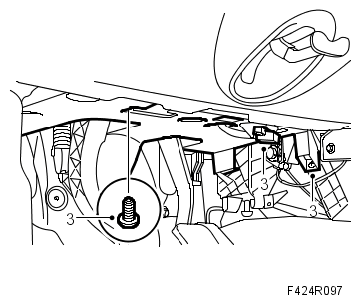

Fig 2: Identifying 2 Sound Insulating Baffle Screws
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lower the sound insulating baffle and unplug the connector to the position sensor.

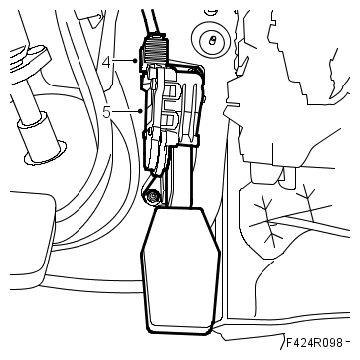

Fig 3: Illustration For Steps 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the three position sensor nuts.
