2011 Saab 9-3X AutomaticFACTORY OEM SERVICE PROCEDURE
To fit

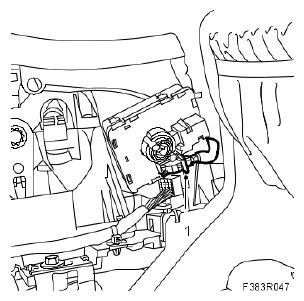

- Plug in the connector to the ignition switch module, see CONNECTORS, HANDLING AND CHECKING ITEM 1D.

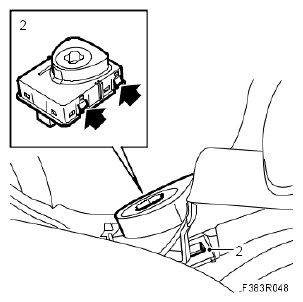

- Lift up the floor console slightly and fit the ignition switch module. Make sure all four catches are in the correct position.

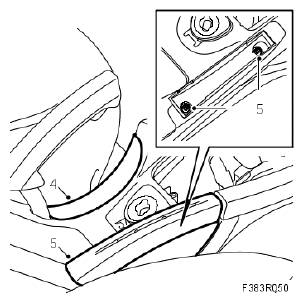

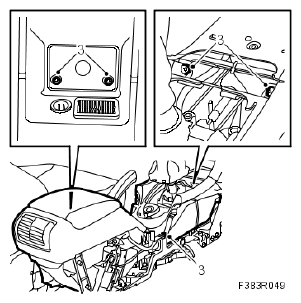

- Fit the floor console screws and tighten them. Put the rubber mat back into the storage compartment.
- Fit the cover under the handbrake lever.
- Fit the compartment and cover on the passenger side.
- AUT: Fit the clamp.
- Fit the cover over the gear lever housing.
- Fit the front side pieces on the floor console.
- Connect Tech2 and clear any DTCs.
