2009 Saab 9-7X 5.3iFACTORY OEM SERVICE PROCEDURE

Inside Rearview Mirror Replacement

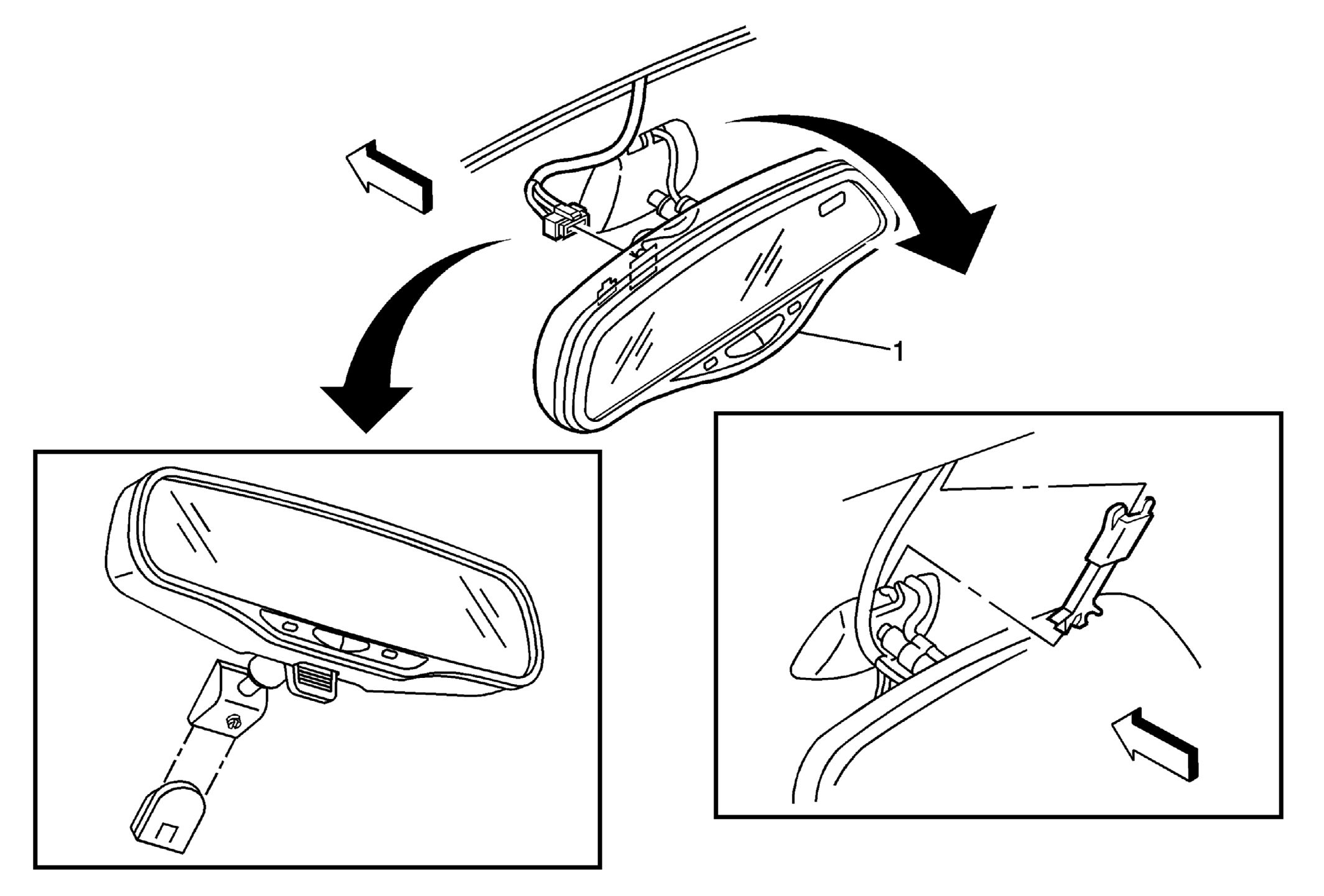

Fig 1: Replacing Inside Rearview Mirror
GM2000287Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror
CAUTION: Refer to Fastener Caution .

Procedure

  1. Remove the inside rearview mirror cover, if equipped
  2. Disconnect the electrical connector, if equipped.
  3. Adjust the mirror to the full upward position.
  4. Loosen the set screw located at the base of the mirror.
  5. Slide the mirror upward off of the rearview mirror button.
  6. Refer to Control Module References for programming and setup information.

Tighten:  2 N.m (18 lb in)
