2009 Saab 9-7X 5.3iFACTORY OEM SERVICE PROCEDURE
Theft Deterrent Exciter Module

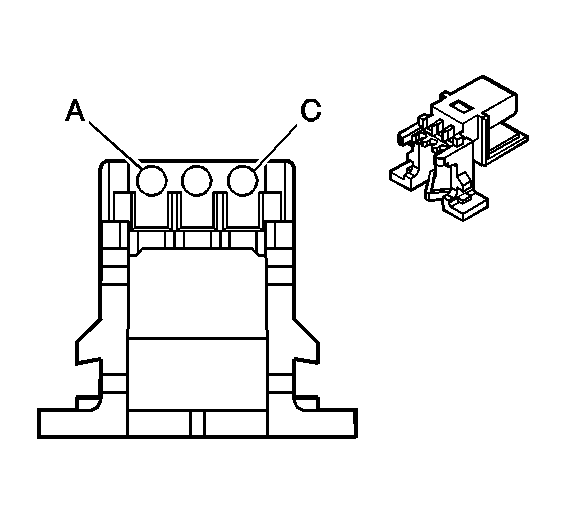

Theft Deterrent Exciter Module
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.35 WH | 1459 | Security System Sensor Control |
| B | 0.35 YE | 1836 | Security System Sensor Signal |
| C | 0.35 BK | 1835 | Low Reference |
Connector Part Information
|
Terminal Part Information
|
