2005 Saab 9-7X ArcFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .

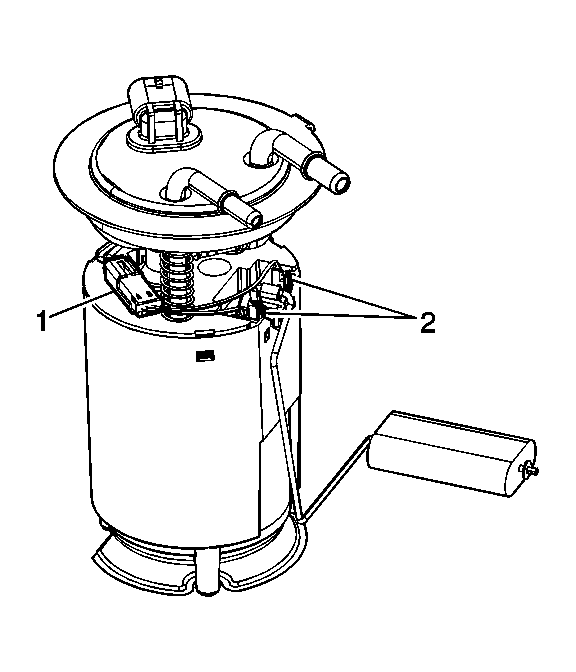

Fig 1: View Of Fuel Level Sensor

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel level sensor electrical connector (1).
Depress the fuel level sensor retaining tabs (2) to release the sensor from the sender assembly.

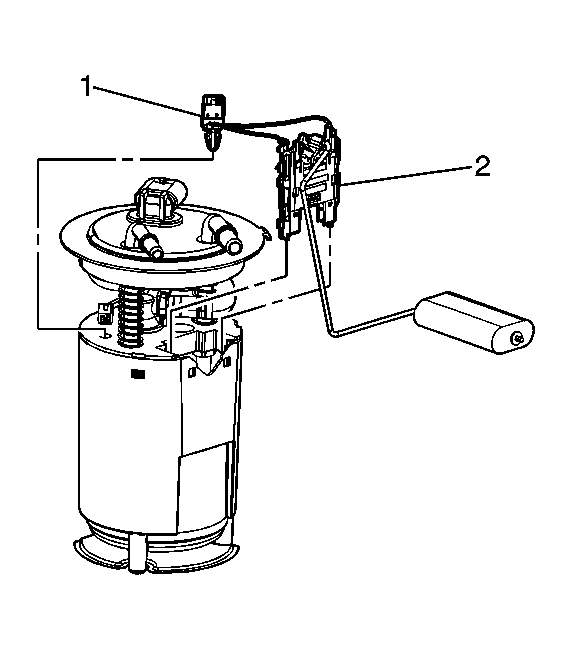

Fig 2: Identifying Fuel Level Sensor & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the fuel level sensor electrical connector (1) and sensor (2) from the fuel sender assembly.
