Steering wheel angle sensor (657): Function: Notes

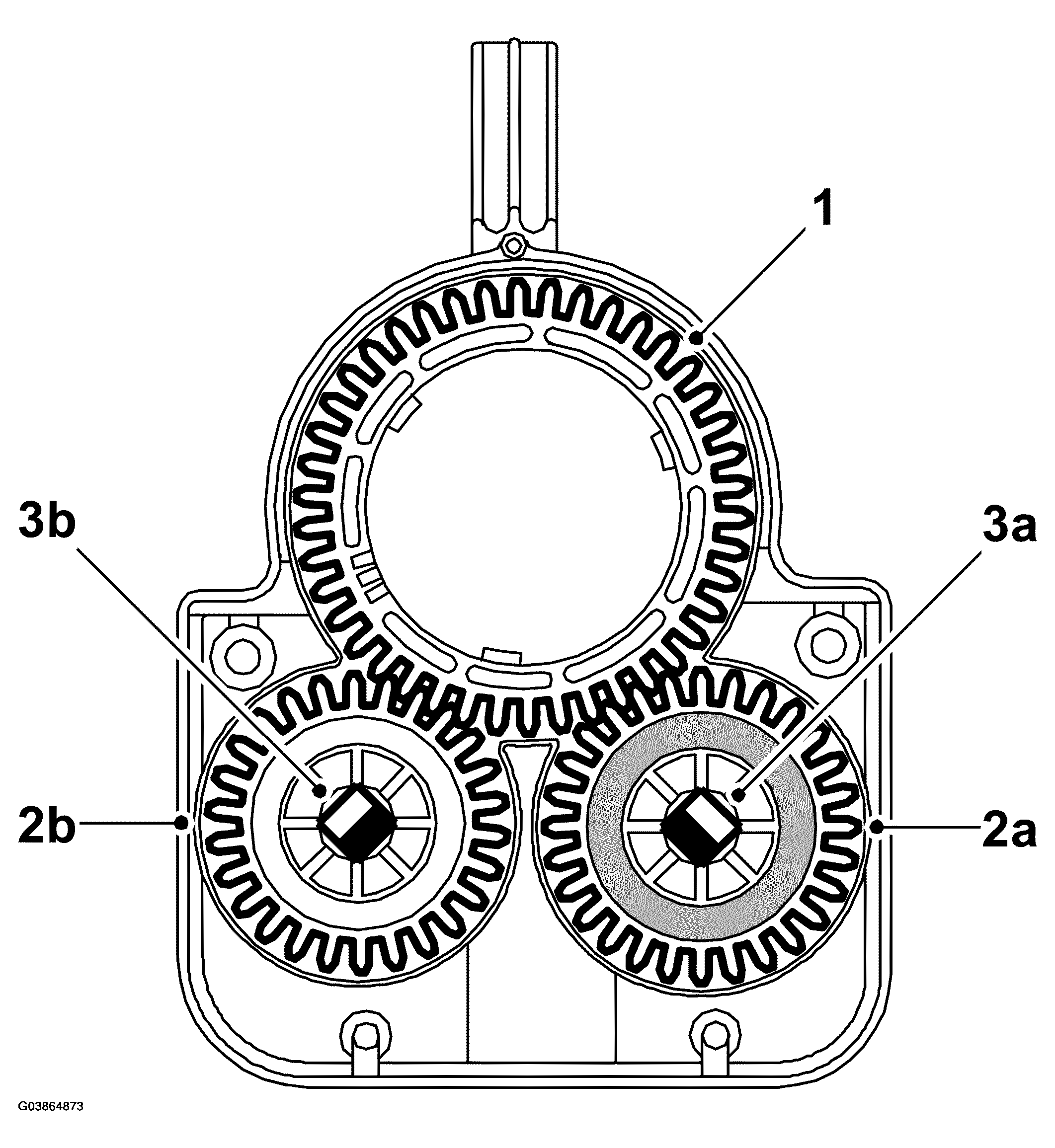

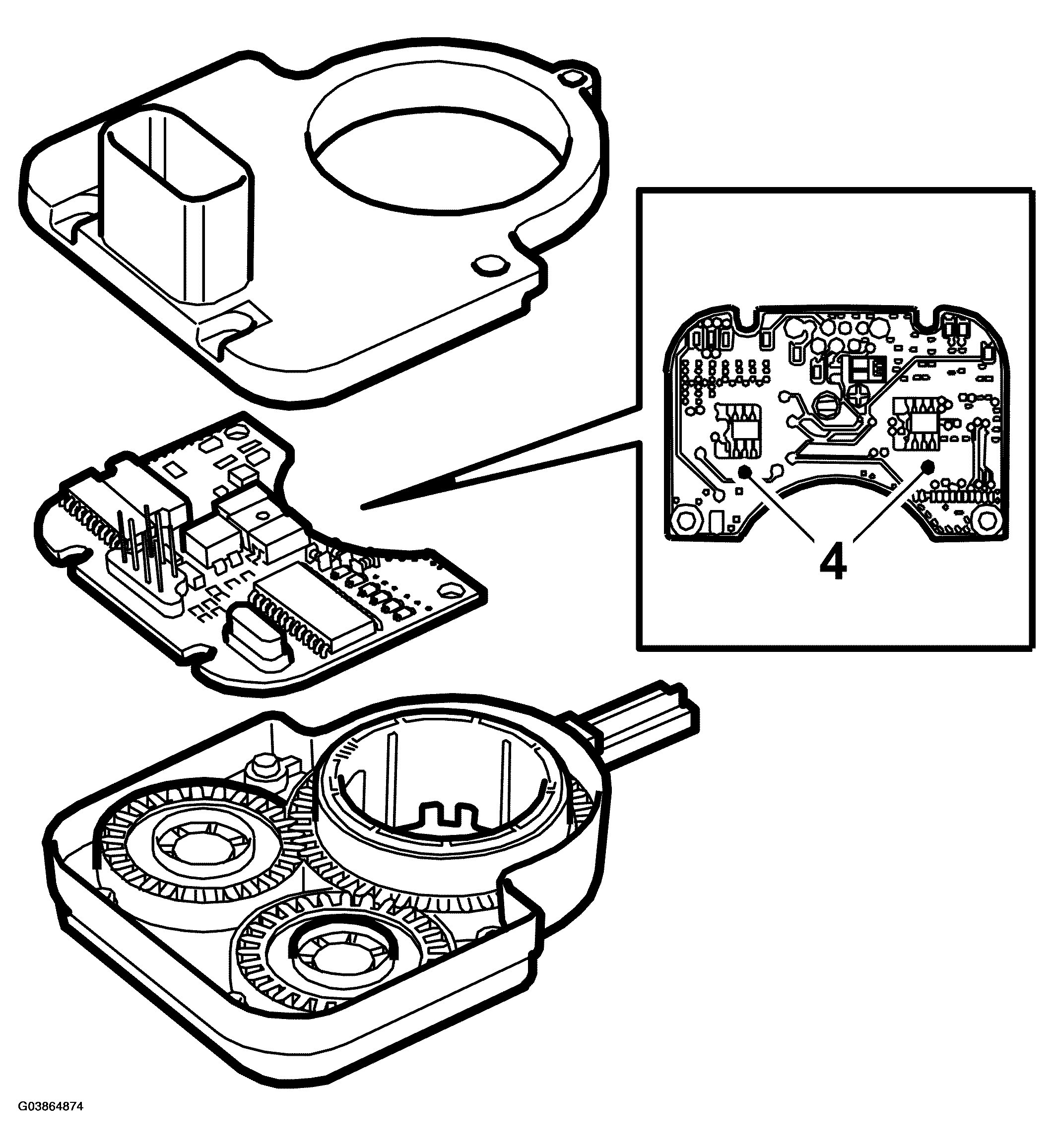

The steering wheel angle sensor comprises a ring gear (1) mounted on the steering column shaft. Two gears with different numbers of teeth (2a has 28 teeth and 2b 26 teeth) engage this ring gear. Each gear has a permanent magnet (3a and 3b) and sensor, the resistance of which depends on the magnetic field.
Since the two gears 2a and 2b have different numbers of teeth, the relative positions of the permanent magnets will be unique for each steering wheel angle. Accordingly, the position of the steering wheel can be transmitted on the P-bus. This information is used by the ESP control module.
