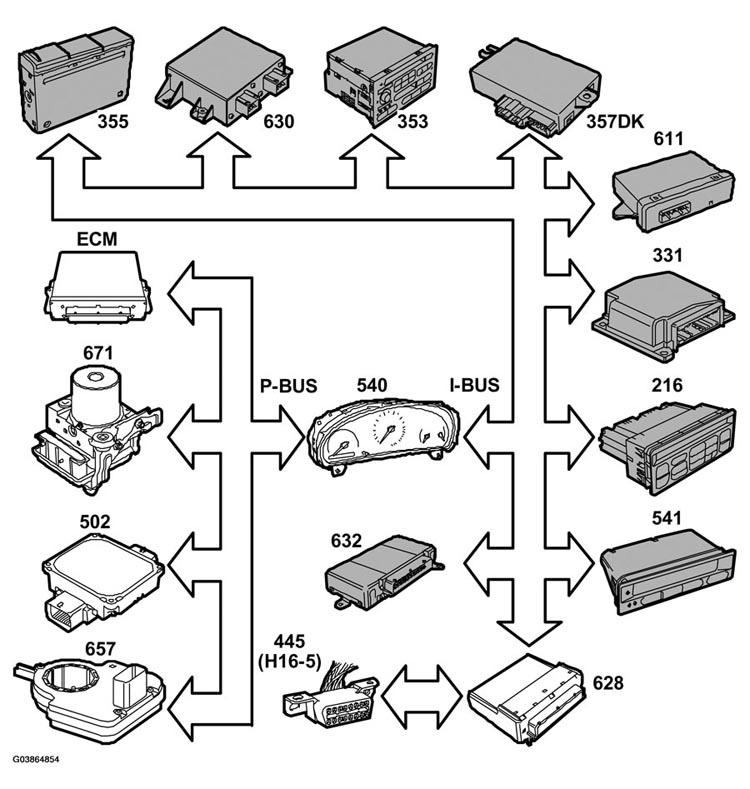

Control module inputs, bus
- Engine speed (ECM)
- ENGINE TORQUE (ECM)
- Pedal position (ECM)
- Current gear ratio
- On automatic transmissions, the value from TCM is given
- For manual gearboxes, the value is calculated by the ECM
- STEERING WHEEL ANGLE SENSOR (657)
See also Bus and diagnostics communication, CONTROL MODULE CONNECTIONS .
