2005 Saab 9-3 Linear, 2D Convertible, AutomaticFACTORY OEM SERVICE PROCEDURE
General data

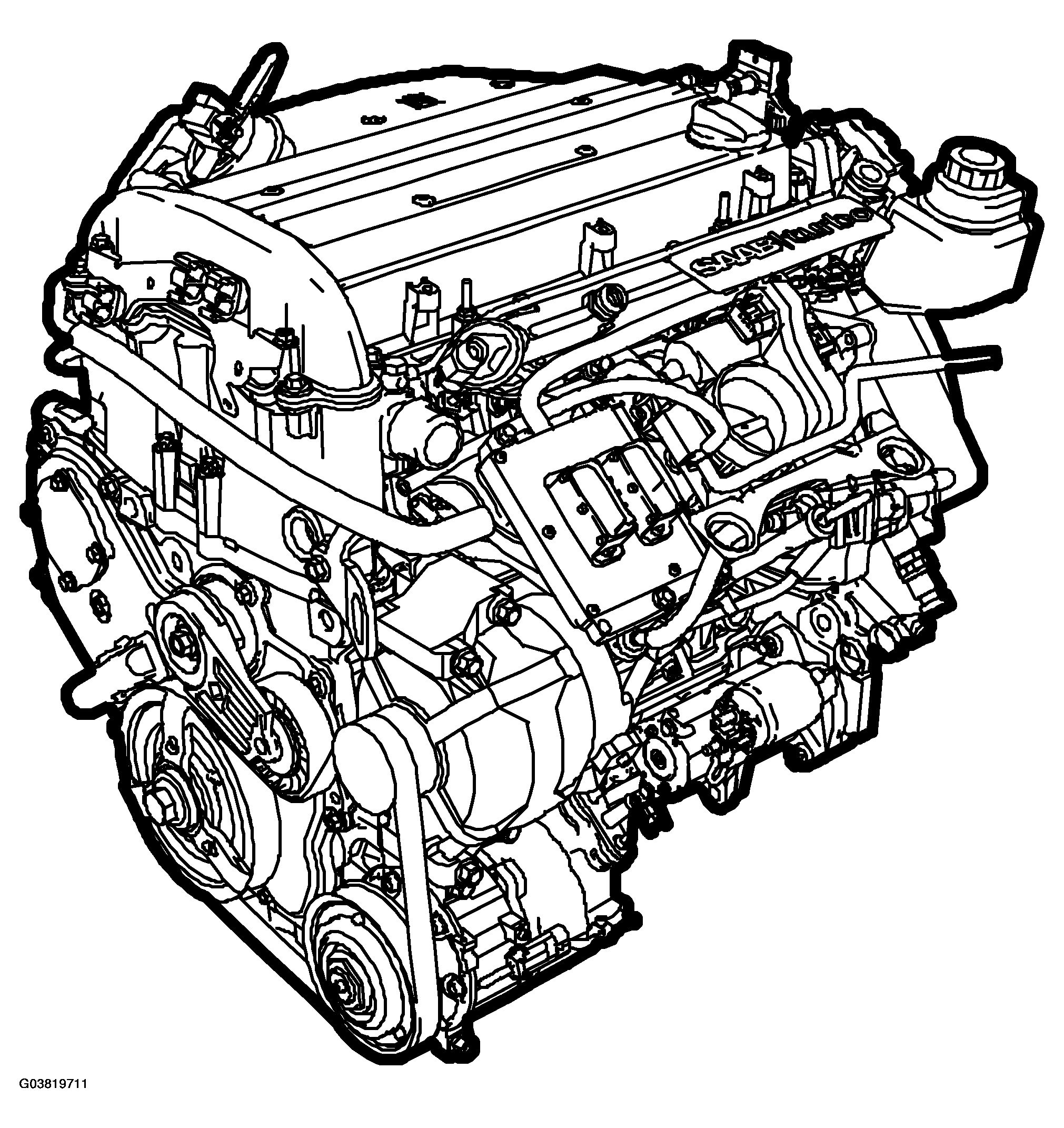

ENGINE SPECIFICATION
| Engine | B207E | B207L, B207S | B207R | |
|---|---|---|---|---|
| Type | 4-cyl, 4-stroke engine with 4 valves per cylinder, 2 overhead camshafts and 2 balancer shafts. Transverse mounted. | 4-cyl, 4-stroke engine with 4 valves per cylinder, 2 overhead camshafts and 2 balancer shafts. Transverse mounted. | 4-cyl, 4-stroke engine with 4 valves per cylinder, 2 overhead camshafts and 2 balancer shafts. Transverse mounted. | |
| Cylinder bore | mm | 86 | 86 | 86 |
| Stroke | mm | 86 | 86 | 86 |
| Compression ratio | 9.5:1 | 9.5:1 | 9.5:1 | |
| Min compression | bar | 12.4 | 12.4 | 12.4 |
| Displacement | cm3 | 1998 | 1998 | 1998 |
| Firing order | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 | |
| Spark plug | PFR6T-10G | PFR6T-10G | PFR6T-10G | |
| Plug gap | mm | 0.95 +/-0.05 | 0.95 +/-0.05 | 0.95 +/-0.05 |
| Weight | kg (lb) | 149 (329) | 149 (329) | 149 (329) |
| Engine management system | Trionic 8 | Trionic 8 | Trionic 8 | |
| Fuel, recommended octane/cetane count | RON | 95 | 95 | 98 |
| Nominal idle, warm engine | rpm | Drive: 720 Neutral: 720 Man: 720 |
Drive: 720 Neutral: 720 Man: 720 |
Drive: 720 Neutral: 720 Man: 850 |
