2005 Saab 9-2X Linear, 253, AutomaticFACTORY OEM SERVICE PROCEDURE

Electrical Specification

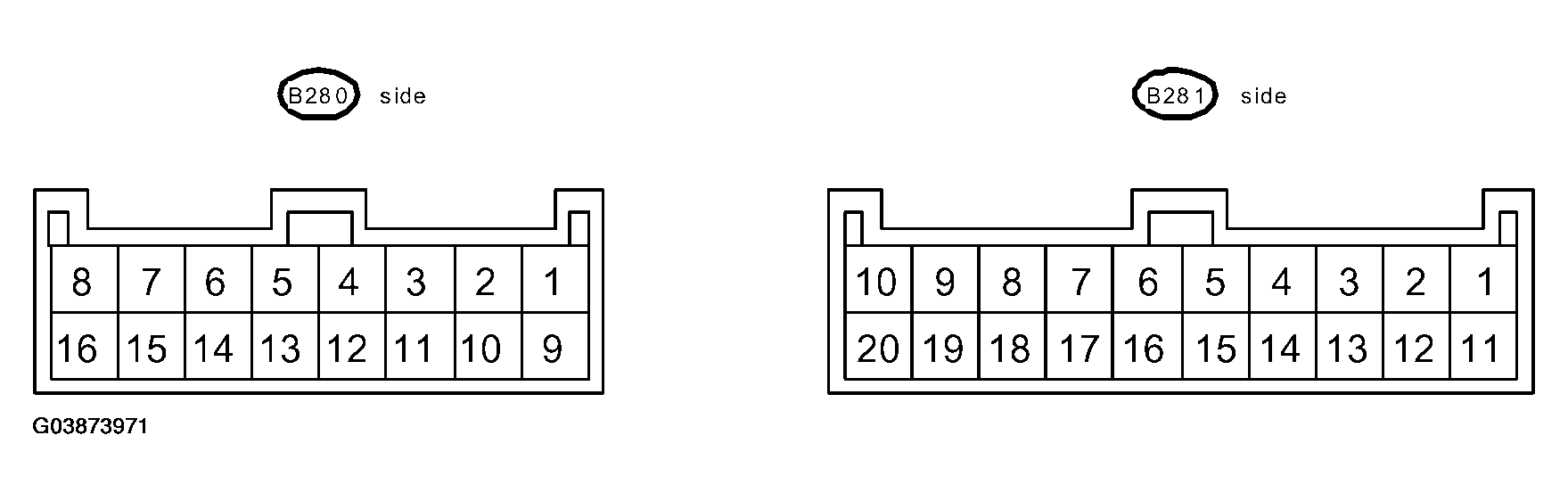

Fig 1: Identifying Electrical Connector Terminals
G03873971Courtesy of SAAB-SCANIA OF AMERICA, INC.
ELECTRICAL SPECIFICATION - TECHNICAL DATA

Contents To Connector No. Terminal No. Input/Output signal
Measured value and measuring conditions
Battery power supply B280 2 9 - 16 V
Ignition power supply B281 19 10 - 15 V when ignition switch is at ON or START.
Ignition power supply B281 10 10 - 15 V when ignition switch is at ACC.
Inhibitor Switch ("P" range) B281 5 0 V when select lever is in "P" range.
9 - 16 V when select lever is in other ranges than "P" range.
Stop light switch B281 9 9 - 16 V when stop light switch is ON.
0 V when stop light switch is OFF.
"P" range switch B281 6 0 V when select lever is in "P" range.
9 - 16 V when select lever is in other ranges than "P" range.
Shift lock solenoid signal B280 9 8.5 - 16 V when shift lock is released.
0 V when shift lock is operating.
Key warning switch signal B281 20 9 - 16 V when key is inserted.
0 V when key is removed.
Key lock solenoid signal B280 3 7.5 - 16 V when turning ignition switch to ON, select lever is in "P" range and brake switch is ON.
0 V at other conditions than above.
Ground B280 4 -
Ground B280 13 -
