Select Cable: Installation
Install the select cable to plate assembly.
Tightening torque:
18 Nm (1.8 kgf-m, 13.0 ft -lb)
Install the select cable to range select lever.

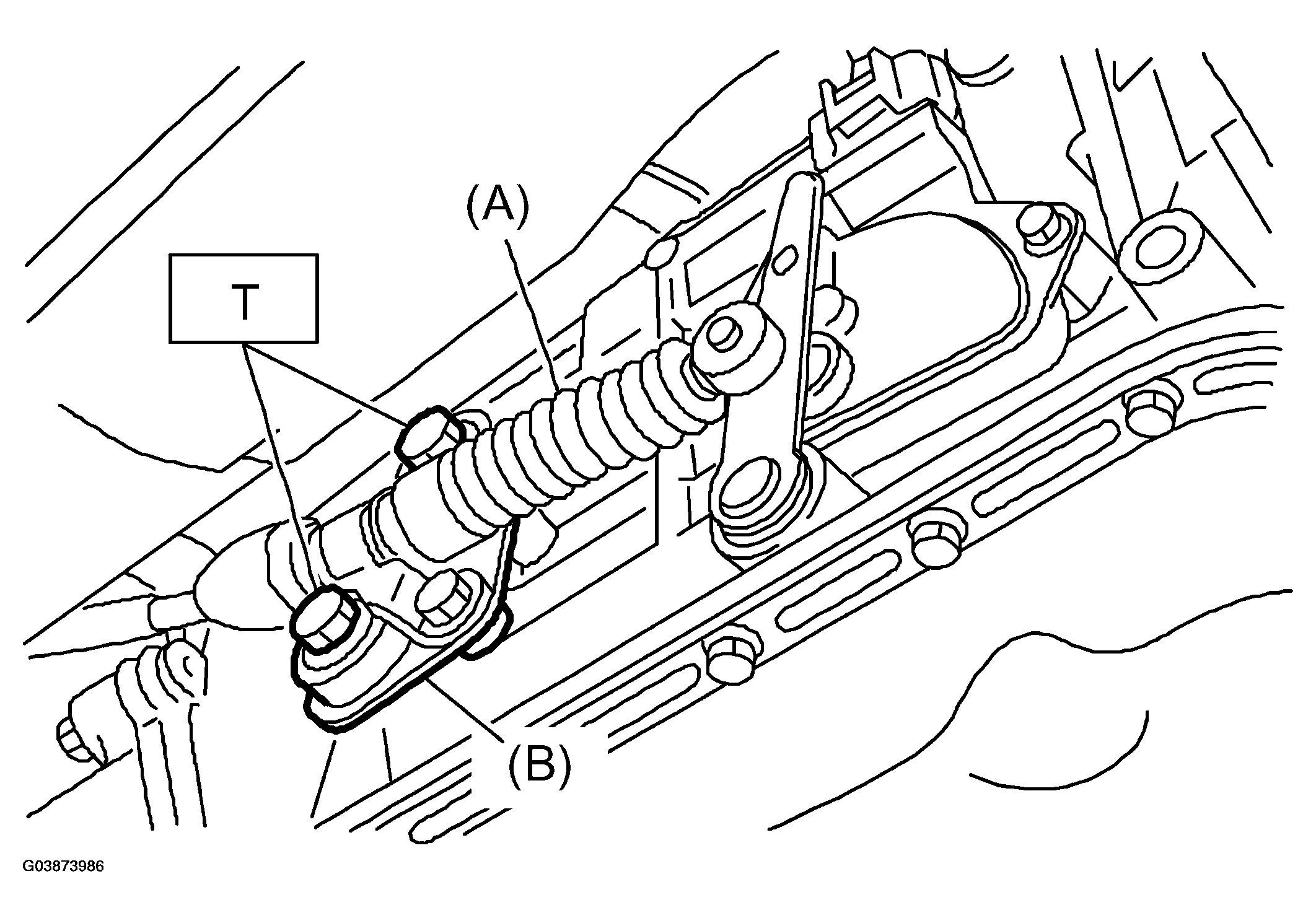

Install the plate assembly to transmission.
Tightening torque:
T: 24.5 Nm (2.5 kgf-m, 18.1 ft -lb)
- Select cable
- Plate ASSY

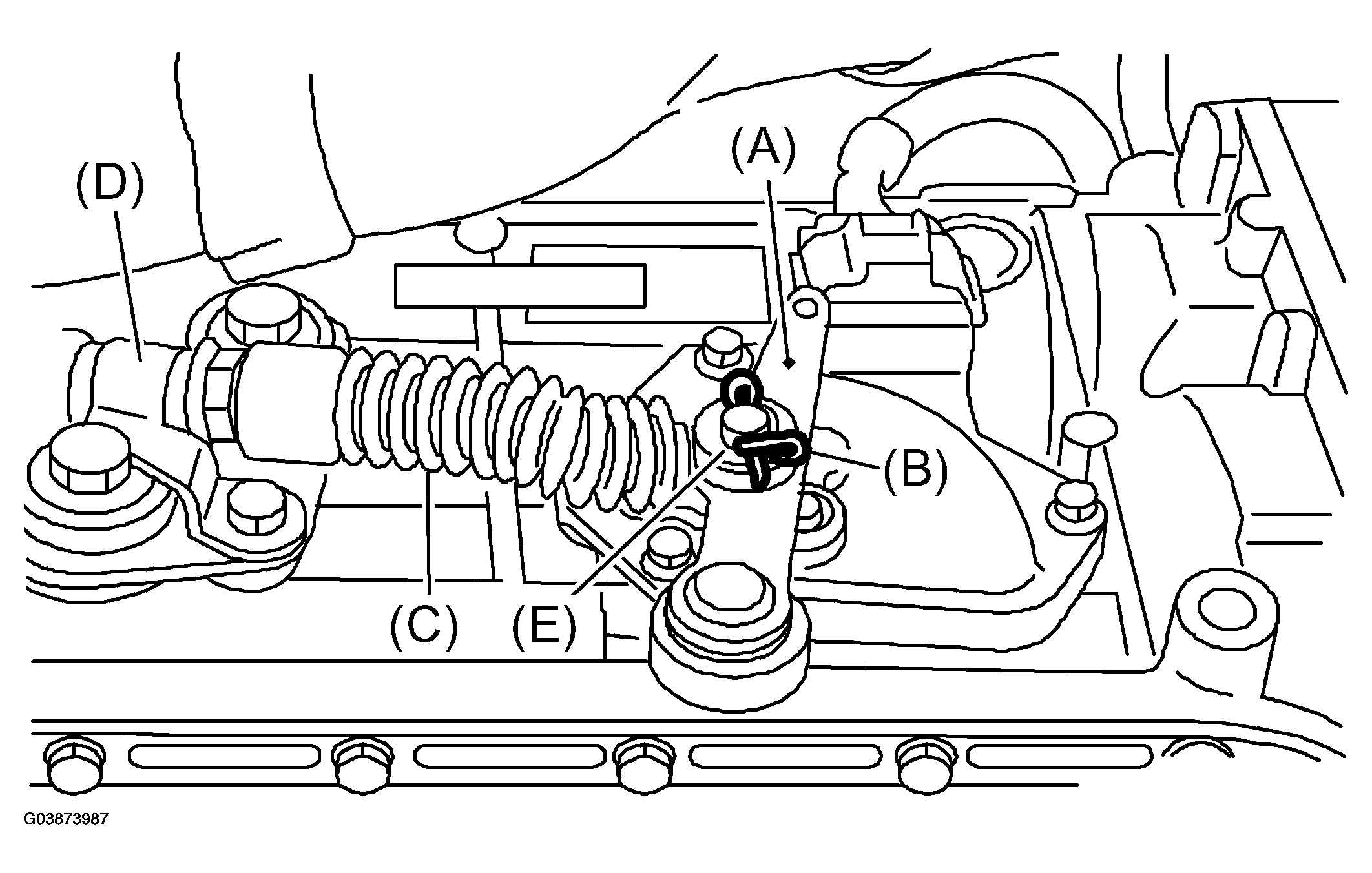

Install the washer and snap pin to range select lever.
- Range select lever
- Snap pin
- Select cable
- Clamp
- Washer
Insert the thread portion of other inner cable and into connector hole of select lever, and fix the other outer cable end to the bracket.
Tightening torque:
18 Nm (1.8 kgf-m, 13 ft-lb)
Move the select lever to "N" range, and then adjust the select cable position.

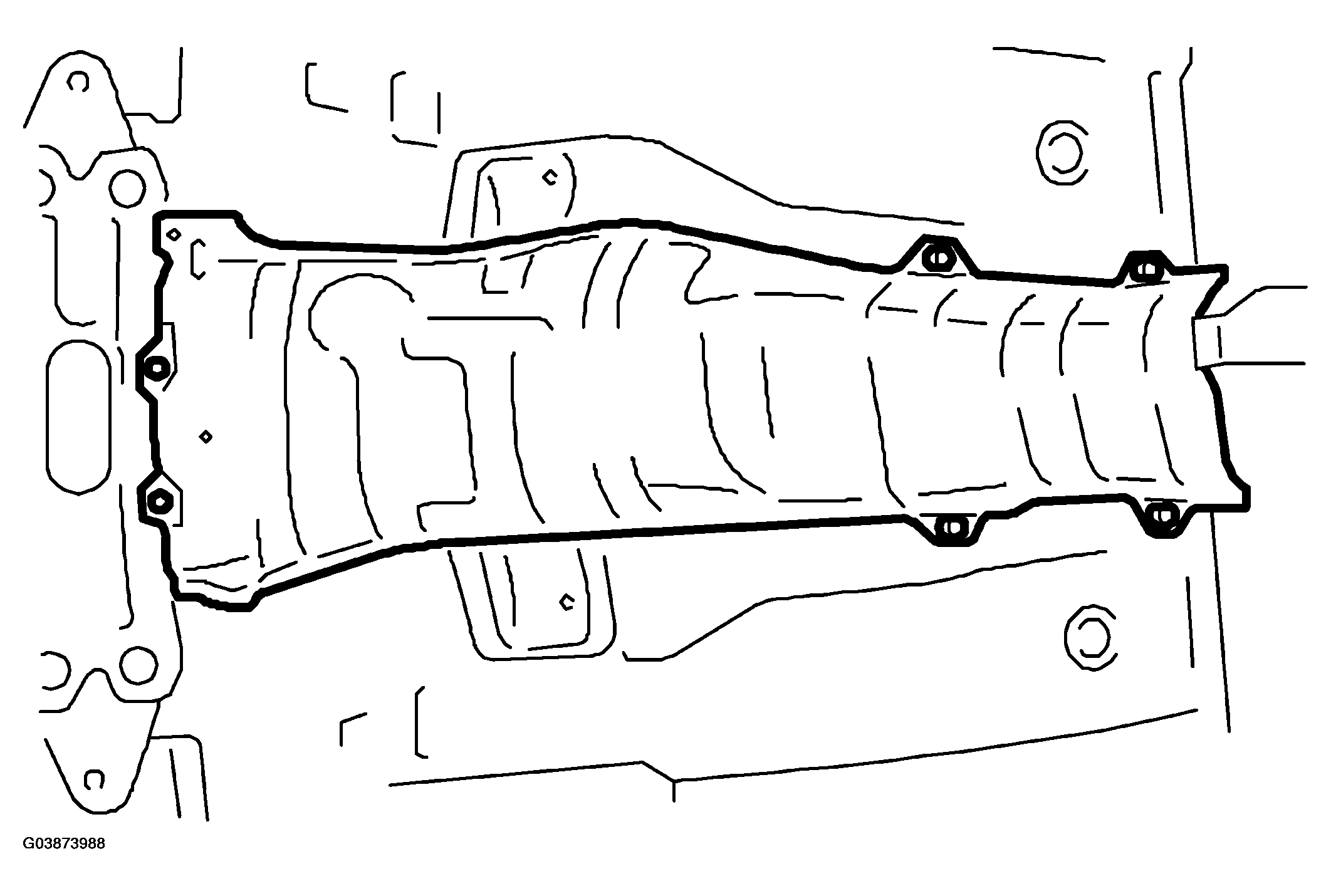

Install the heat shield cover.
Install the front, center, rear exhaust pipe and muffler. (Saab 9-2X 2.5i Linear)
Install center and rear exhaust pipes and muffler. (Saab 9-2X 2.0T Aero)
