Select Cable: Adjustment
Set the select lever to "N" range.
Remove the rear exhaust pipe and muffler.
- Saab 9-2X 2.5i Linear
- Saab 9-2X 2.0T Aero

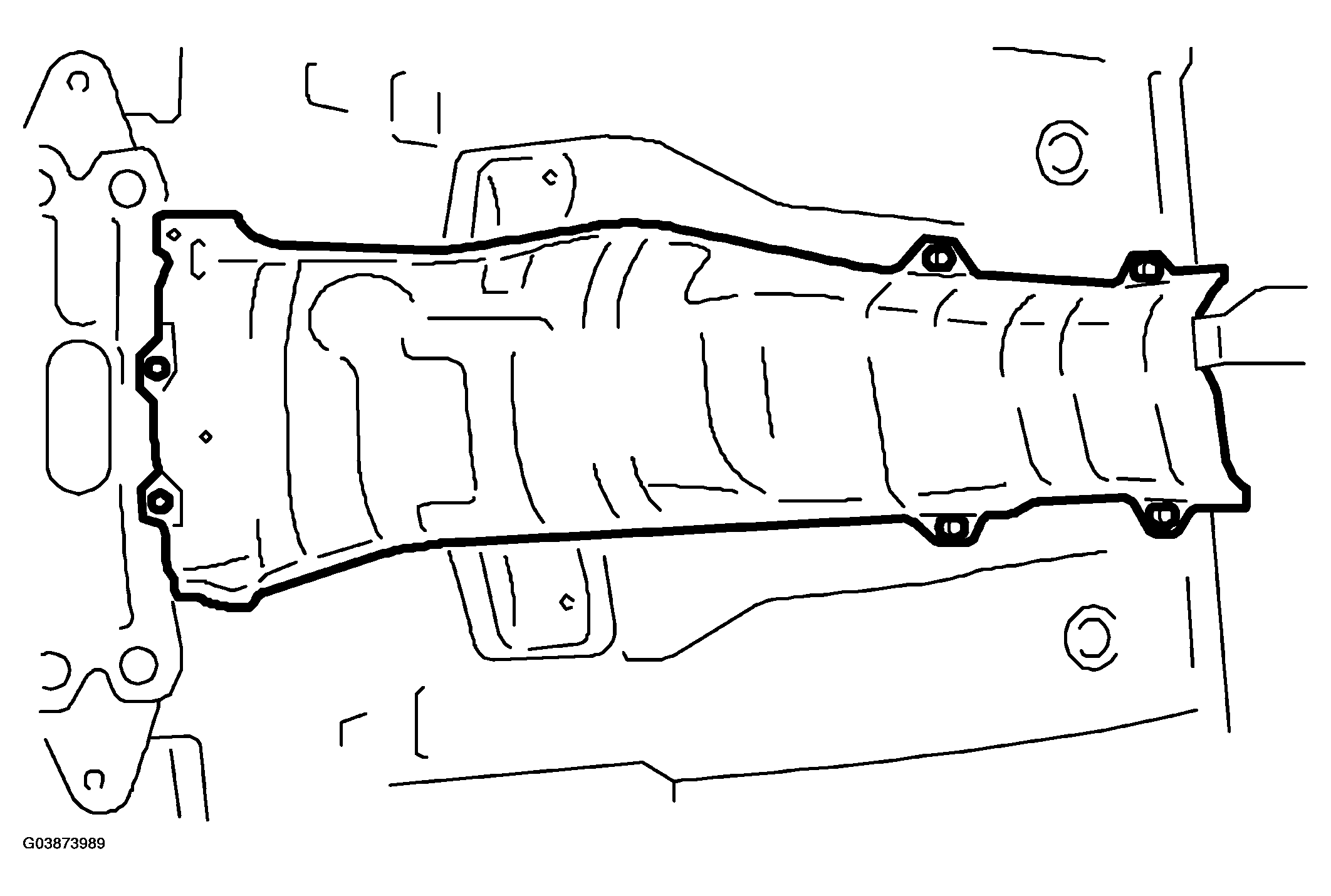

Remove the heat shield cover. (If equipped)

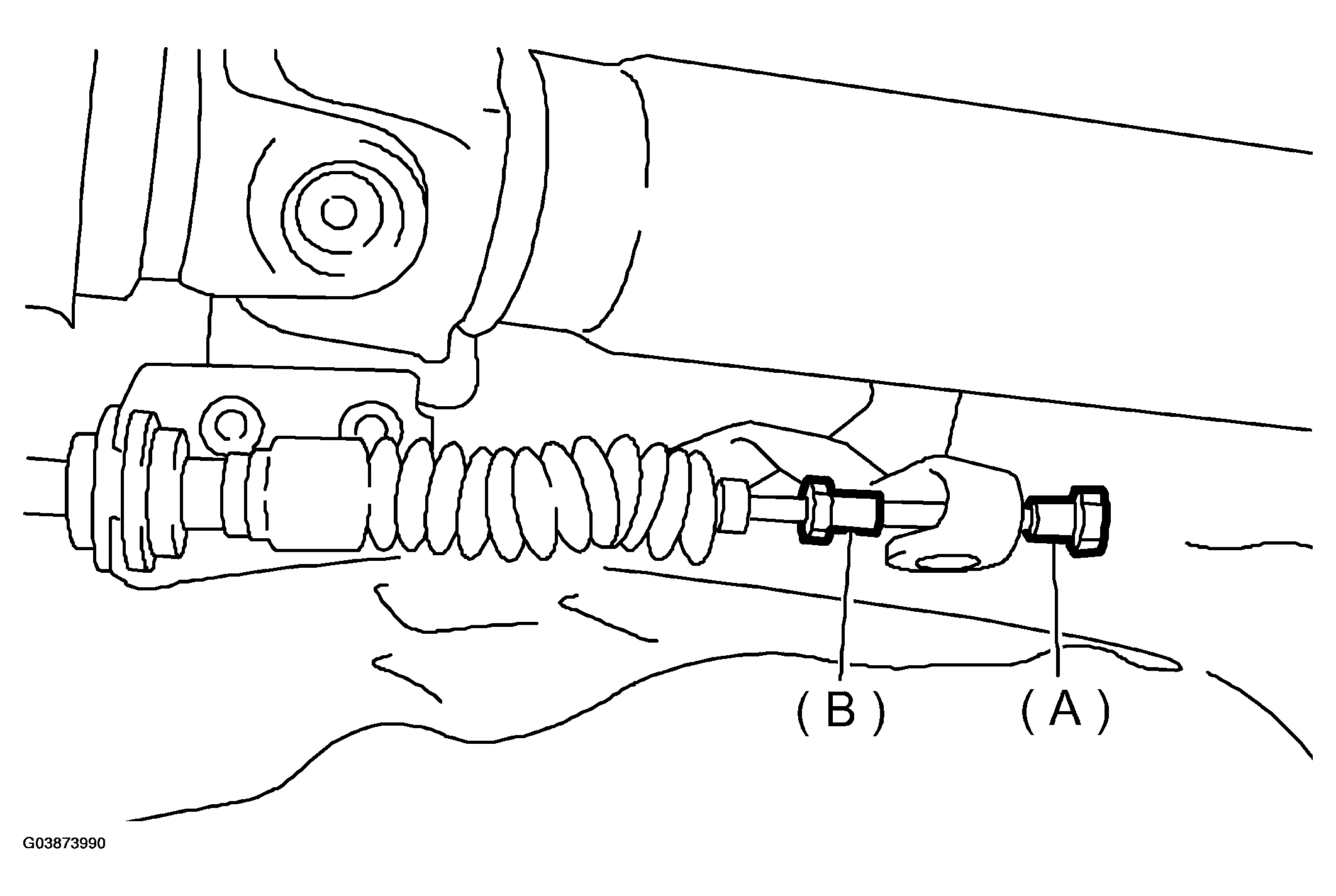

Loosen the adjusting nut on each side.
- Adjusting nut A
- Adjusting nut B

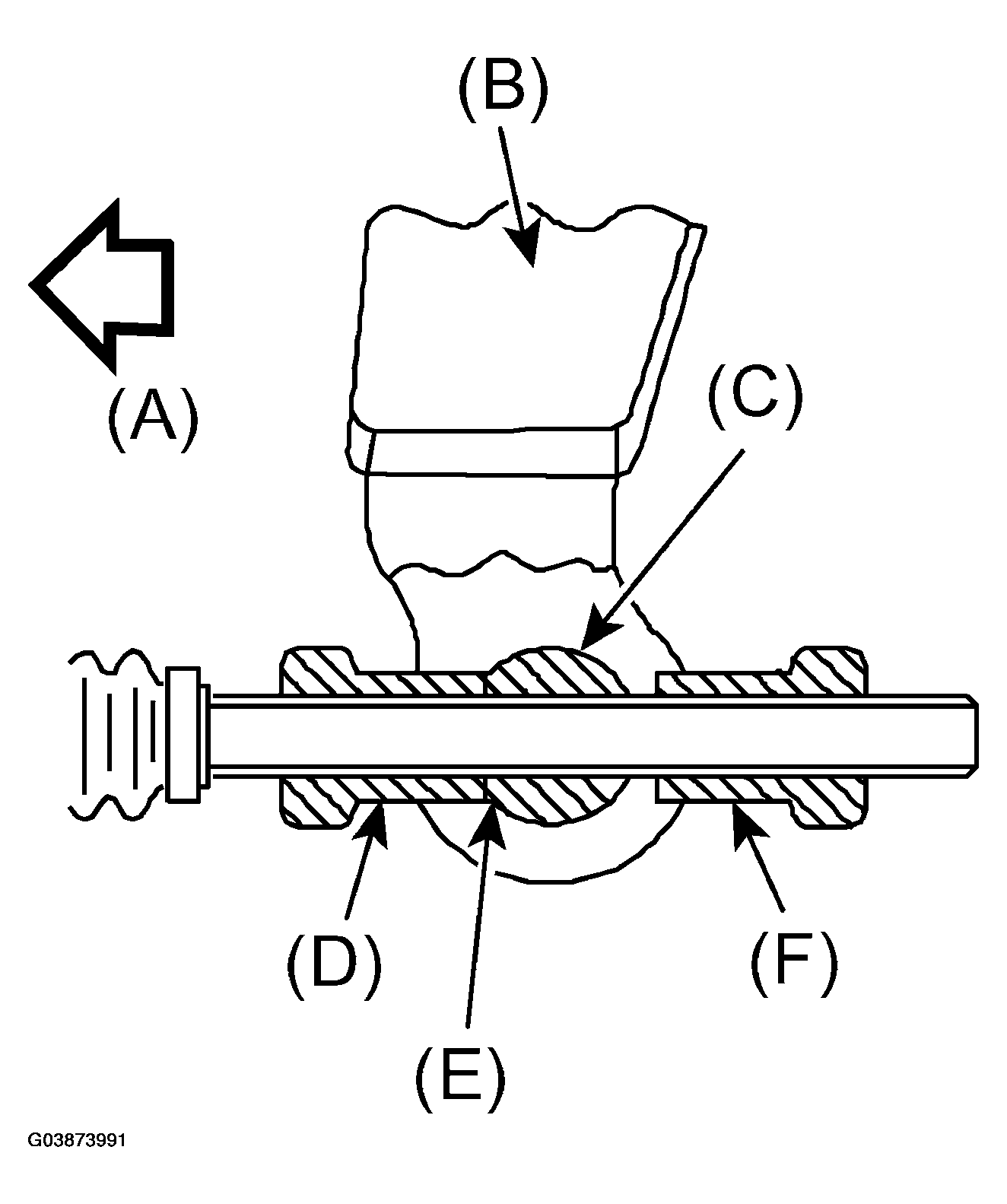

Turn the adjusting nut B until it lightly touches the connector.
- Front side
- Select lever
- Connector
- Adjusting nut B
- Contact point
- Adjusting nut A

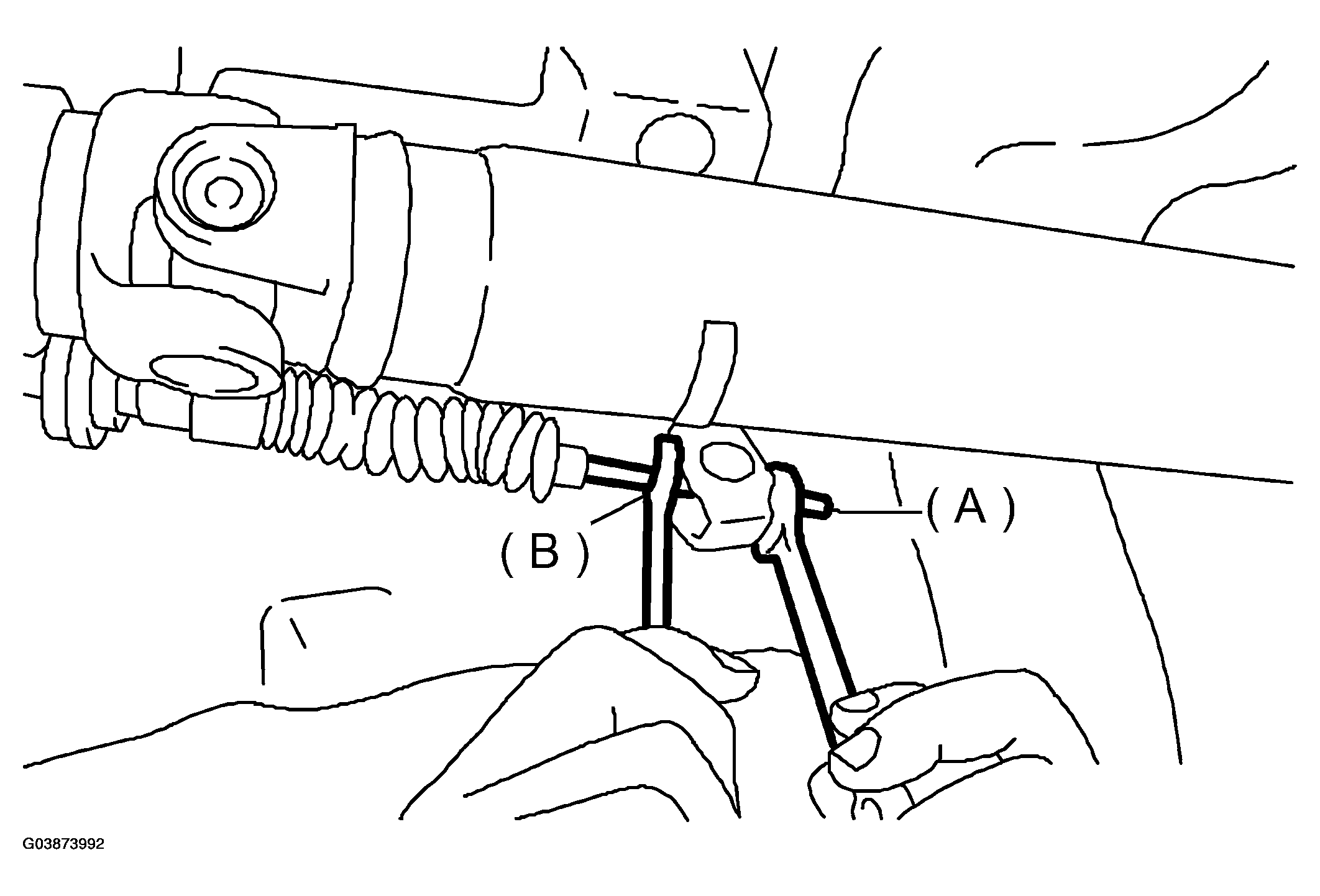

While preventing the adjusting nut B from moving with a wrench, tighten the adjusting nut A.
Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
- Adjusting nut A
- Adjusting nut B
After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
Install in the reverse order of removal.
