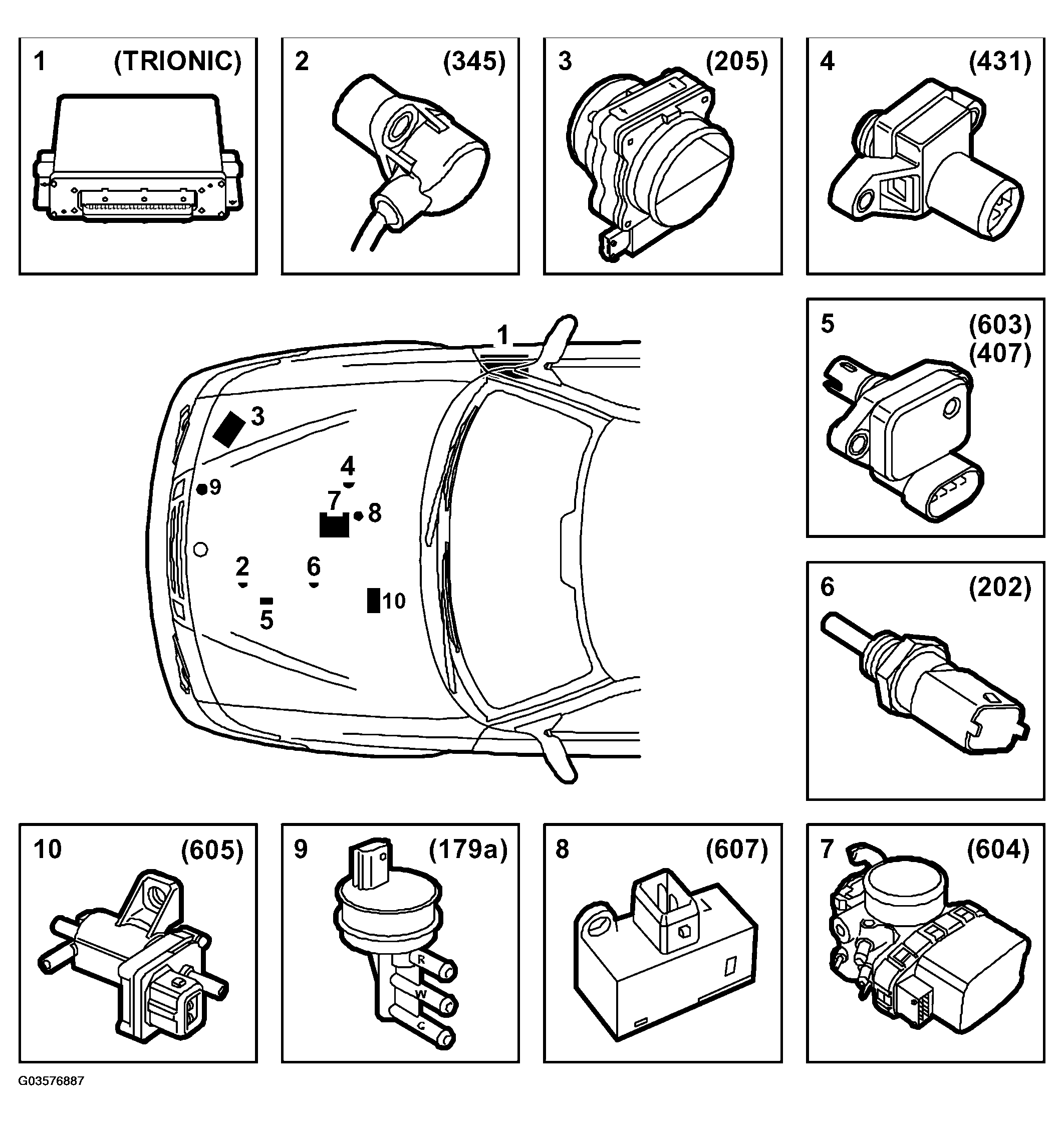

Main components
- Control module (589), see CONTROL MODULE
- CRANKSHAFT POSITION SENSOR (345) , see CRANKSHAFT POSITION SENSOR
- MASS AIR FLOW SENSOR (205) , see MASS AIR FLOW SENSOR
- MANIFOLD ABSOLUTE PRESSURE SENSOR (431) , see MANIFOLD ABSOLUTE PRESSURE SENSOR
- CHARGE AIR ABSOLUTE PRESSURE SENSOR (603) , see CHARGE AIR ABSOLUTE PRESSURE SENSOR
INTAKE AIR TEMPERATURE SENSOR (407) , see INTAKE AIR TEMPERATURE SENSOR
- COOLANT TEMPERATURE SENSOR (202) , COOLANT TEMPERATURE SENSOR
- Throttle body (604), see THROTTLE CONTROL/ PEDAL POSITION SENSOR
- LIMP-HOME SOLENOID (607) , see Throttle control/Pedal position sensor.
- CHARGE AIR CONTROL VALVE (179A) , see TURBO CONTROL
- CONTROL VALVE, BYPASS (605) , see CONTROL VALVE, BYPASS

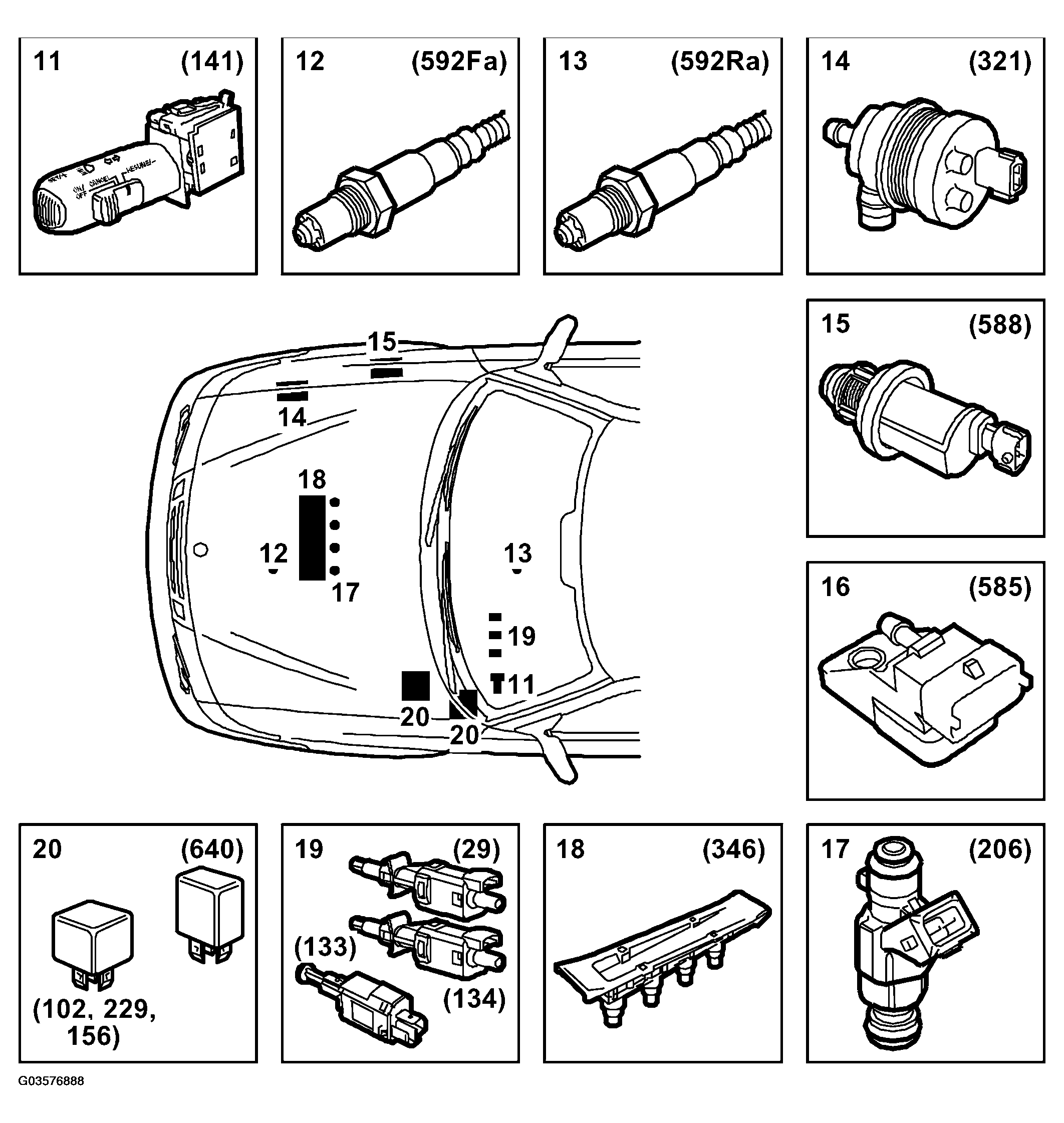

- SWITCH, CRUISE CONTROL (141) , see CRUISE CONTROL
- Oxygen sensor 1 (592Fa), see CLOSED LOOP
- Oxygen sensor 2 (592Ra), see CLOSED LOOP
- EVAP canister purge valve (321) , see PURGING
- Shut-off valve, EVAP canister (588), see PURGING
- Tank differential pressure sensor (585), see PURGING
- INJECTORS (206) , see INJECTORS
- IGNITION DISCHARGE MODULE (346) , see IGNITION DISCHARGE MODULE
- CLUTCH PEDAL SWITCH (133) , see CRUISE CONTROL
BRAKE PEDAL SWITCH (134) , see CRUISE CONTROL
Brake light switch (29), see CRUISE CONTROL
- MAIN RELAY (229) , see MAIN RELAY
Fuel pump relay (102), see FUEL PUMP RELAY
RELAY, LIMP-HOME SOLENOID (640) , see TURBO CONTROL
A/C relay (156), see A/C RELAY
(A/C relay is mounted in engine bay relay board.)
