2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

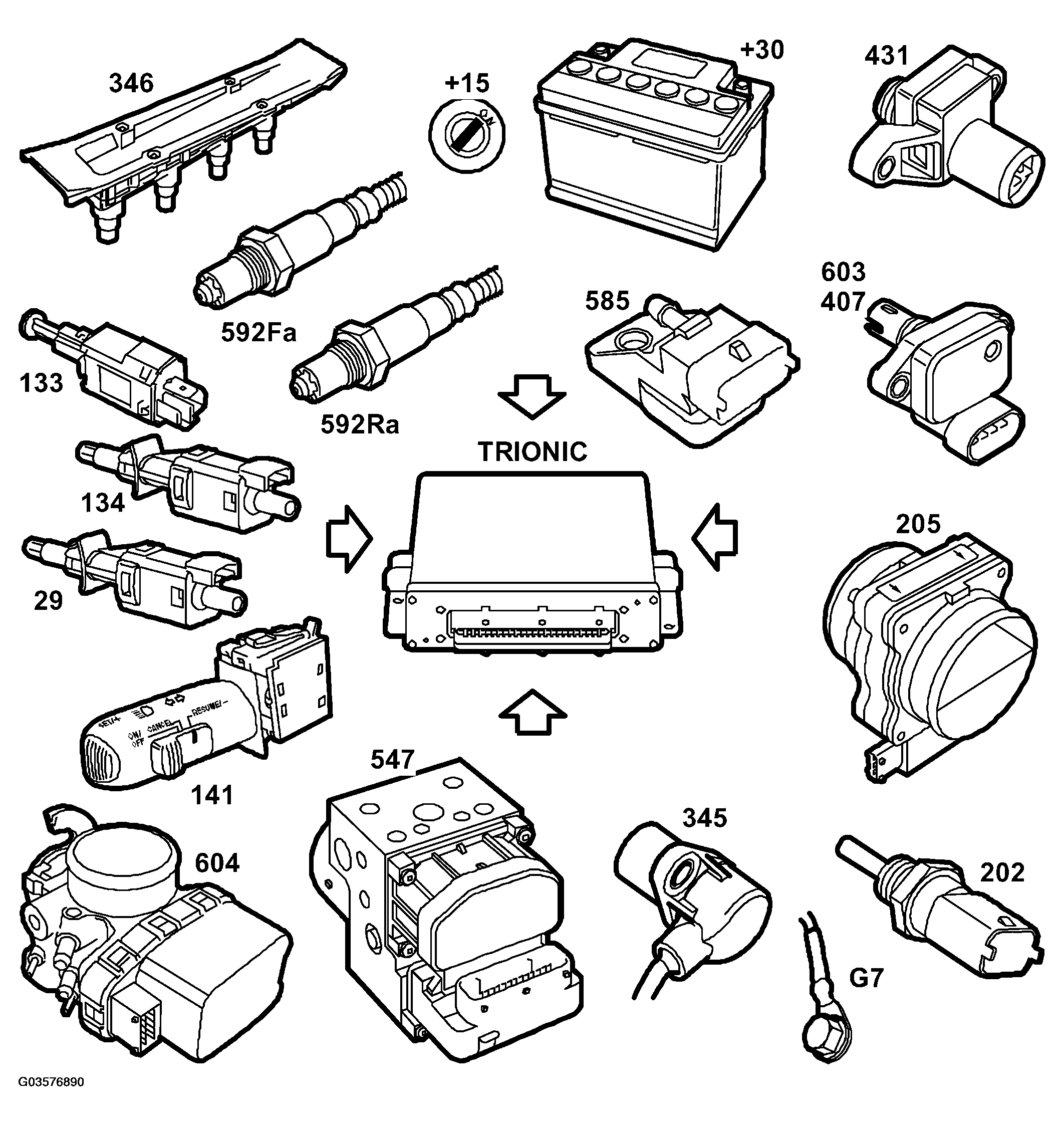

Control module inputs
- Power supply +30, see CONTROL MODULE POWER SUPPLY
- Power supply +15, see CONTROL MODULE POWER SUPPLY
- Power ground, see GROUND
- MASS AIR FLOW SENSOR (205) , see MASS AIR FLOW SENSOR
- MANIFOLD ABSOLUTE PRESSURE SENSOR (431) , see MANIFOLD ABSOLUTE PRESSURE SENSOR
- CHARGE AIR ABSOLUTE PRESSURE SENSOR (603) , see CHARGE AIR ABSOLUTE PRESSURE SENSOR
- INTAKE AIR TEMPERATURE SENSOR (407) , see INTAKE AIR TEMPERATURE SENSOR
- Tank differential pressure sensor (585), see PURGING
- COOLANT TEMPERATURE SENSOR (202) , COOLANT TEMPERATURE SENSOR
- Speed, wire from ABS (547), see SPEED, WIRE FROM ABS
- Maximum permissible torque, wire from ABS (547), see SPEED, WIRE FROM ABS
- Pedal position sensor, see PEDAL POSITION SENSOR
- Switch, cruise control, see CRUISE CONTROL
- Pedal switches, see CRUISE CONTROL
- Throttle position sensor, see THROTTLE CONTROL
- Oxygen sensor 1 (592Fa), see CLOSED LOOP
- Oxygen sensor 2 (592Ra), see CLOSED LOOP
- IGNITION DISCHARGE MODULE (346) , see IGNITION DISCHARGE MODULE
