2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

Trionic T7 control module (430b/589b)

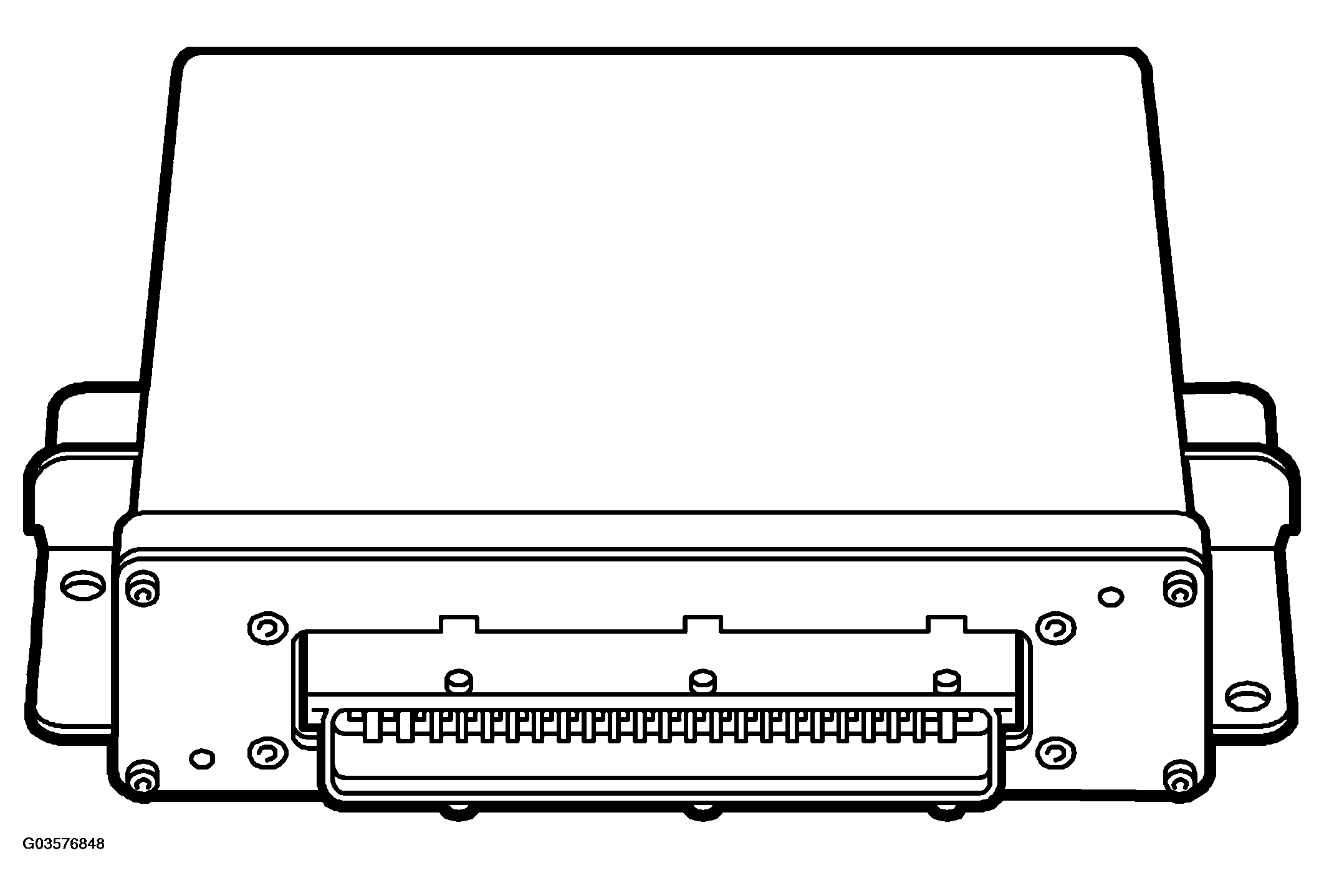

Fig 1: Identifying Trionic T7 Control Module (430B/589B)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - TRIONIC T7 CONTROL MODULE

Location		On right-hand side of cabin behind side trim under A-pillar.
No. of pins		70
Power supply +30	Pin no.	23
Power supply +15	Pin no.	43
Power supply from main relay	Pin no.	1
Power ground	Pin no.	25, 47 and 62
P-bus +	Pin no.	66
P-bus -	Pin no.	19
