2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

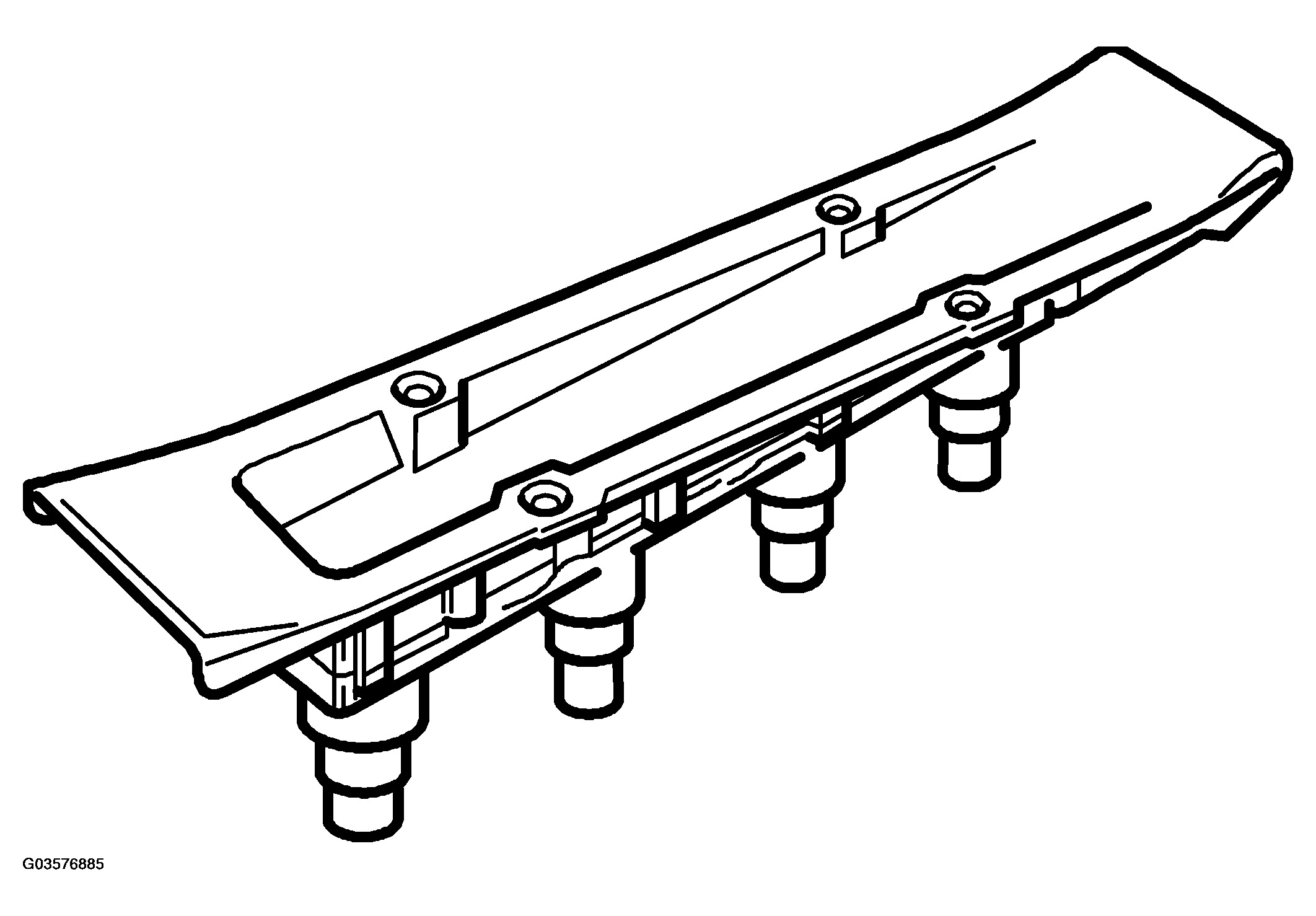

Ignition discharge module (346)
TECHNICAL DATA - IGNITION DISCHARGE MODULE
| Location | On camshaft cover | |
| No. of pins | 10 | |
| Power supply | V | 12 |
| Capacitor voltage | V | 400 |
| Ignition voltage, max. | V | 40000 |
| Firing order | 1-3-4-2 | |
| Ionization voltage | V | 80 |
NOTE:
Cars equipped with T7 LEV must only be fitted with the new ignition discharge module (from MY00). The new module can, however, be used on older model years.
