To remove
- Turn the ignition to the OFF position.

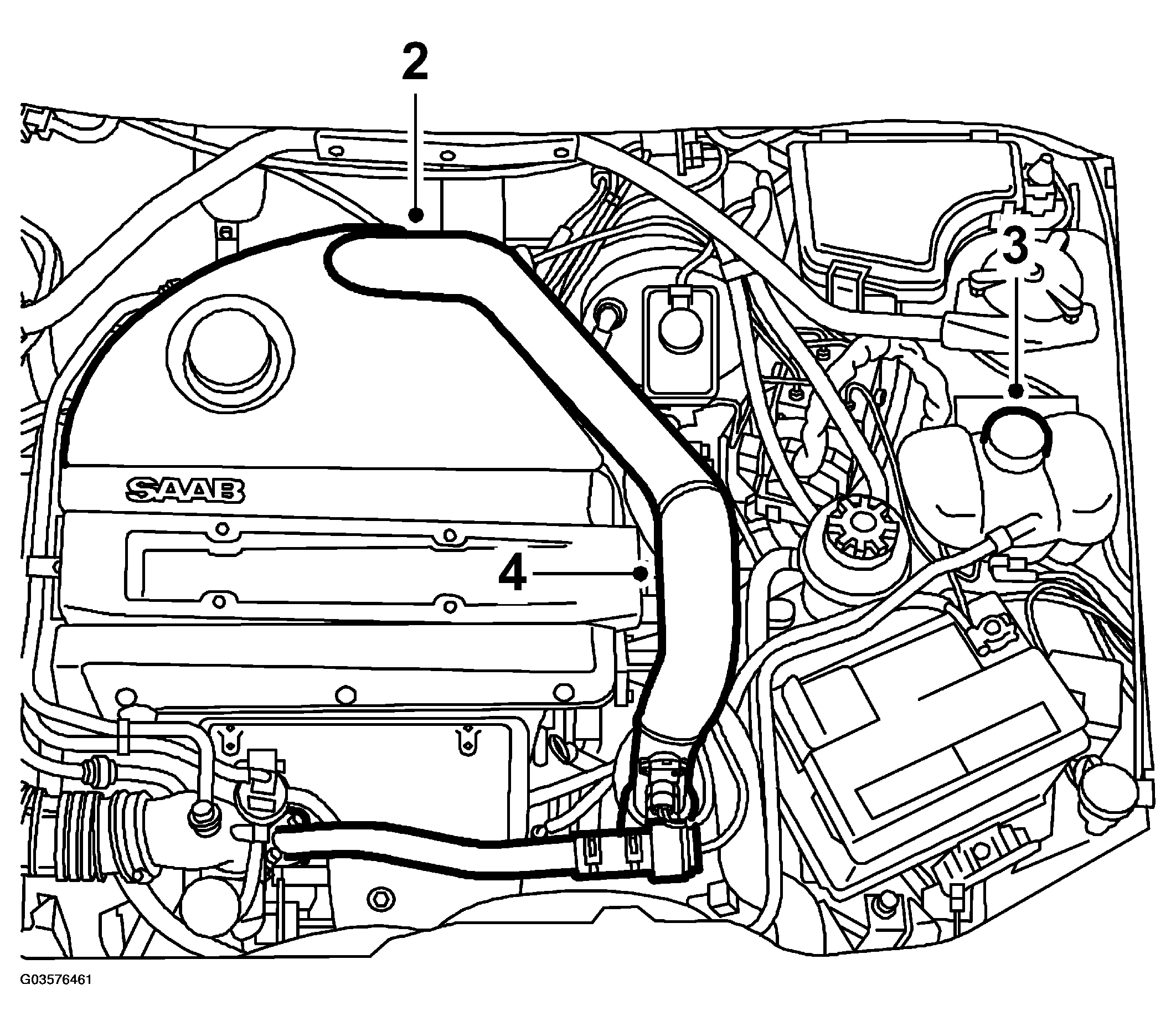

- Remove the top engine cover.
- Undo the coolant expansion tank cap to release any pressure and then retighten it.

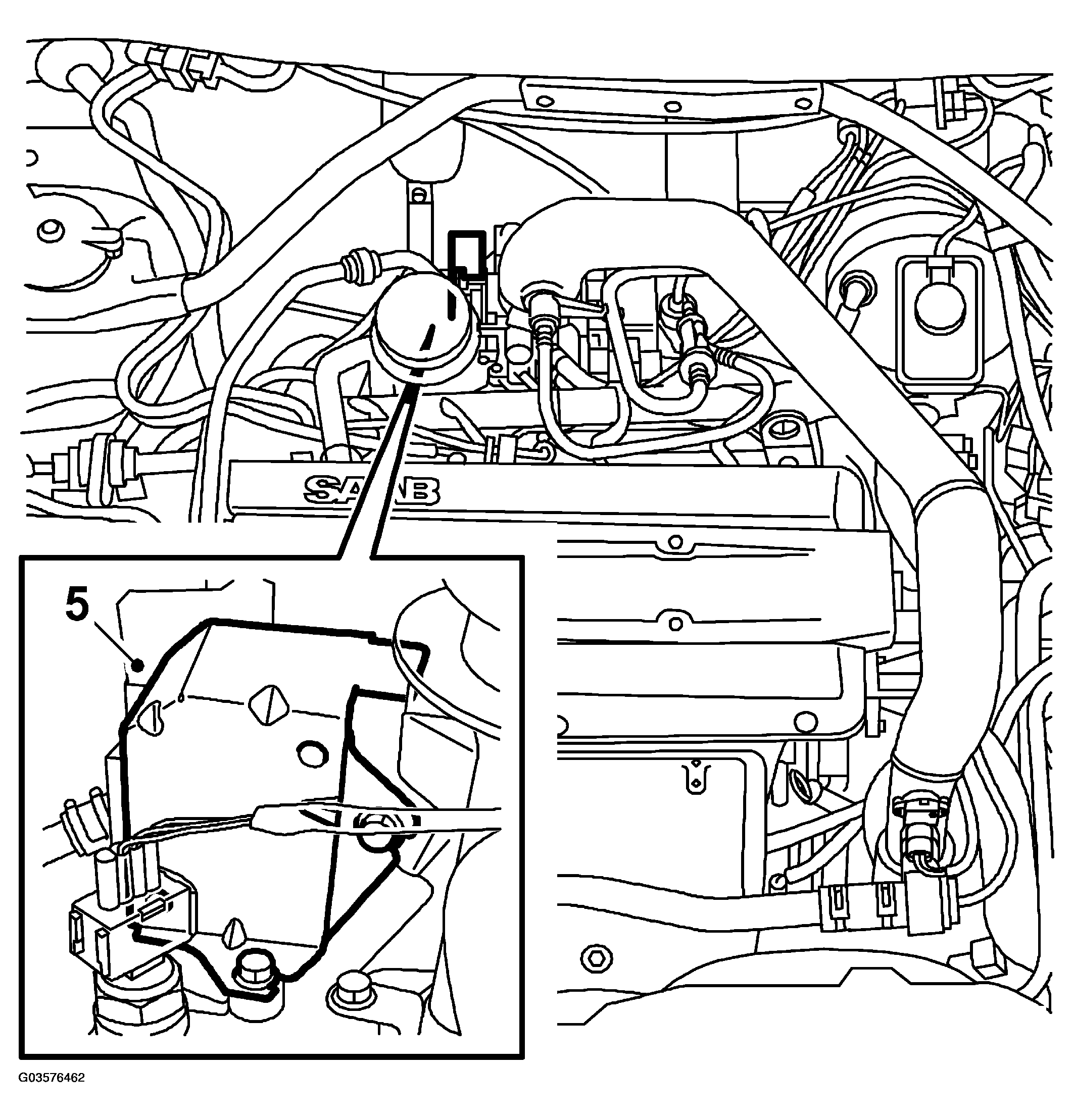

- Undo the connector to the pressure/temperature sensor. Remove the turbo delivery pipe complete with bypass pipe and bypass valve.
Man: Undo the venturi hose from the charge air pipe.

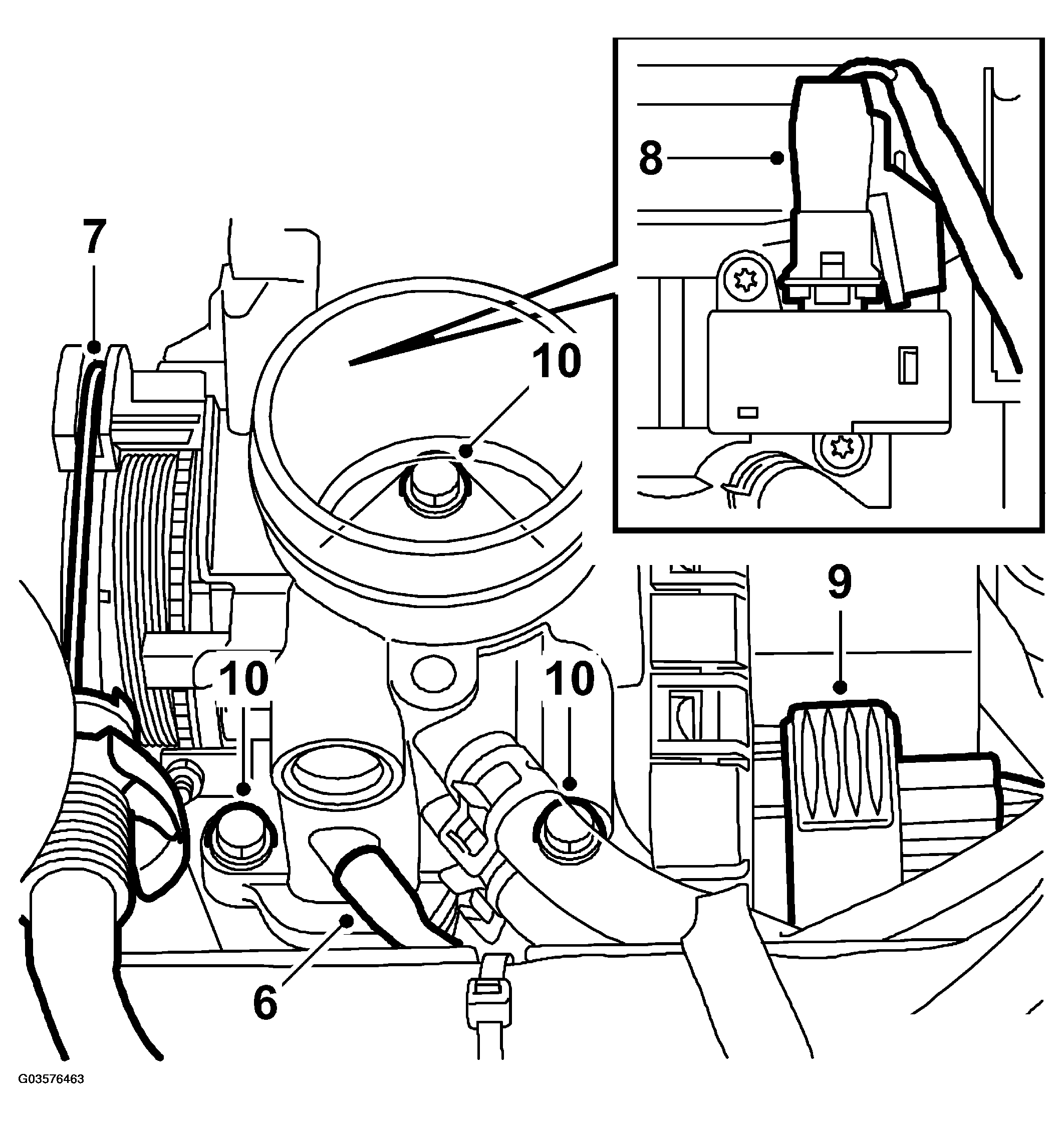

- Remove the cover on the throttle body pedal arm.
- Detach the hose for the bypass valve.
- Detach the accelerator pedal wire from the throttle body pedal arm.
- Remove the rubber seal and undo the limp-home solenoid connector.
- Unplug the throttle body 10-pin connector.

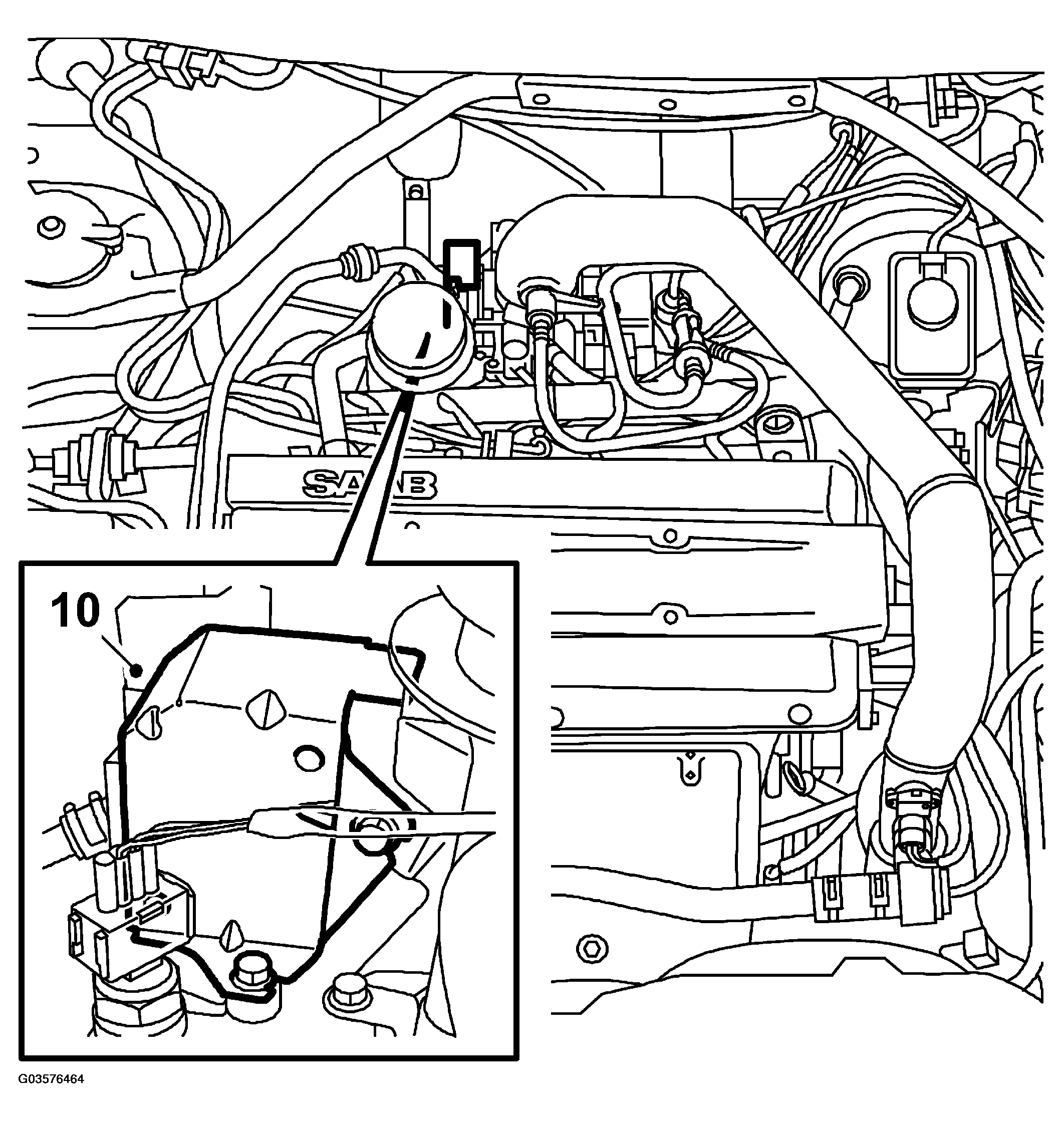

- Undo the 3 throttle body retaining screws.

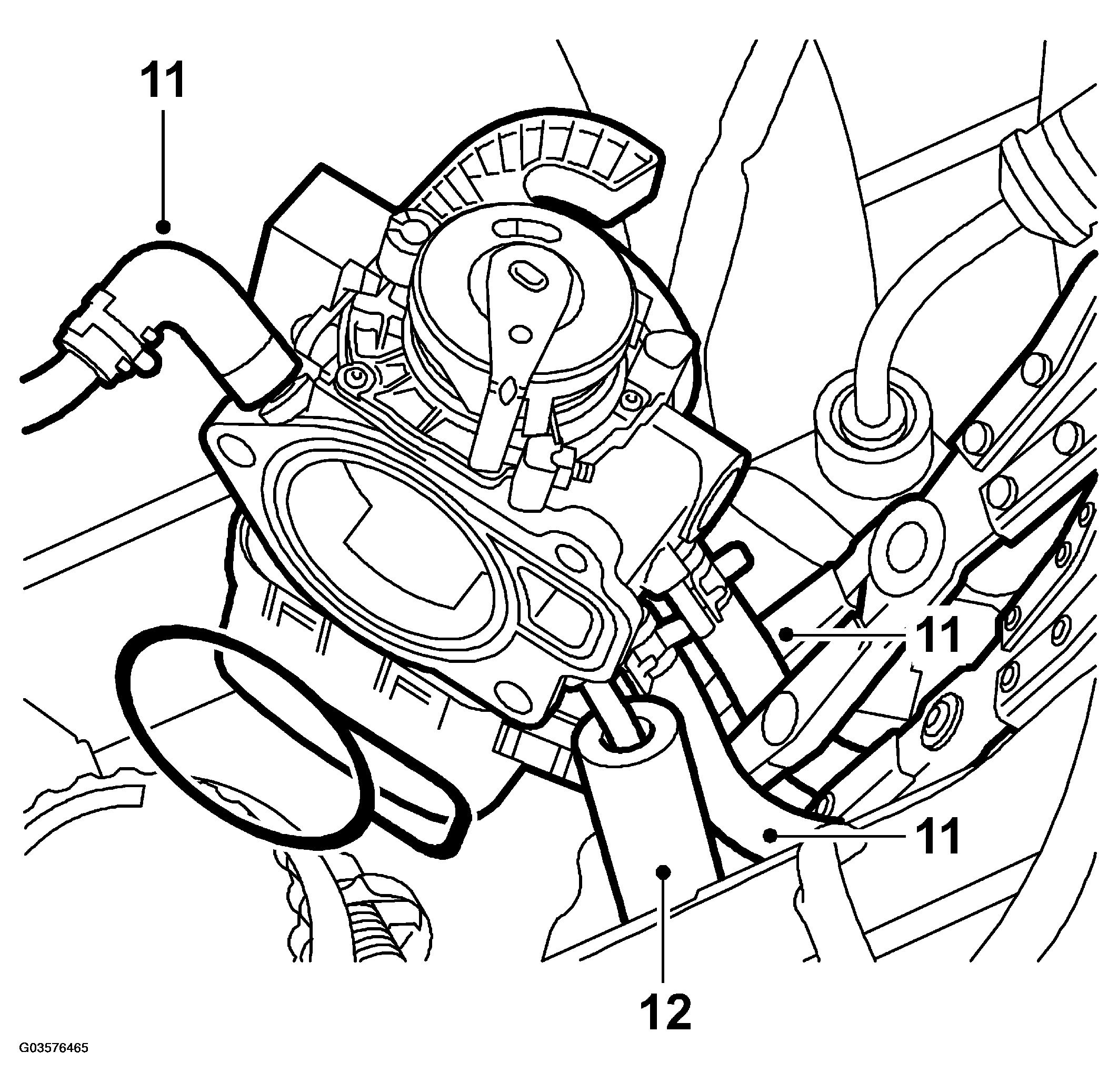

- Lift up the throttle body, clamp and detach the 2 coolant hoses to the throttle body and detach the hose under the limp-home solenoid.
- Detach the lower vacuum hose.
