2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE
To remove

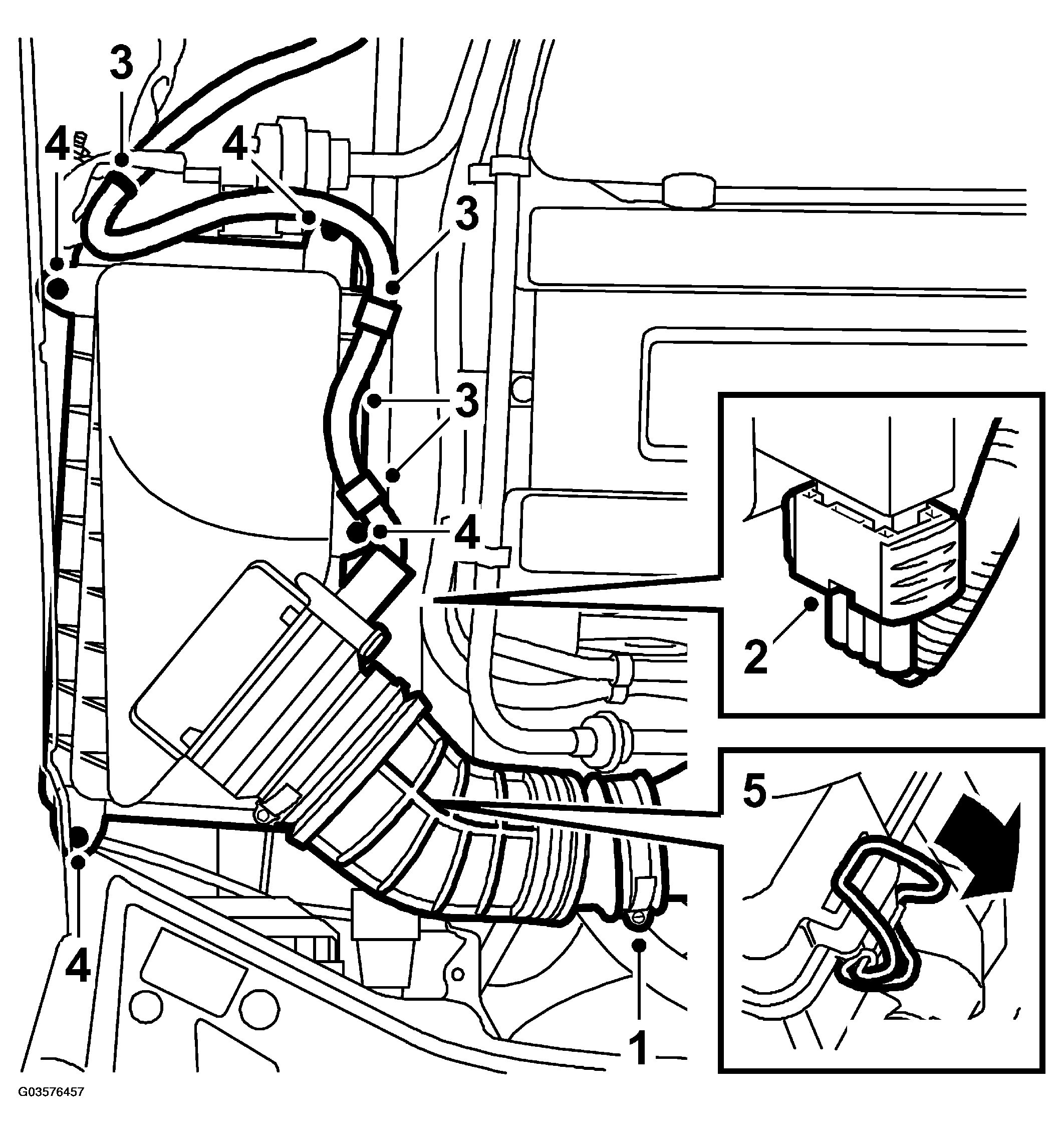

- Undo the hose clip between the connecting hose and the turbo inlet pipe.
- Unplug the connector from the mass air flow sensor.
- Detach the mass air flow sensor cable from the cable clips on the top of the air collection box.
- Remove the top of the air collection box by undoing the snap fasteners and the 4 screws.
- Lift off the top of the air collection box.

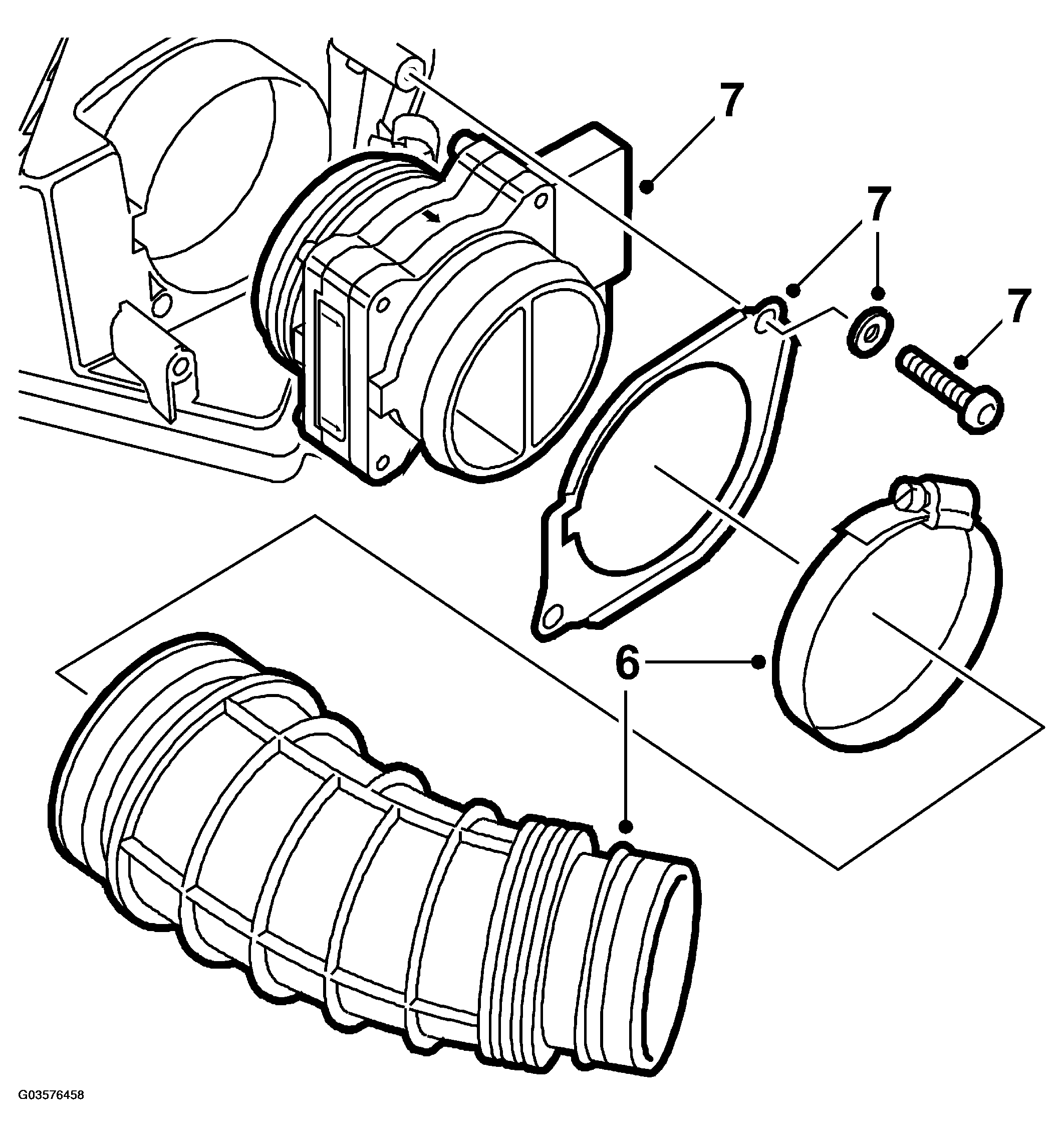

- Detach the hose from the mass air flow sensor by undoing the clip.
- Remove the mass air flow sensor, 2 screws.
