2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE
To remove

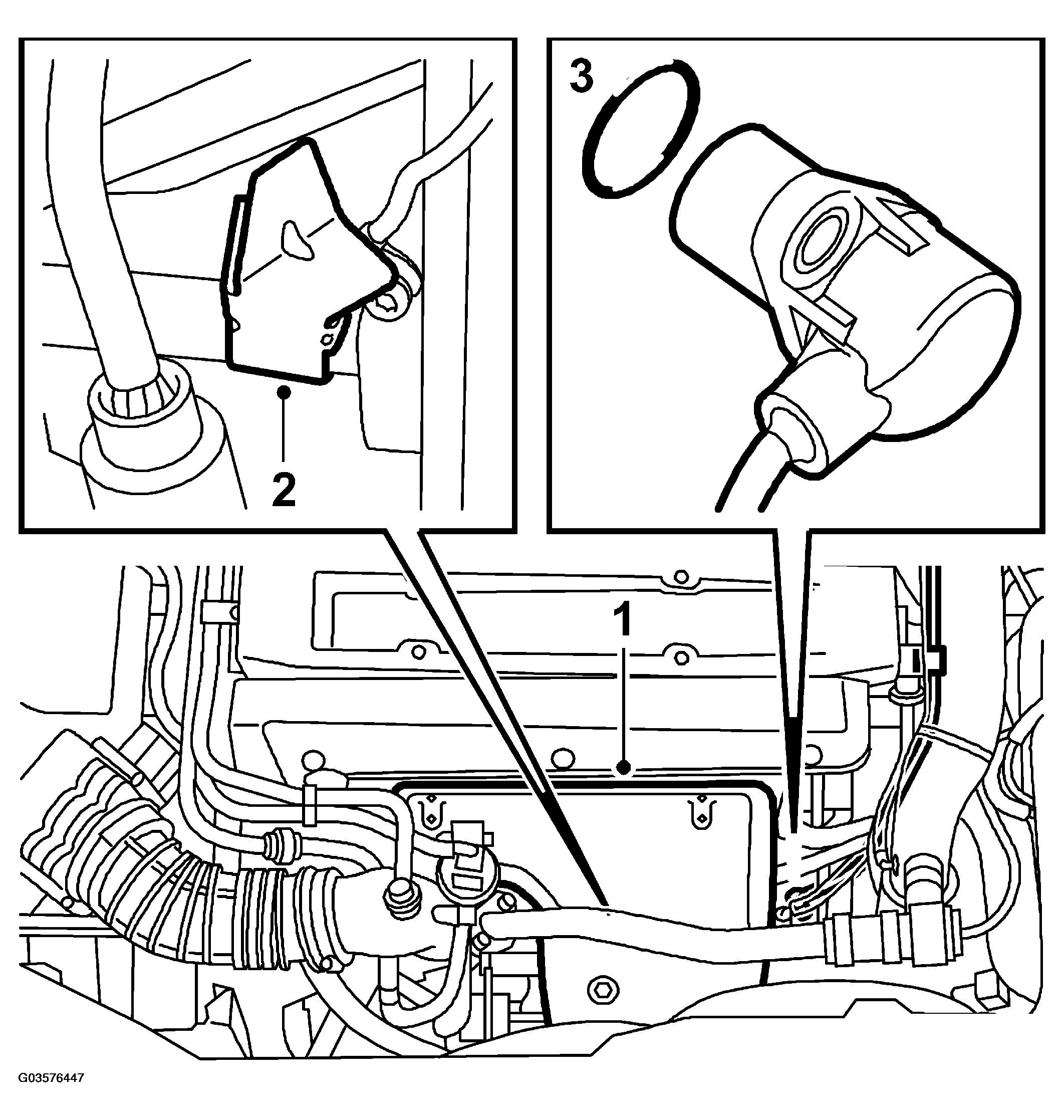

- Undo the exhaust manifold heat shield and the bypass pipe with valve.
- Undo the screw securing the heat shield and sensor.
- Detach the sensor and O-ring.

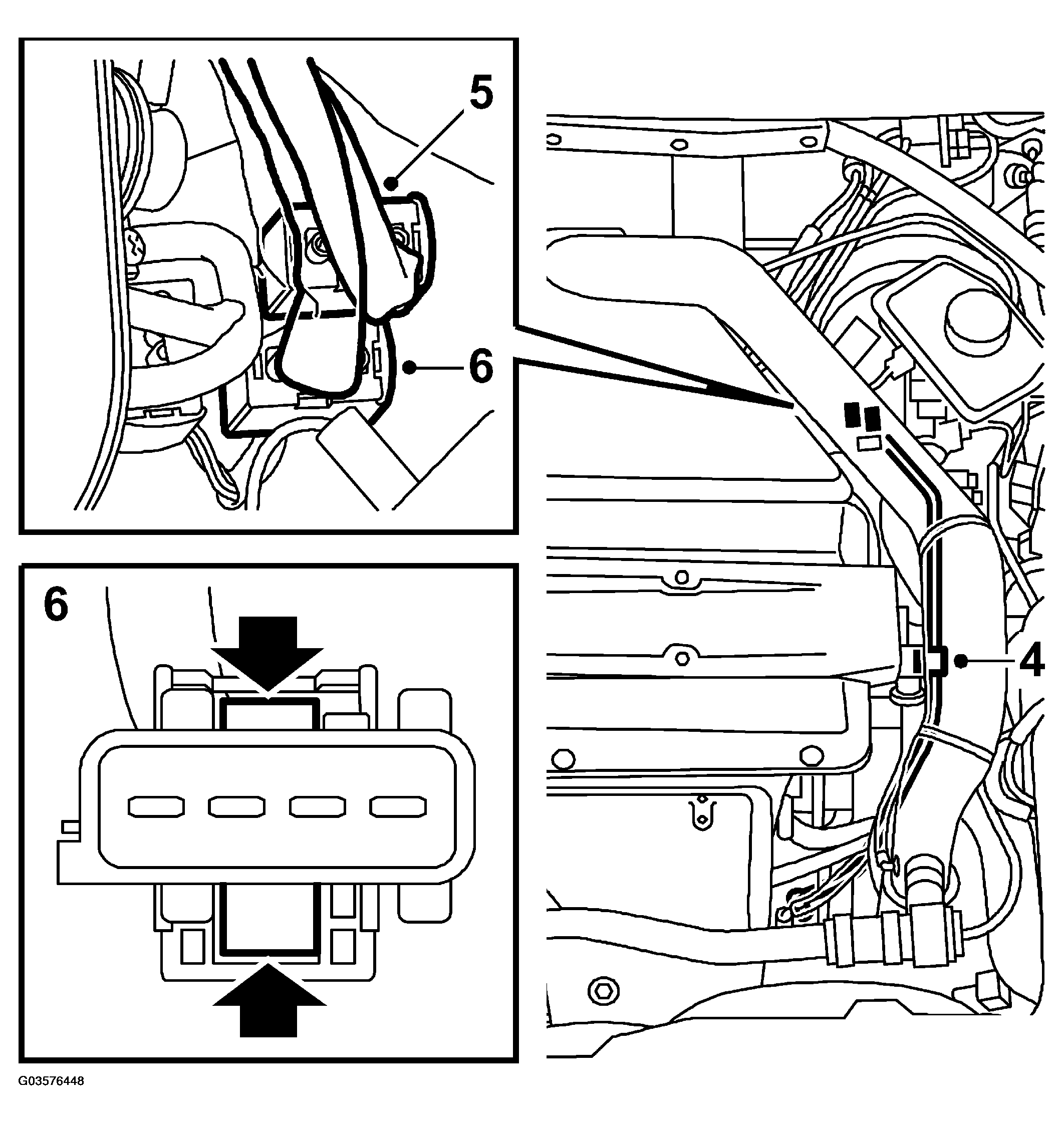

- Follow the sensor connecting cable and undo the clip on the water pipe.
- Unplug the top part of the connector for the front oxygen sensor.
- Unplug the top part of the connector for the position sensor and then detach the connector from the holder by carefully pressing in the catches with a small screwdriver.
- Remove the position sensor.
