2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

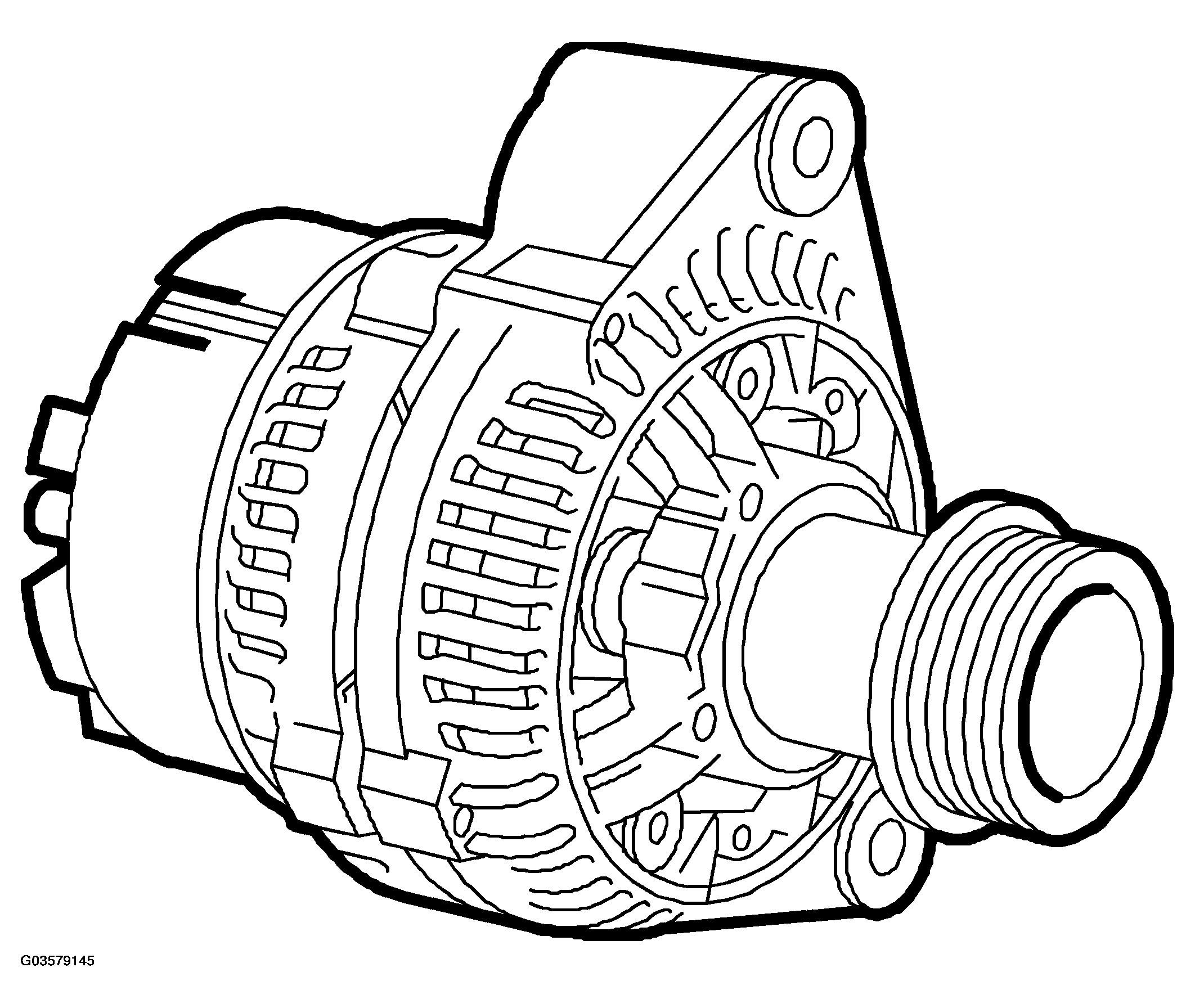

Generator 120A
GENERATOR 120A SPECIFICATIONS
| Type designation | Bosch NC 14V 70-120A |
| Rated voltage | 14 V |
| Stator connection | Star |
Diameter of slip rings
|
15.4 mm 14.4 mm |
Max. permissible radial runout:
|
0.2 mm 0.02 mm 0.087 mm |
| Min. length of brushes, from lip of brush holder | 7.5 mm |
| Pulley ratio, engine/generator | 1:2.9 |
TEST READINGS
| Test readings | |
| Resistance, rotor winding (at 25°C) Resistance, stator between phases (at 25°C) |
2.6 Ohm 0.051 Ohm |
| Generator speed/stated current at: 1800 RPM 6000 RPM |
70A 120A |
