2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

Main purpose: Connection

PINS DESCRIPTION

Pin no. Signal type Description
10 +30 Β
20 Ground Β
4, 5 Microphone Β
1, 2 GPS or AMPS antenna Β
1 O-bus Reception. Own connection
2 O-bus Transmission. Own connection

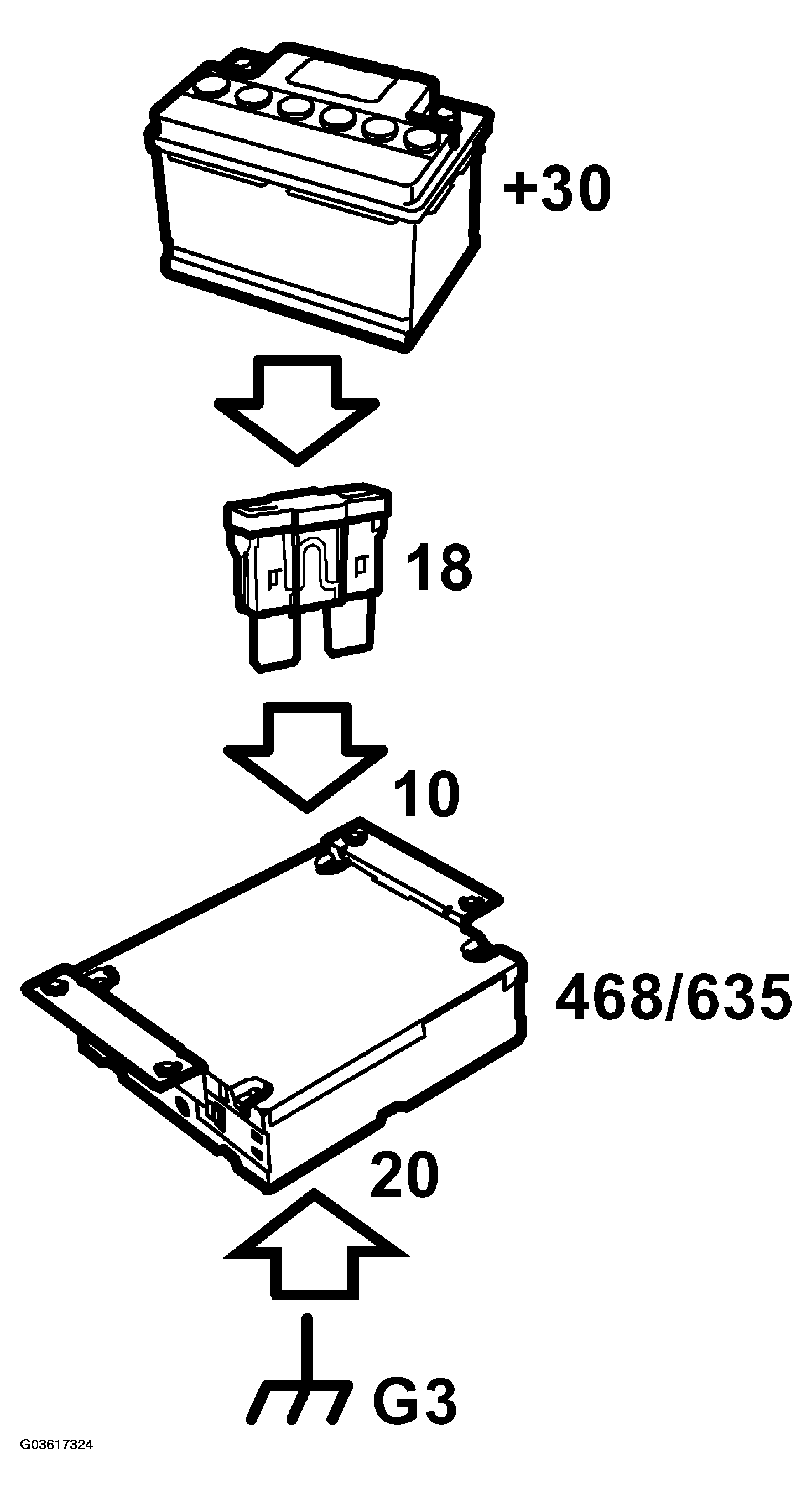

Fig 1: Identifying Fuse Location
G03617324Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram

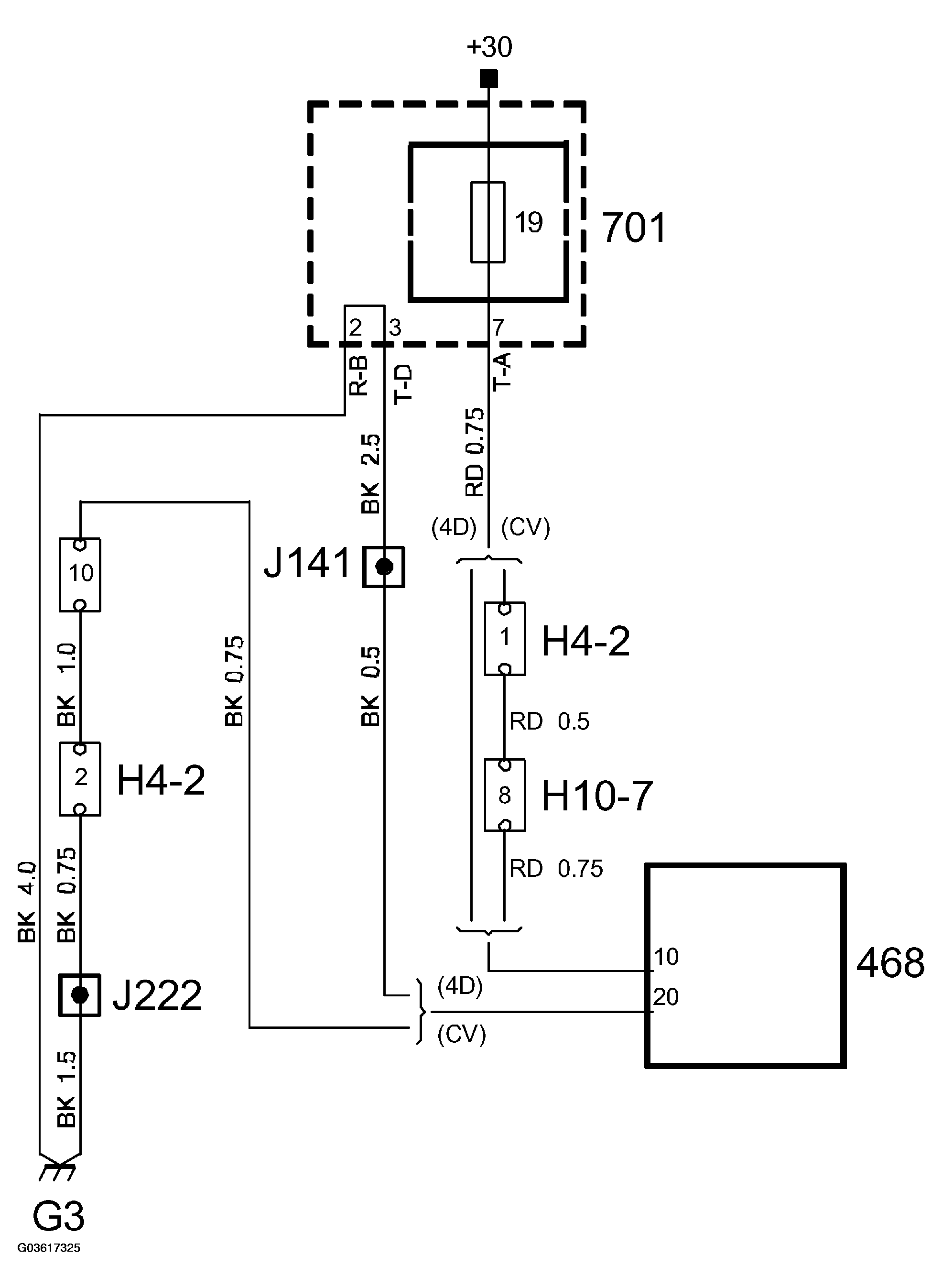

Fig 2: Navigation Unit Wiring Diagram
G03617325Courtesy of SAAB-SCANIA OF AMERICA, INC.
