2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

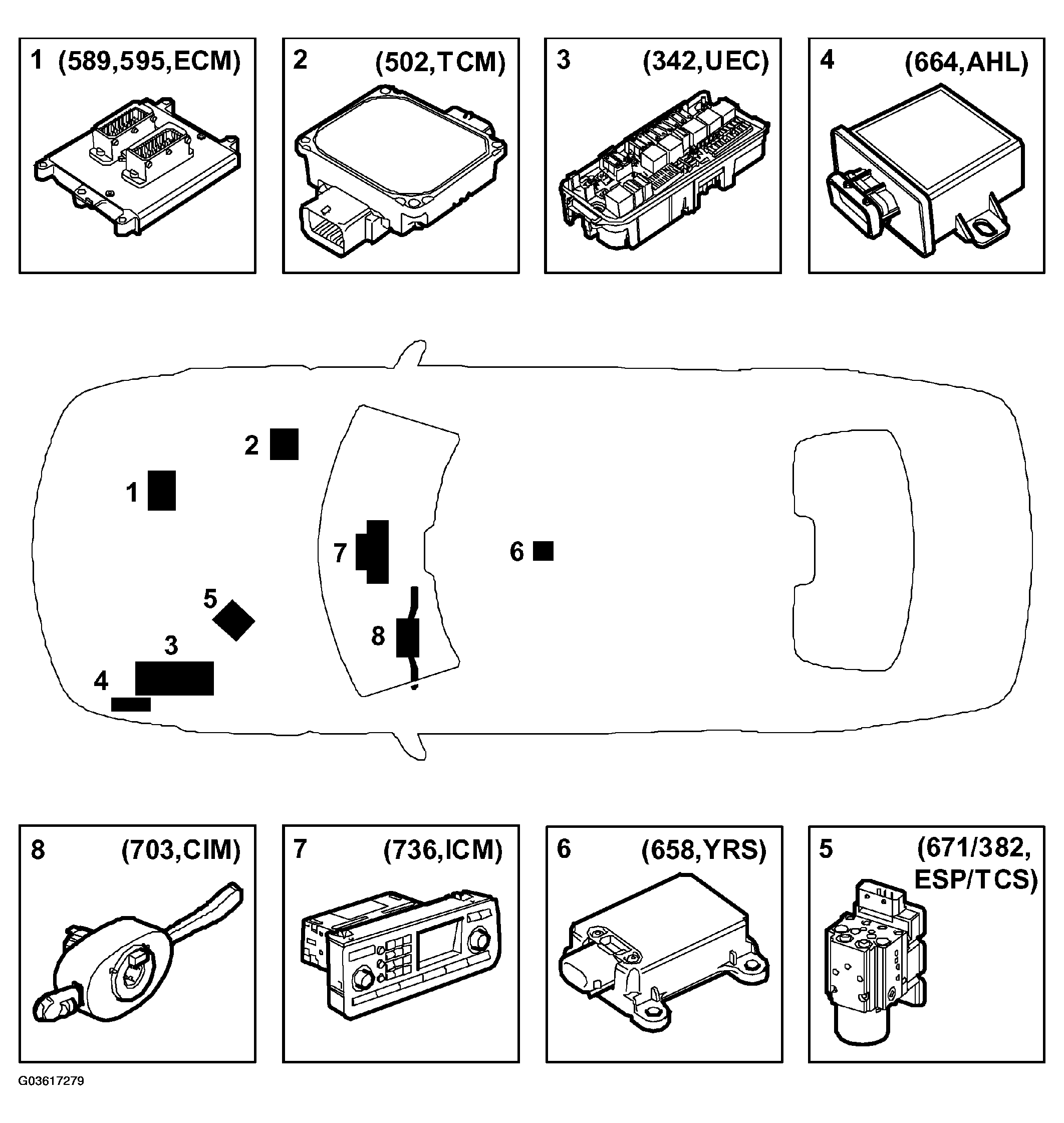

Bus-connected control modules: P-bus
- The engine control module (589/595) is located in front on the engine.
- TCM control module (502) is located on the console between the battery and engine.
- Engine bay main fuse box (342) is located between the battery and the left-hand front wing.
- AHL control module (664) is located behind the left-hand headlamp unit.
- ESP/TCS control module (671/382) is integrated in the hydraulic unit behind the main fuse box 342.
- Yaw sensor (658) is located on the center tunnel under the gear selector unit.
- Infotainment control panel, ICM (736) is located under SID.
- Column Integration Module, CIM (703a) is integrated in the steering column unit.
