2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

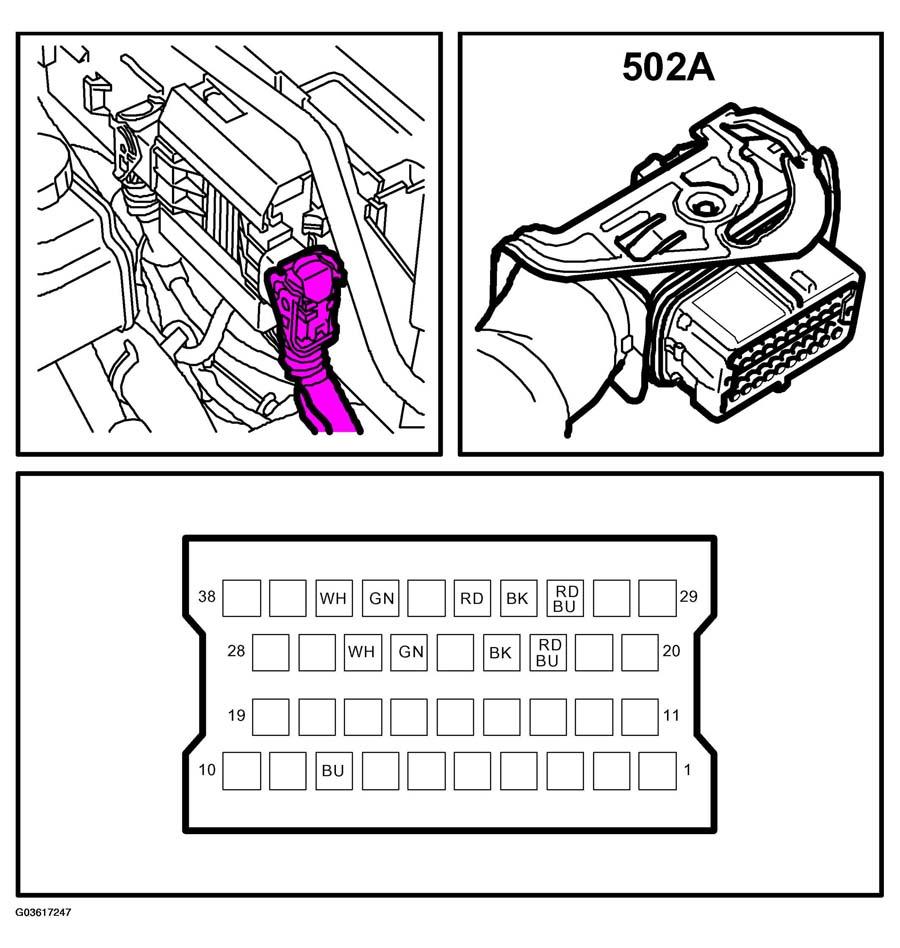

Table connector A
TRANSMIT SIGNALS
| Pin, connector A (control module) | Component/ Function | In/Out | Test conditions | Test between | Test reading |
|---|---|---|---|---|---|
| 8 | Manual up and down shifting | in | Ignition ON. | 8- ground | 0.9V |
| 8 | Manual up and down shifting | in | Ignition ON. Shift up | 8- ground | 1.4V |
| 8 | Manual up and down shifting | in | Ignition ON. Shift down | 8- ground | 2.7V |
| 22 | Battery voltage +15 | In | Ignition ON | 22- ground | 12V |
| 23 | Ground | In | 23-B+ | 12V | |
| 24 | No connection | ||||
| 25 | Bus+ | In/Out | |||
| 26 | Bus | in/out | |||
| 31 | Battery voltage +15 | In | Ignition ON | 31- ground | 12V |
| 32 | Ground | In | 32-B+ | 12V | |
| 33 | Battery voltage +30 | In | 33- ground | 12V | |
| 35 | Bus +lead 2 | In/Out | |||
| 36 | Bus-lead 2 | In/Out |
*A vehicle speed reading can be obtained with the diagnostics instrument, command menu "Read functions" and "Output speed".
