COMPONENT FUNCTION

Pin (refers to the control module)	Color	Component / Function	In / Out	Measurement requirement.	Measurement value	Measure between
1	GN/WH	Mass air flow sensor	Out		5 V	1-47
6	GN/WH	Level switch, engine oil	Out		< 0.1 V	6-B-
8	GY	Temperature sensor, coolant	Out		2.9 V	8-45
9	BU	Absolute pressure sensor	In		1.75 V	9-B-
10	BK/GN	Mass air flow sensor	In		1.1 V	10-B-
11	GY	Screen ground	In		< 0.1 V	11-B-
13	PK	Solenoid valve, charge air	Out		5.5 V	13-B-
14	WH	EGR	Out		10.3 V	14-B-
19	OG/WH	EGR	In		4.4 V	19-B-
21	BK	Temperature sensor, engine oil	Out		4.1 V	21-33
22	GN/WH	Intake air temperature	In		2.2 V	22-46
23	BK	Crankshaft sensor	In	Idling	1.6 V alternating current	23-35
24	GN/WH	Pressure switch, engine oil	Out	Idling	< 0.1 V B+	24-B-
27		L-Terminal		Idling	B+ < 0.5 V	27-B+
28	YE/BU	Main relay	Out		B+	28-B+
29	PK	Solenoid valve, engine shut-off	Out		B+	29-B-
33	BK	Temperature sensor, engine oil	In		4.1 V	33-21
34	BK	Level sensor, fuel	In		B+	34-B+
35	YE	Crankshaft sensor	In	Idling	1.6 V alternating current	35-23
39	BU/WH	Power supply, Map	Out		5 V	39-B-
42	PK	Solenoid valve, engine shut-off	Out		B+	42-B-
43	BN/WH	Solenoid valve, combustion circulation	Out		5.3 V	43-B-
45	BK	Temperature sensor, coolant	In		2.9 V	45-8
46	BK	Map, sensor ground	In		5 V	46-39
47	BU	Mass air flow sensor, reference ground	In		5 V	47-1
48	GY	Level sensor, fuel	Out		1 V	48-34

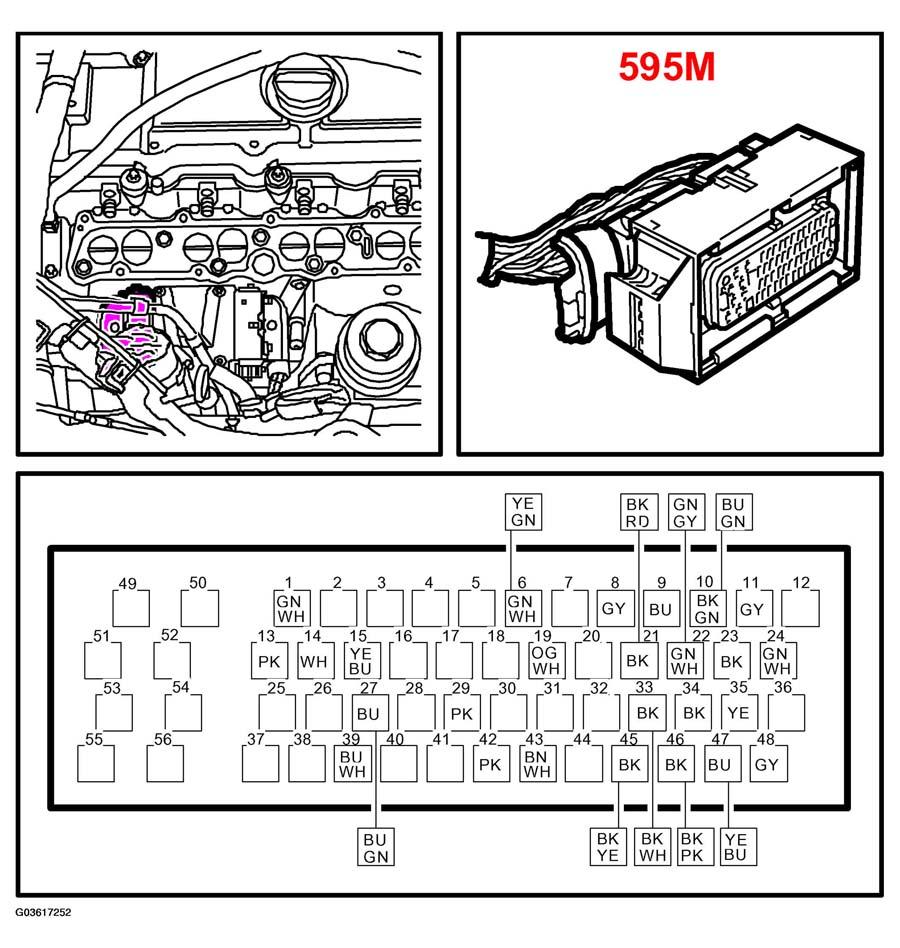

Fig 1: Identifying Connector M

Courtesy of SAAB-SCANIA OF AMERICA, INC.
