To remove
- Perform Preparations prior to removing a control module.
- Remove the Front door trim.
- Lay the side of the door on a clean and soft surface.
- When changing the driver door module: Remove the cell block from under the door module.

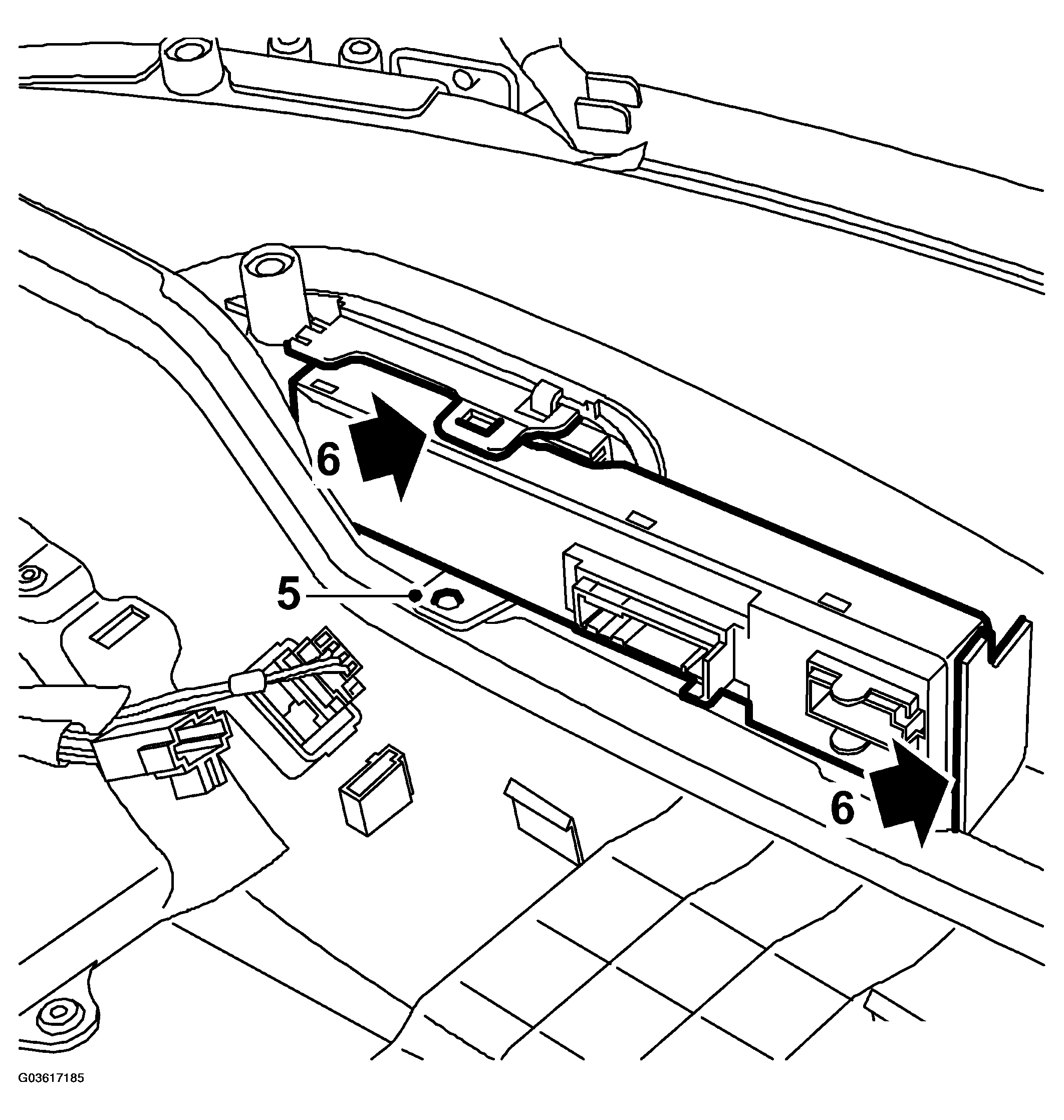

- When changing the driver door module: Remove door trim screw.
- Remove the door module using a screwdriver. First undo the rear clip.
Then undo the clips on the outer and inner sides of the door module. Pull the module carefully back/down.
