IONIZATION DETECTION MODULE - CONNECTION DESCRIPTION

Pin No.	Signal type	Description
1	Ignition trigger cylinder 4, in	Synchronization of ionization current measurement for cylinder 4
2	Ignition trigger cylinder 3, in	Synchronization of ionization current measurement for cylinder 3
3	Knock signal, out	Knock signal, raw value to ECM
4	Combustion signal 1, out	Combustion signal, raw value to ECM
5	n/c
6	n/c
7	Ionization signal 2, in	Ionization signal from ignition coil cylinder 2
8	Ionization signal 3, in	Ionization signal from ignition coil cylinder 3
9	Ignition trigger cylinder 1, in	Synchronization of ionization current measurement for cylinder 1
10	Ignition trigger cylinder 2, in	Synchronization of ionization current measurement for cylinder 2
11	Combustion signal 2, out	Combustion signal, raw value to ECM
12	B+	Power supply B+ from main relay
13	B-	power supply B- from grounding point G7
14	n/c
15	Ionization signal 4, in	Ionization signal from ignition coil cylinder 4
16	Ionization signal 1, in	Ionization signal from ignition coil cylinder 1

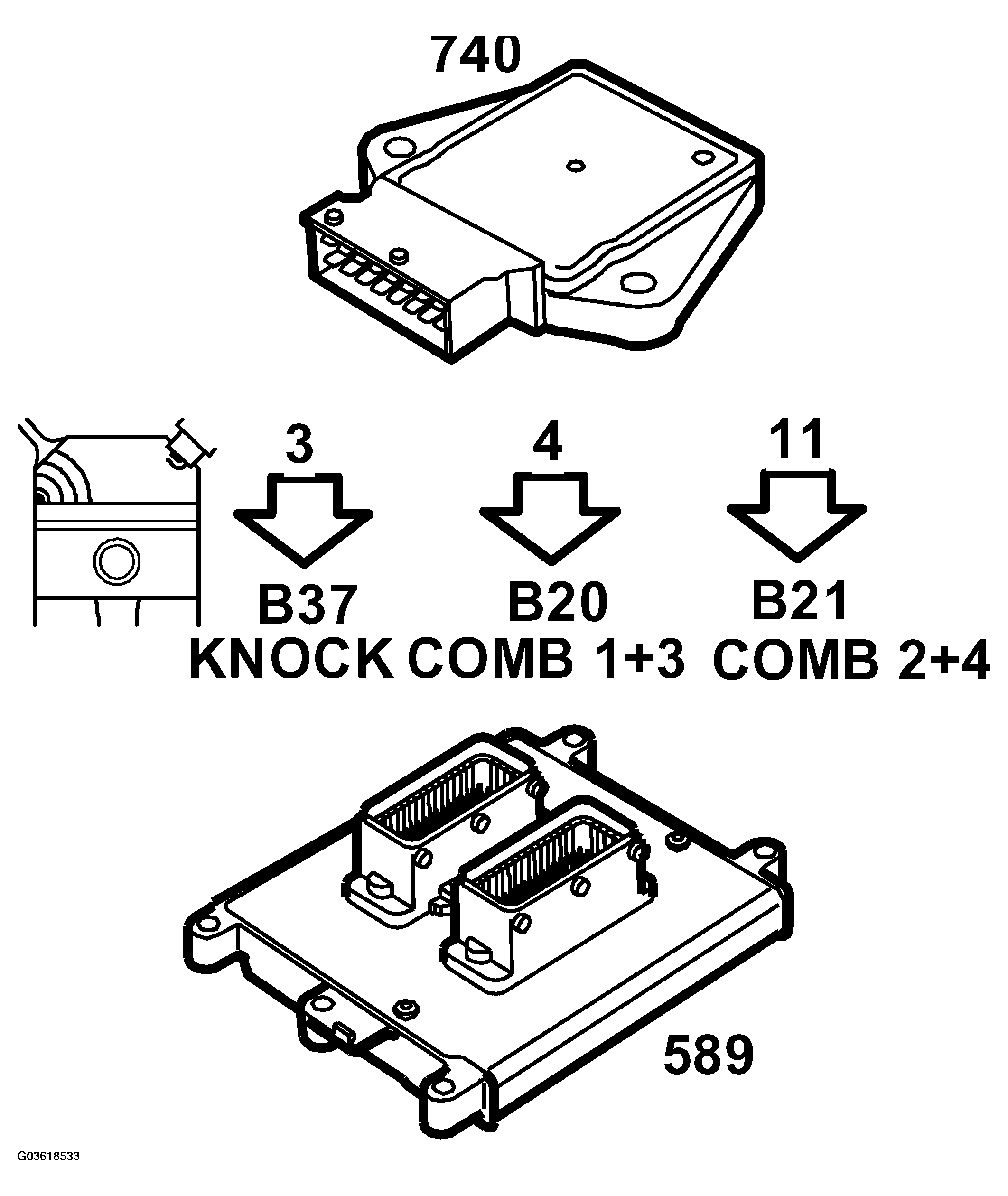

Fig 1: Identifying Communication Flow - Ionization Detection Module (1 Of 3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
