DVD unit (729): Connection: Notes

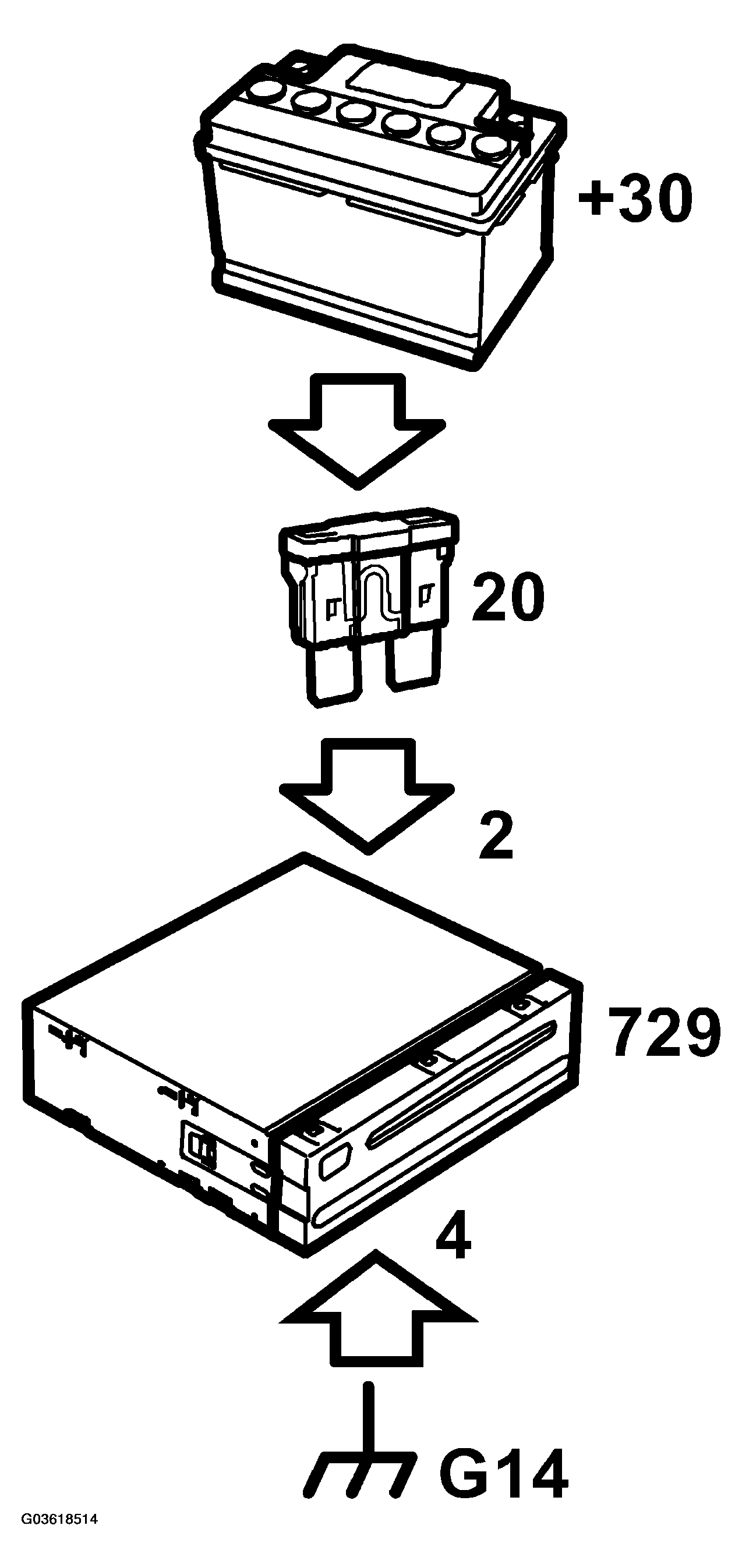

The DVD unit is supplied with +30 on pin 2 and grounded on pin 1. The O-bus has its own connection where pin 1 receives the signal and 2 transmits the signal.
| Pin no. | Signal type | Description |
|---|---|---|
| 1 | Ground | |
| 2 | +30 | |
| 1 | O-bus | Reception. Own connection. |
| 2 | O-bus | Transmission. Own connection. |
