2003 Saab 9-3 Vector, AutomaticFACTORY OEM SERVICE PROCEDURE

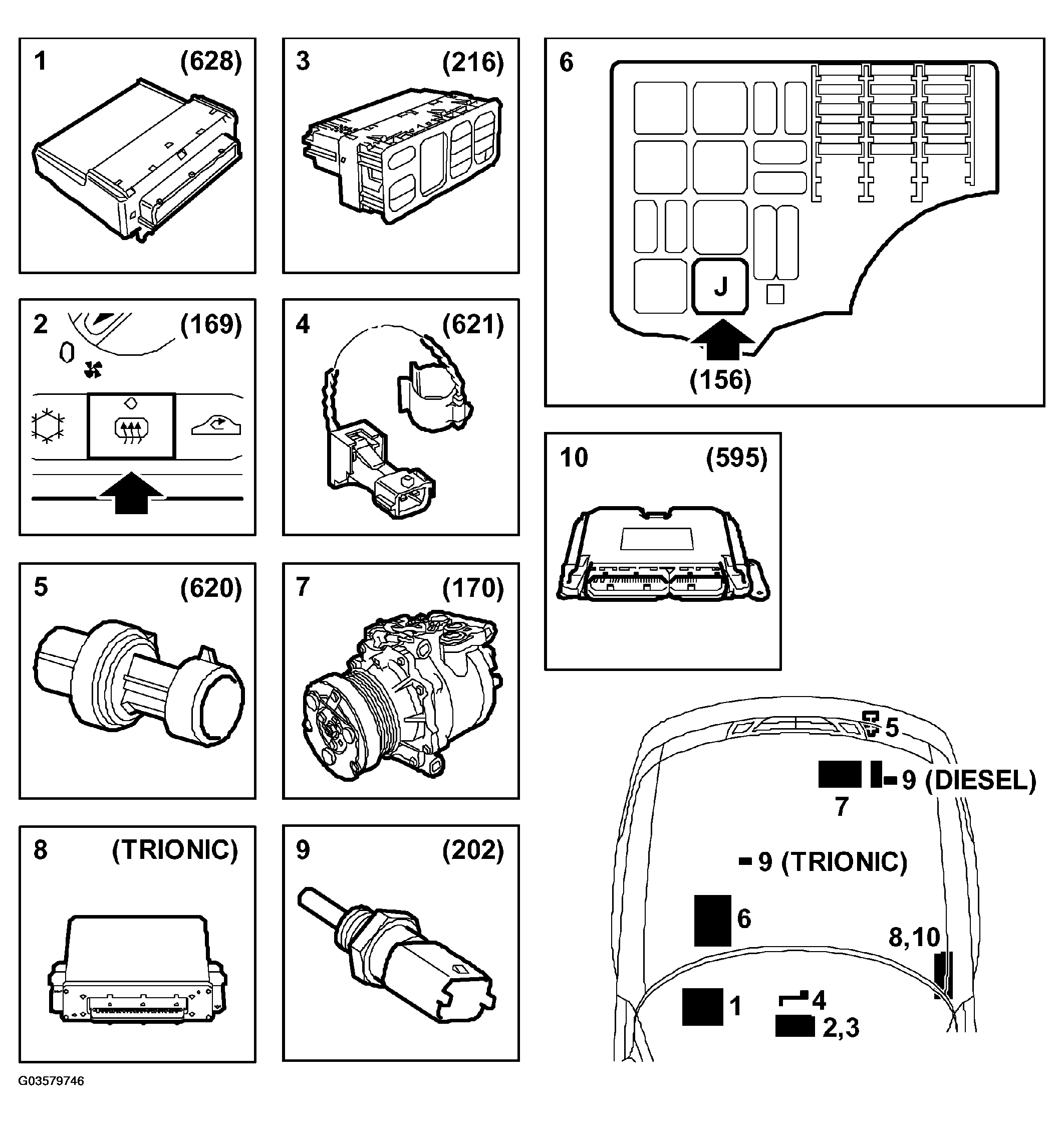

Main components, A/C function
- CONTROL MODULE, DICE (628)
- Switch, A/C (169)
- Control module, ACC (216)
- Temperature sensor, A/C evaporator (621)
- Pressure sensor, A/C (620)
- Relay, A/C compressor (156)
- Compressor, A/C (170)
- Engine management system, petrol (430a, 589a)
- Engine coolant temperature sensor (202)
- Engine management system, diesel (595)
- Engine coolant temperature sensor (45)
