2001 Saab 9-3 Base, 2D Hatchback, AutomaticFACTORY OEM SERVICE PROCEDURE

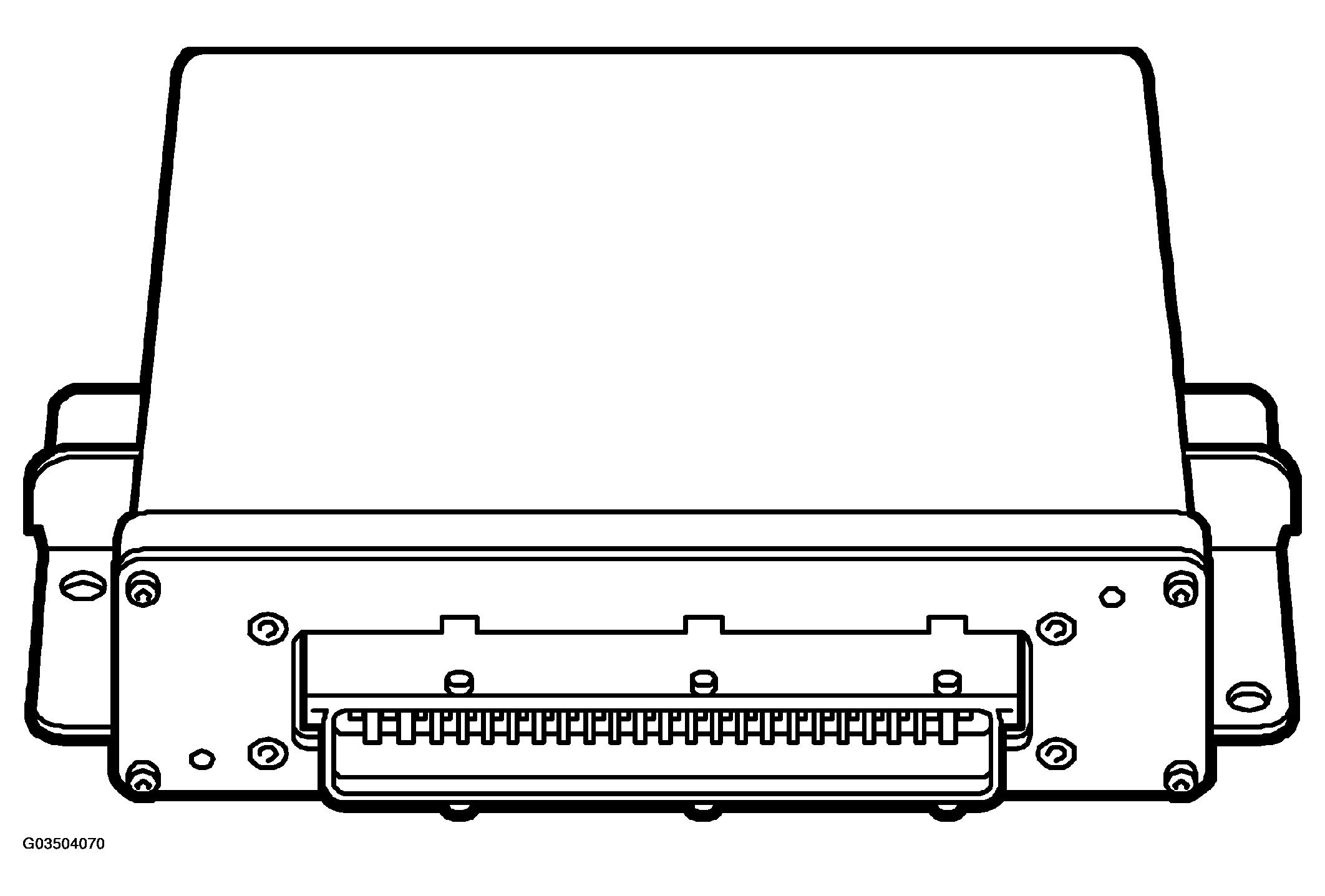

Trionic T7 control module (430b/589b)
TECHNICAL DATA - TRIONIC T7 CONTROL MODULE (430B/589B)
| Location | On right-hand side of cabin behind side trim under A-pillar. | |
| No. of pins | 70 | |
| Power supply +30 : | Pin no. | 23 |
| Power supply +15 : | Pin no. | 43 |
| Power supply from main relay : | Pin no. | 1 |
| Power ground : | Pin no. | 25, 47 and 62 |
| P-bus + : | Pin no. | 66 |
| P-bus - : | Pin no. | 19 |
